Superior connections for quality digital video performance.

Manhattan Mini DisplayPort 1.2a to DVI Cables help deliver the brightest, most accurate colors and sharpest detail when connecting high-definition monitors, LCD and plasma displays, digital projectors and other DVI- or DP-equipped display devices. Manhattan Mini DisplayPort 1.2a to DVI Cables are engineered and constructed of quality materials to deliver dependable signals in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced distortion.

Features:

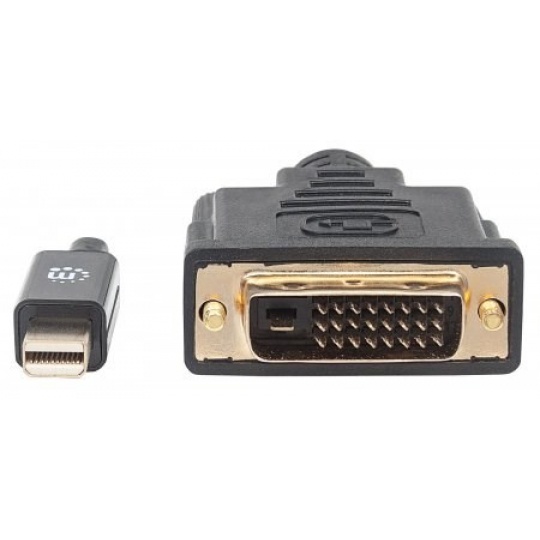

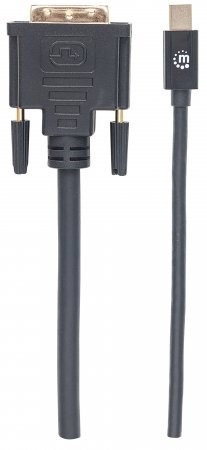

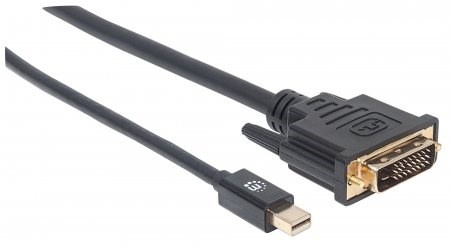

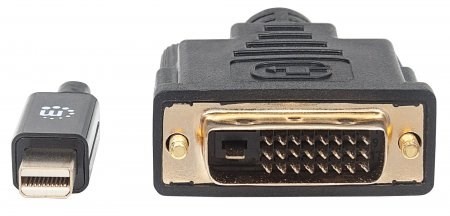

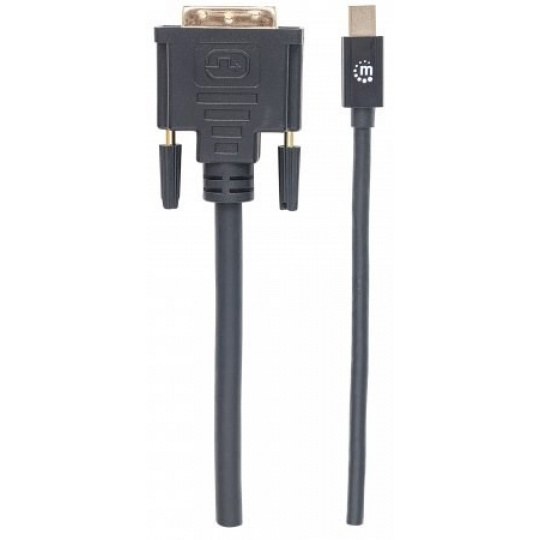

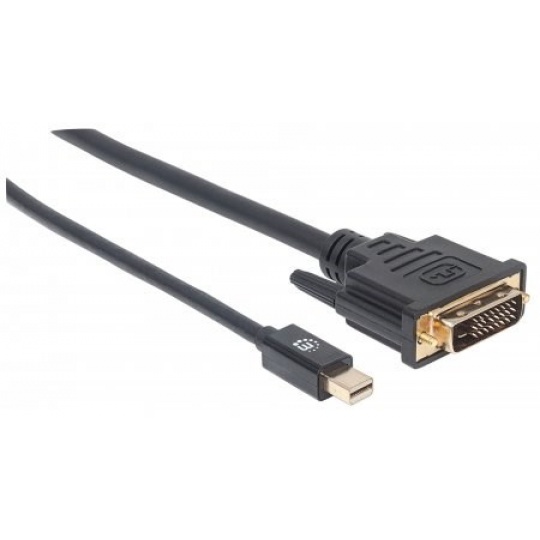

Mini DisplayPort 1.2a male to DVI-D 24+1 male gold-plated connections
Converts from Mini DisplayPort (DP, DP++) source to DVI-D monitor, projector or other display
Supports existing HD (720p, 1080i and 1080p@60Hz), enhanced (480p) and standard (NTSC or PAL) video formats
Connect to monitor, projector or other display with Extended- or Mirrored-Display modes
Lifetime Warranty

Specifications:

Standards and Certifications
UL 20276
DisplayPort 1.2a

General
Input speed: 1.62/2.7Gbps
Resolution: 1080@60Hz
HDCP/EDID support
Passive cable

Connectors
Mini DisplayPort (DP) male
DVI-D 24+1-pin male
Gold-plated contacts
Molded PVC boot
Built-in strain relief
Shielded

Cable
28 AWG
Shielded
Current rating: 0.5 ADC
Withstanding voltage: 300 VDC
Insulation resistance: 10 M?
Conductive resistance: 5 ?
Thermal plastic casing

Physical
Length: 1.8 m (6 ft.)
Weight: 4 g (0.9 oz.)

Operating Environment
Operation Temperature: 0 - 50°C (32 - 122°F)
Storage Temperature: -10 - 80°C (14 - 176°F)
Humidity (noncondensing): 0 - 96%

Package Contents

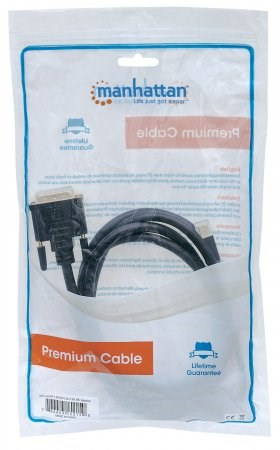

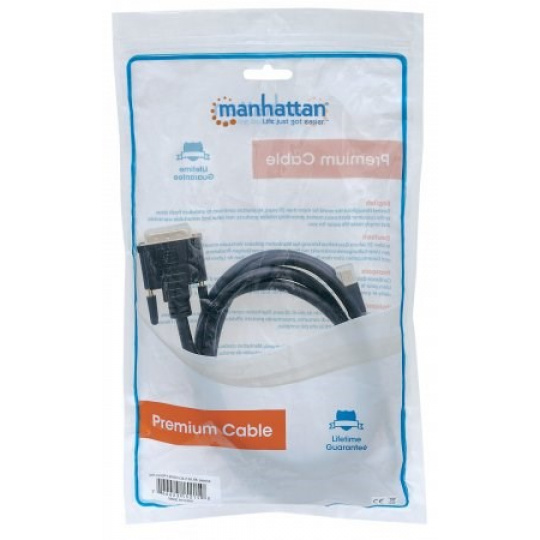

Mini DisplayPort 1.2a to DVI Cable
