Eaton 9PX 5000i RT3U Netpack, ON-LINE, UPS 5000VA, LCD G2
Popis a parametry
Eaton 9PX 5000i RT3U Netpack, ON-LINE, UPS 5000VA, LCD G2
General specifications
| Product Name | Eaton 9PX Gen2 UPS |
| Catalog Number | 9PX5KIRTNG2 |
| EAN | 3553340710551 |
| Product Length/Depth | 684 mm |
| Product Height | 130 mm |
| Product Width | 440 mm |
| Product Weight | 43.1 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM |
| Model Code | Eaton 9PX 5000i RT3U Netpack G2 |
Baterie
| Battery type | Sealed, lead-acid |

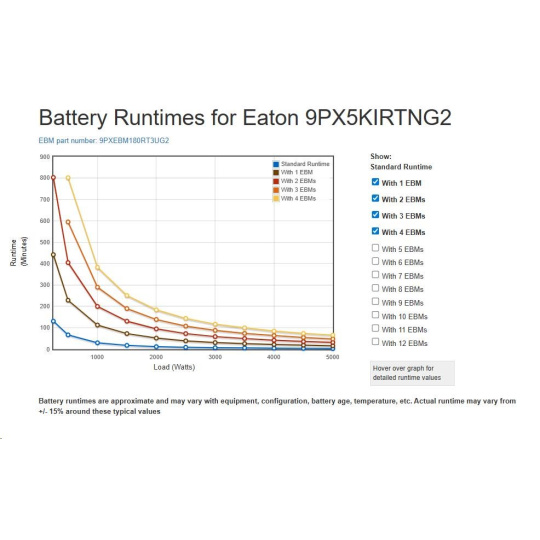

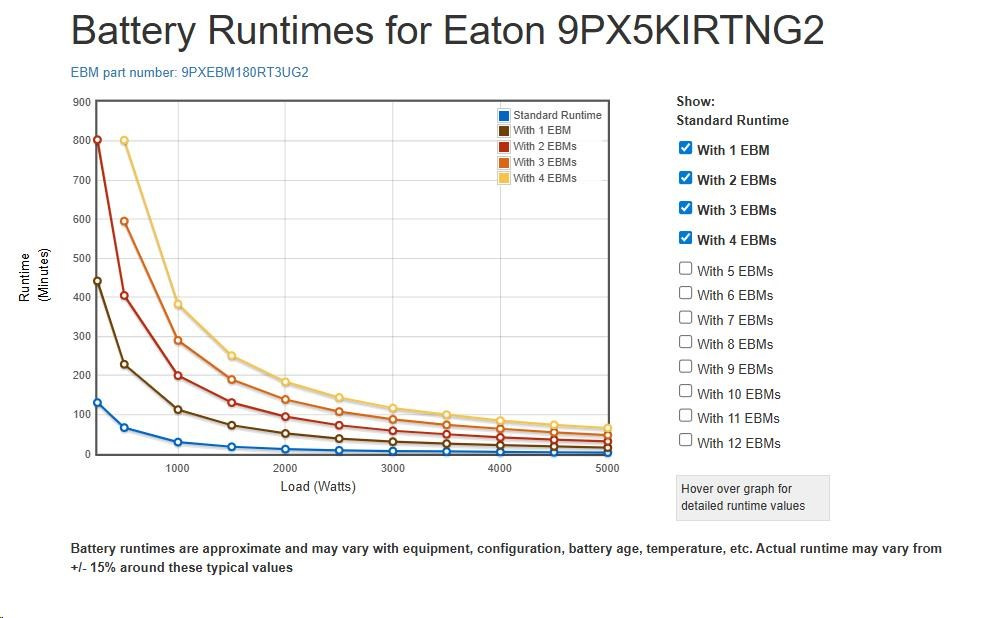

| Runtime graph | |
| Battery quantity | 15 |
| Battery management |
|
| Battery rating | 12 V / 5 Ah |
| Extended battery capability | Yes |
Výstup

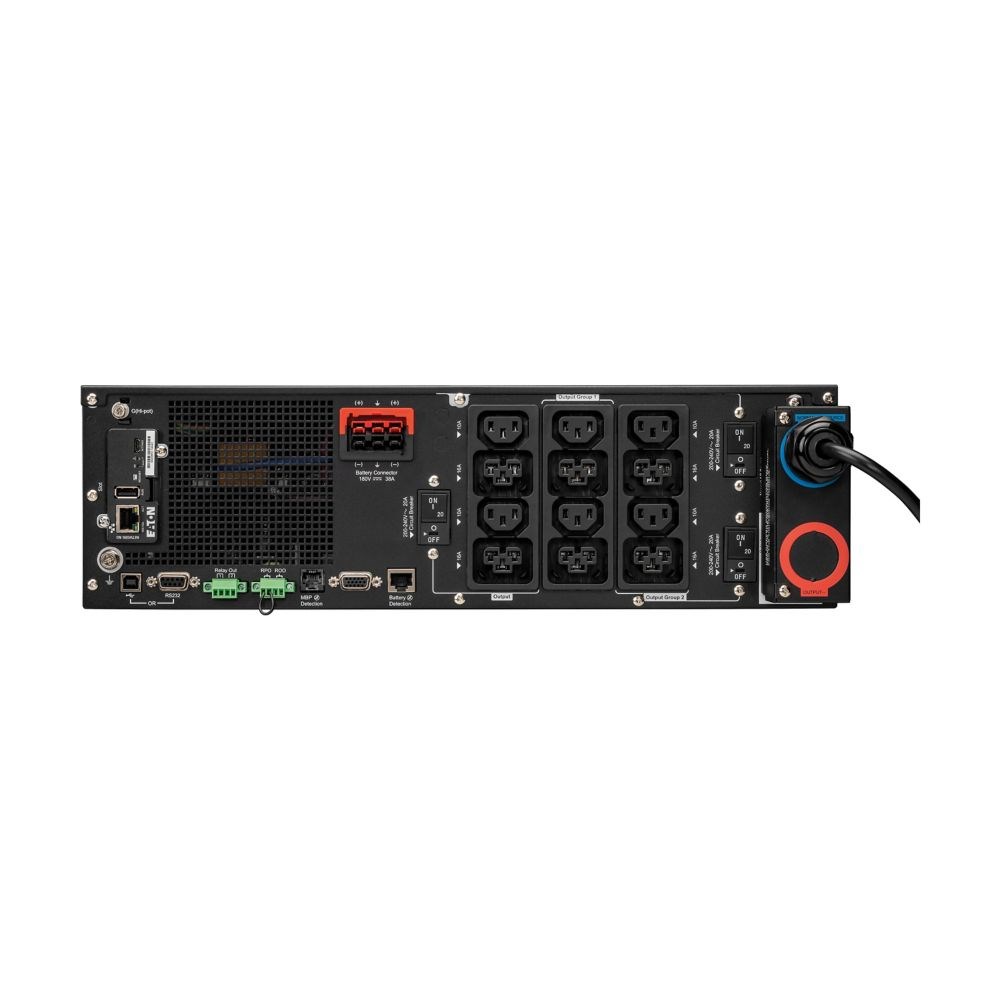

| Receptacle | (6) C13, (6) C39, Hardwired |
| Voltage | 230V |
| VA rating | 5000 VA |
| Wattage | 5000W |
| Output power factor | 1 |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Output waveform | Sine wave |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Voltage distortion output (linear load) - max | 1 |
| Feed type | 1 |
| Topology | Online/Double-conversion |
Vstup
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input voltage range | 176-276 V (100-276 V with derating) |
| Input frequency range | 40-70 Hz |
Novinky a informační sdělení
| Includes network card | Yes |
| Communication |
|
| Ethernet interface | Yes |
| User interface | Multilingual graphical LCD display |
| Potential free switch contact | Yes |
| Expansion slots | One slot, network card included |
| Software compatibility | Eaton Brlightlayer Software suite |
| Type of interface | Other |
Prostředí
| Altitude | 3000 m |
| Noise level | <40 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-95% non-condensing |
Další specifikace
| Construction type | 482.6 mm (19 inch) device |
| Package contents |
|
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black/silver |
| Efficiency at max. load | 96.7 |
| Rack mounting kit | Yes |
| Hot swap power | No |
ParametryPorovnání
Počet výstupních zásuvek
10
Použití
Server
Použití
Data Center
Zdánlivý výkon VA
5000
Topologie
On-Line
Provedení
Tower/Rack
Fáze (Vstup/Výstup)
1:1
Komunikace
MNGMT karta
Možnosti
Prodloužení záložního času
Výška v Racku
3U
Typ výstupu
IEC 19
Typ výstupu
Svorkovnice
Typ výstupu
IEC 13
