TP-Link OMADA switch SL2428P (24x100Mb/s, 2xGbE, 2GbE/2xSFP combo, 24xPoE+, 250W)
Popis a parametry
TP-Link OMADA switch SL2428P (24x100Mb/s, 2xGbE, 2GbE/2xSFP combo, 24xPoE+, 250W)

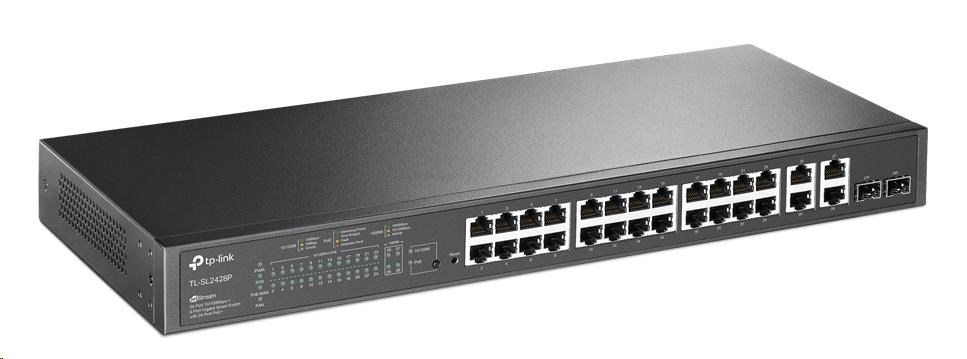

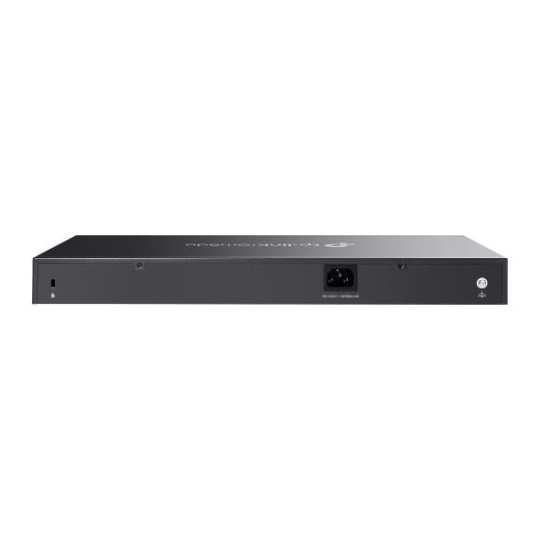

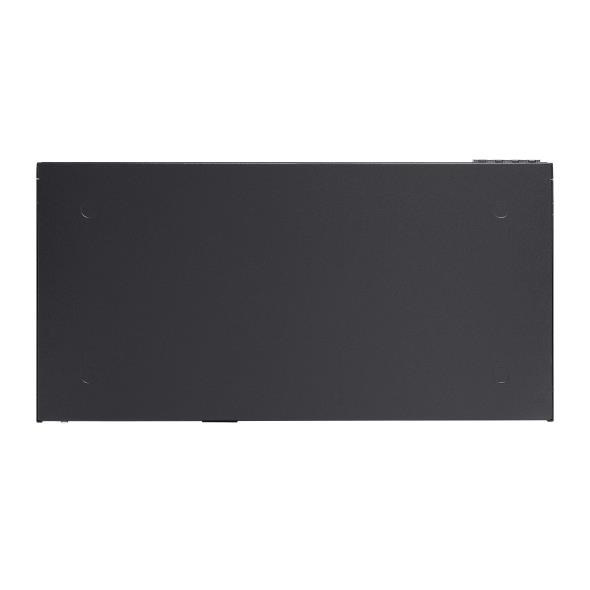

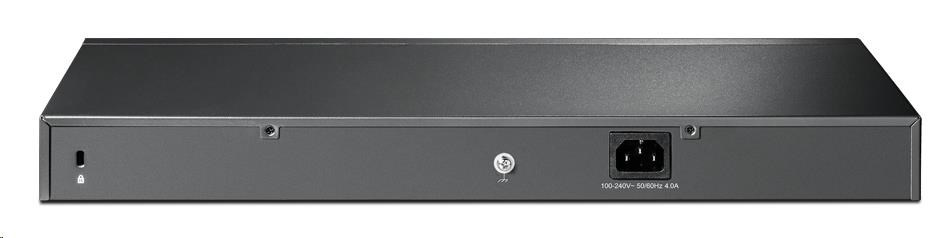

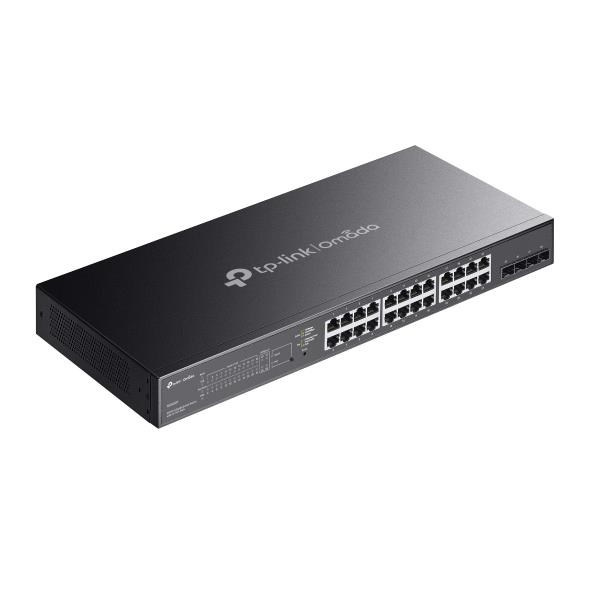

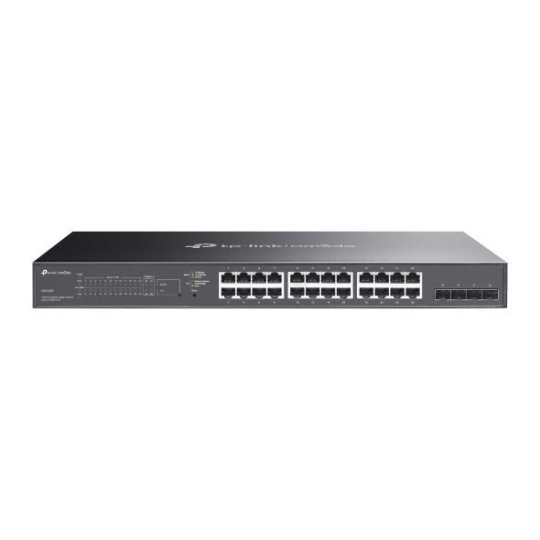

TP-Link OMADA switch SL2428P
24portový 10/100 Mb/s inteligentní switch JetStream se 4 gigabitovými porty a 24 porty PoE+
Inteligentní switch TP-Link TL-SL2428P je vybaven 24 porty RJ45 10/100 Mbit/s, 4 porty RJ45 10/100/1 000 Mbit/s a 2 kombinovanými gigabitovými SFP sloty. Všech 24 portů RJ45 10/100 Mbit/s podporuje standard 802.3at/af (PoE+) s celkovým rozpočtem napájení PoE 250 W* a užitečnými funkcemi řízení spotřeby PoE. Switch poskytuje vysoký výkon, technologii QoS na podnikové úrovni, užitečné strategie zabezpečení a bohaté funkce správy na 2. vrstvě.
- Obsahuje 24 portů PoE s celkovým rozpočtem napájení PoE 250 W* a užitečnými funkcemi řízení spotřeby PoE.
- Integrovaná strategie zabezpečení včetně 802.1Q VLAN, zabezpečení portů a ochrany proti zahlcení sítě (Storm Control) pomáhá zabezpečit investici do sítě LAN.
- Funkce L2/L3/L4 QoS a IGMP Snooping optimalizují výkon hlasových a video aplikací.
- Řízené režimy WEB/CLI, SNMP a RMON poskytují bohaté možnosti správy.
- Funkce Dual Firmware Image zvyšuje spolehlivost a dobu, po kterou je síť bez výpadků.
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/sl2428p/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| PoE Budget | 250 W |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in.(440*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 18.8 W (220 V / 50 Hz with no PD connected) 286.7 W (220 V / 50 Hz with 250 W PD connected) |
| Max Heat Dissipation | 64.1 BTU/h (with no PD connected) 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 12.8 Gbps |
| Packet Forwarding Rate | 9.5 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9216 Bytes |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/ DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Actions for flows - Mirror(to supported interface) - Redirect(to supported interface) - Rate Limit - QoS Remark • Storm Control - Multiple Control Modes(kbps/ratio/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation - static link aggregation - Up to 8 aggregation groups and up to 8 ports per group - 802.3ad LACP • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both - CPU Mirroring • Device Link Detect Protocol(DLDP) |
| L2 Multicast | • 512 IPv4,IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication - Static Group Config • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Multicast VLAN Registration • Multicast Filtering |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery(MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
| Security | • AAA • 802.1X - Port based authentication - MAC(Host) based authentication - Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Gurad - 253 Entries - Source IP+Source MAC • IPv6 Source Gurad - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS1.0 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| Management | • Web-based GUI and CLI management • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • System Log • 802.1ab LLDP/ LLDP-MED |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL2428P Power Cord Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~50°C (32°F~122°F); Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
.
ParametryPorovnání
Maximální počet portů
28
Provedení
Rack mounted 19"
Technologie
Fast Ethernet + Gigabit uplink
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
PoE budget (W)
250
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Počet portů Combo
2
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3af
Počet portů LAN
24
Ventilátor
Ne
Počet PoE+ portů
24
Přenosová rychlost LAN (Mb/s)
100
Počet portů LAN
24
Přenosová rychlost LAN (Mb/s)
100
Maximální počet portů
28
Počet portů Combo
2
PoE budget (W)
250
Počet PoE+ portů
24
