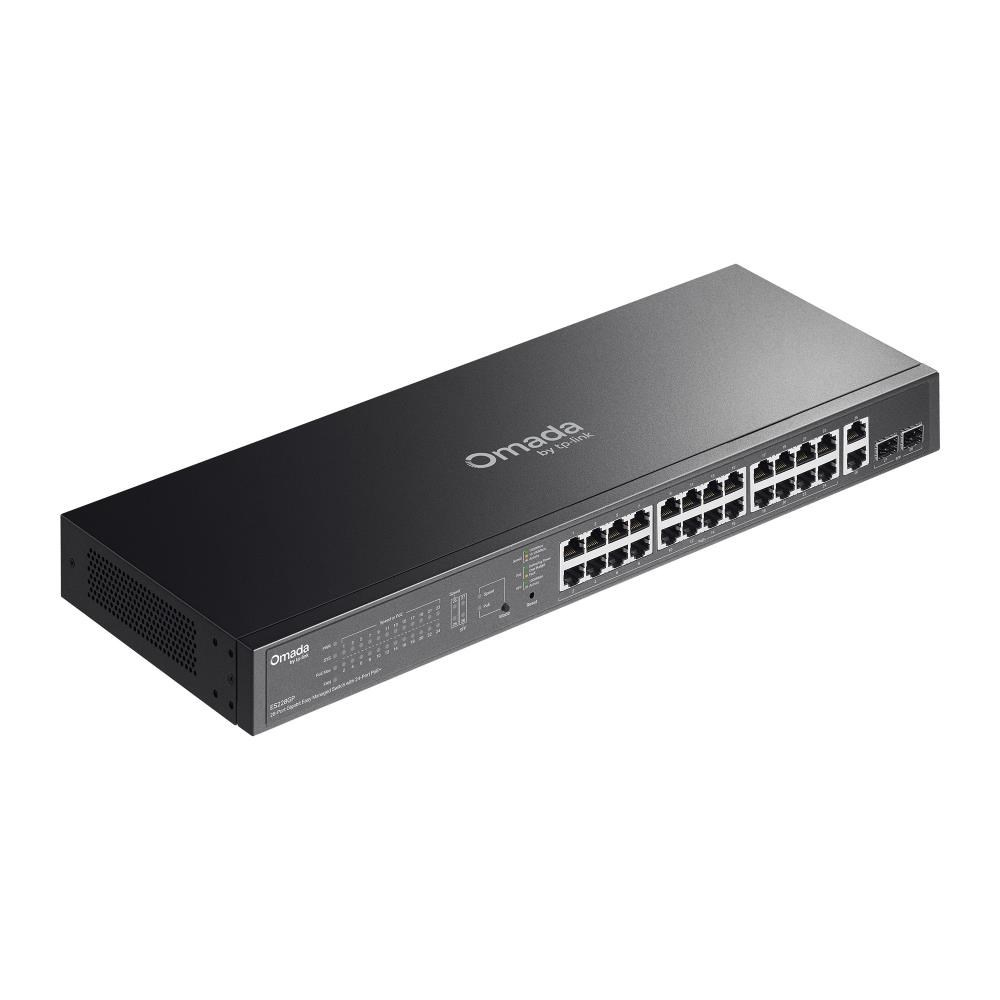

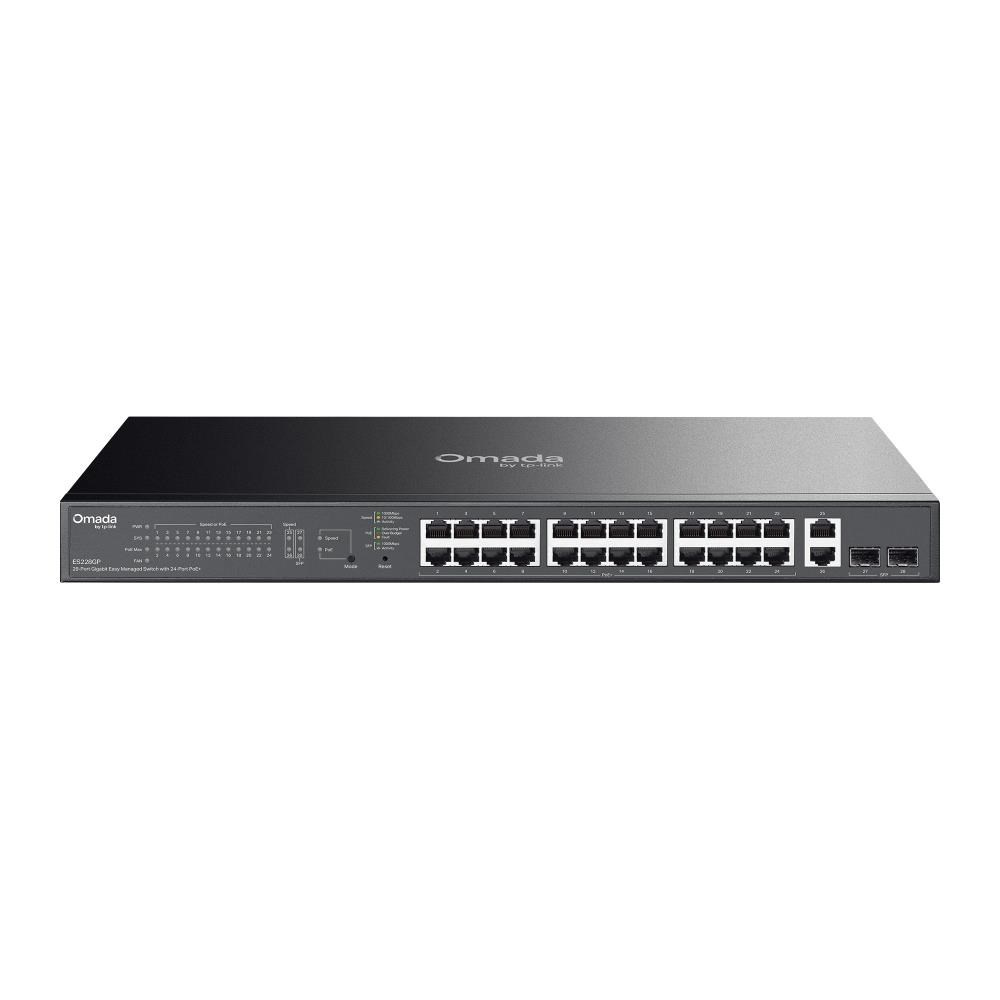

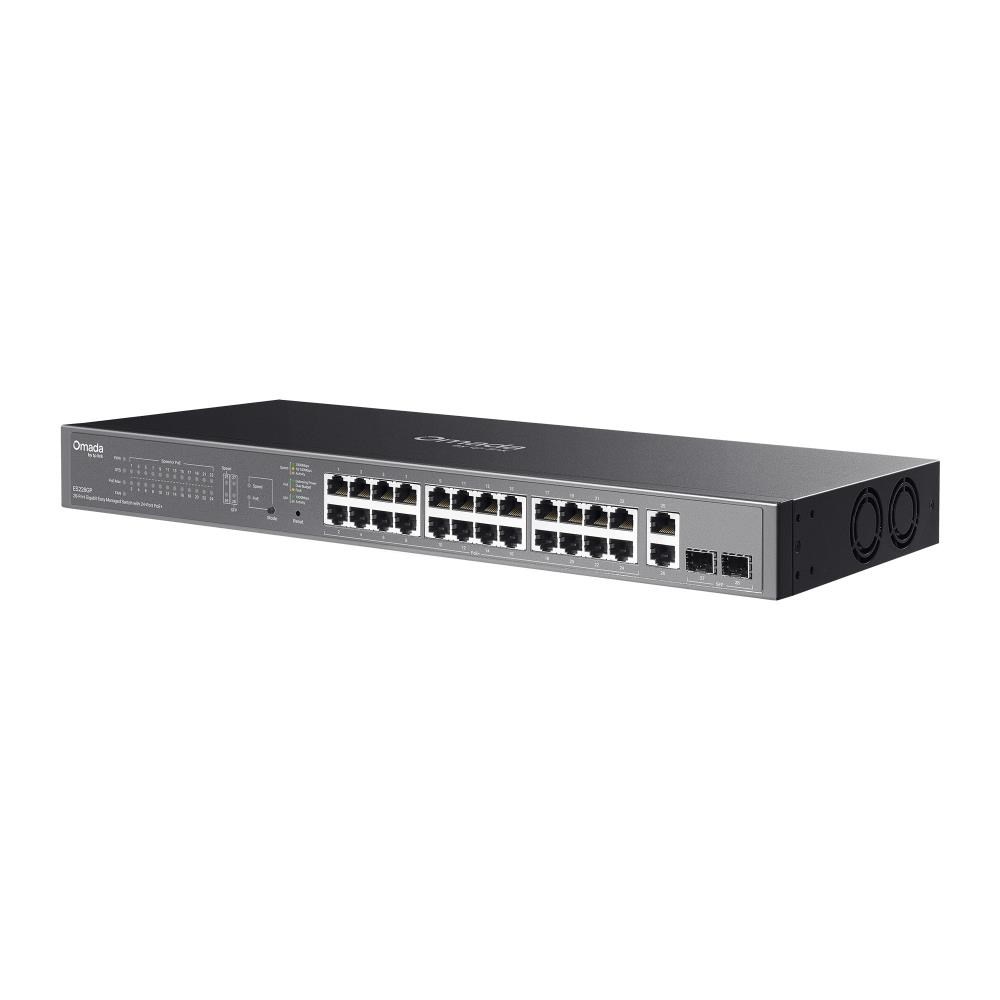

TP-Link OMADA switch ES228GP (26xGbE,2xSFP,24xPoE+,250W)
TP-Link OMADA switch ES228GP
Omada 28portový gigabitový easy managed switch s 24 porty PoE+
- 26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilních se standardy 802.3af/at)
- 2× gigabitový SFP port
- Napájecí rozpočet 250 W, až 30 W pro každý PoE port*
- Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pokročilých funkcí
- Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
- Až 250 m (820 ft) PoE**, vzdálený restart kamery†, QoS a izolace portů pro spolehlivé sítě dohledu
- Automatická prevence smyček, VLAN a IGMP Snooping
- Odolné kovové pouzdro a možnost umístění na stůl nebo montáže na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es228gp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | Rackmount |
| Physical Security Lock | ? |
| Power Supply | 100–240V AC, 50/60Hz 4.0A |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES228GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5?~45? (23?~113?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
ParametryPorovnání
Provedení
Rack mounted 19"
Technologie
Gigabit ethernet + Gigabit optika
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Funkce
PoE (Power over ethernet)
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Ventilátor
Ano
Počet portů LAN
26
Maximální počet portů
26
Počet SFP portů
2
PoE budget (W)
250
Počet PoE+ portů
24
