TP-Link OMADA průmyslový switch IES206GPP (4xGbE,1xGbE/SFPcombo,1xSFP,3xPoE+,1xPoE++,120W,DIN,IP40,fanless)
Popis a parametry
TP-Link OMADA průmyslový switch IES206GPP (4xGbE,1xGbE/SFPcombo,1xSFP,3xPoE+,1xPoE++,120W,DIN,IP40,fanless)

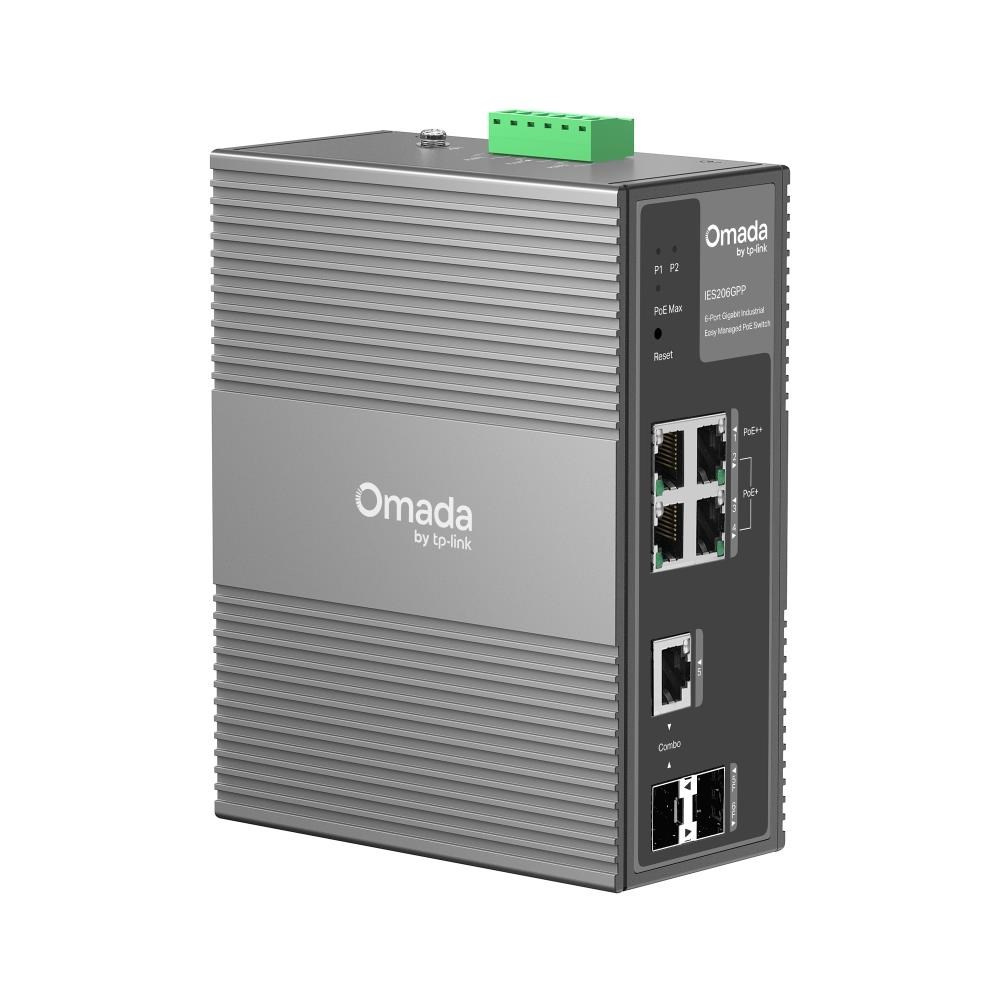

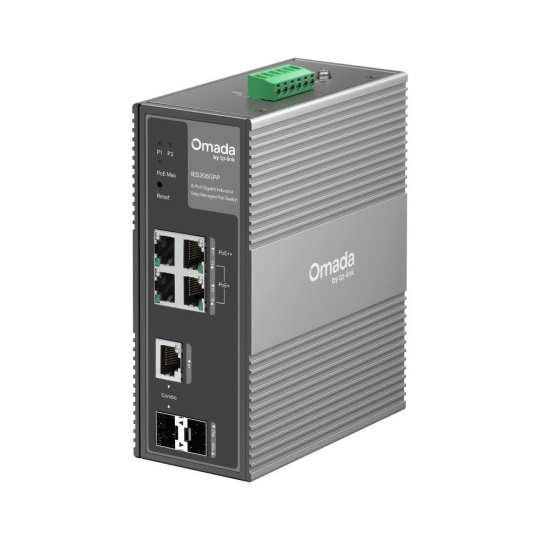

TP-Link OMADA průmyslový switch IES206GPP
Omada 6portový gigabitový průmyslový Easy Managed Switch s 3 porty PoE+ a 1 portem PoE++
- 4× gigabitové RJ45 porty (1× PoE++, 3× PoE+)
- 1× gigabitový kombinovaný RJ45/SFP slot, 1× gigabitový SFP slot
- Napájecí rozpočet 120 W* s až 60 W pro PoE++ port
- Profesionální průmyslový design: provozní teplota -40~75°C, ochrana proti přepětí 6 kV a duální napájení 1+1
- Bohaté funkce: PoE až do vzdálenosti 250 m (820 ft)**, VLAN, QoS a STP/RSTP
- Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
- Odolné hliníkové pouzdro s krytím IP40 a možnost montáže na DIN lištu nebo na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies206gpp
Technické specifikace
| HARDWARE FEATURES | |

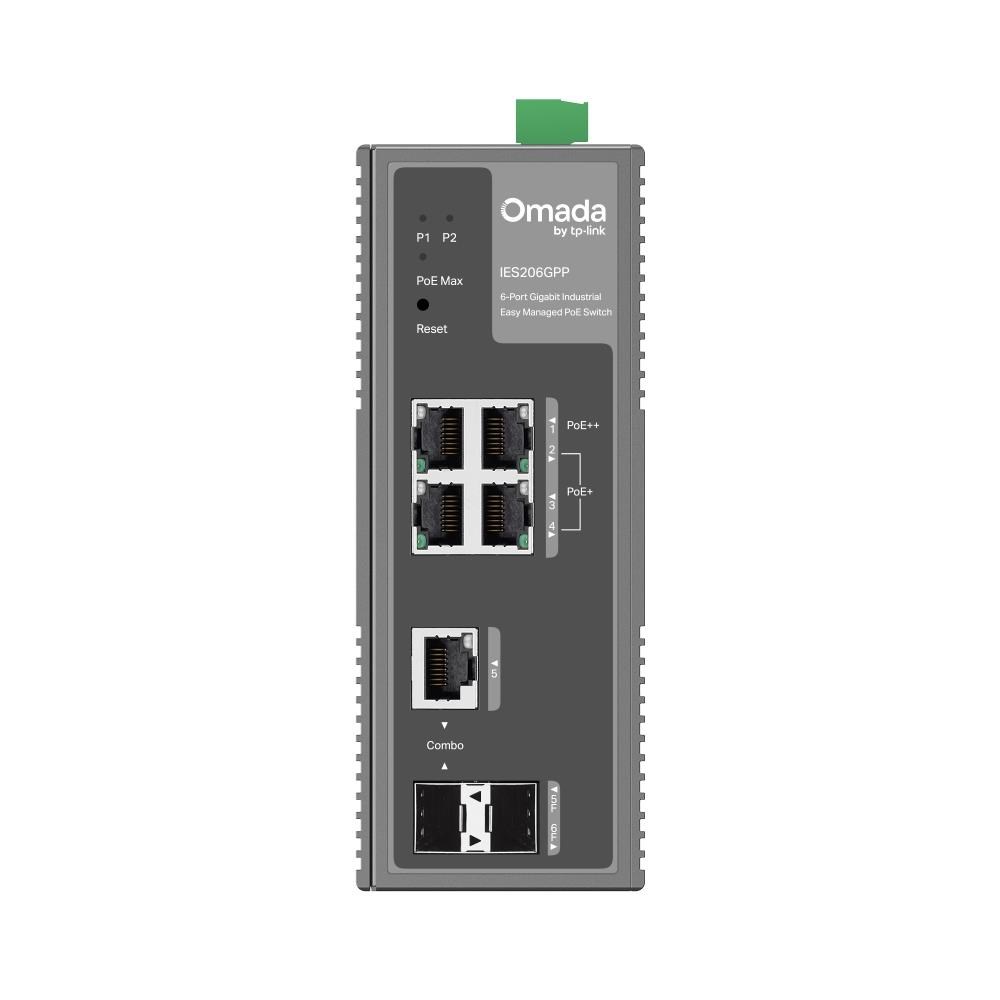

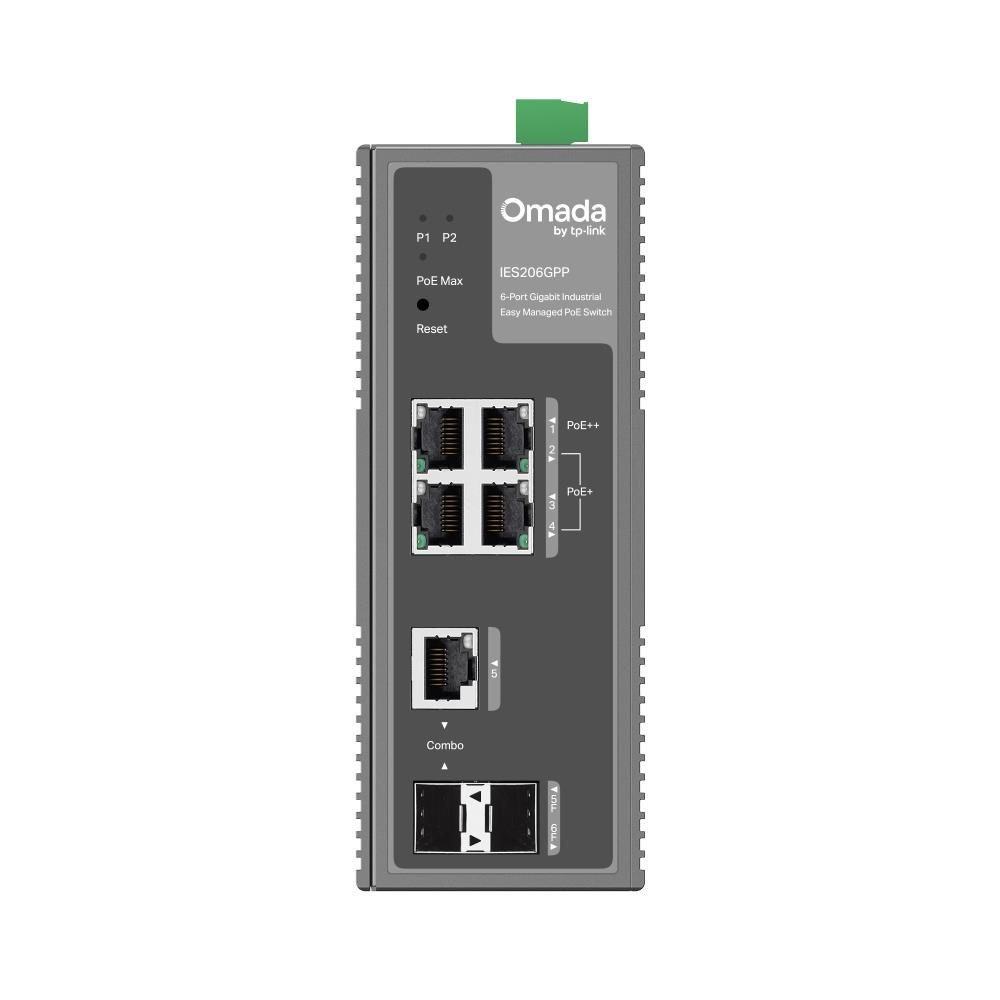

| Interface | • 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

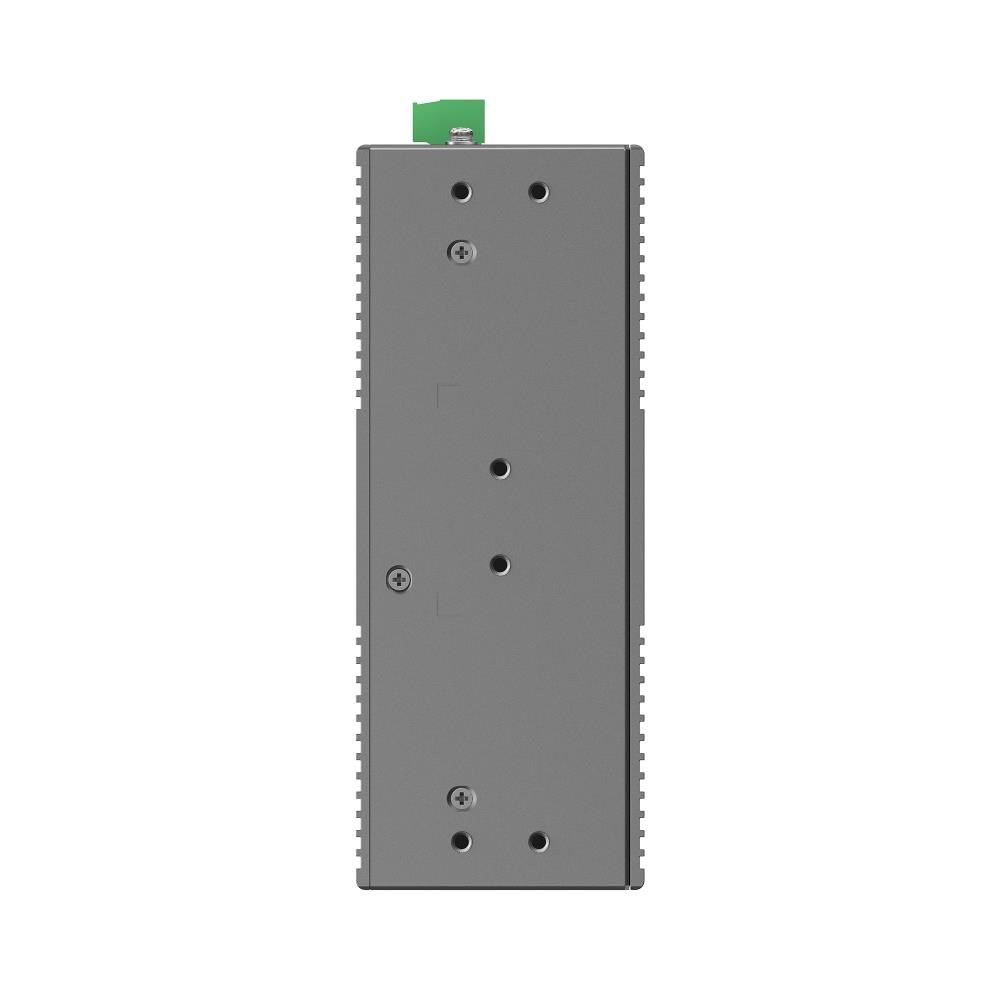

| Installation | • DIN-rail mounting • Wall mounting |
| Physical Security Lock | ? |

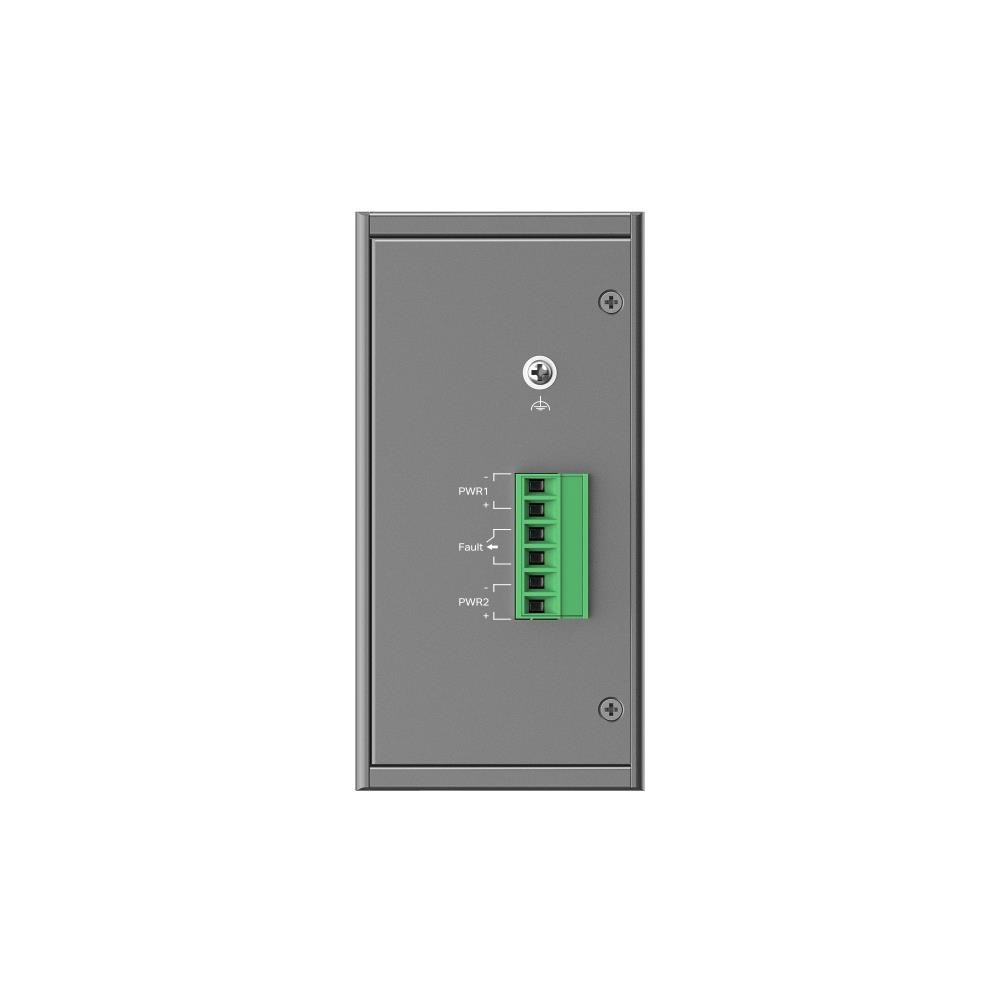

| Power Supply | 12-57V 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A) |
| Dimensions ( W x D x H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| PERFORMANCE | |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | • Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
ParametryPorovnání
Provedení
DIN Rail
Technologie
Gigabit ethernet + Gigabit optika
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Vlastnosti switche
Funkce POE po portech
Funkce
PoE (Power over ethernet)
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Podporované standardy PoE
802.3bt
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Ventilátor
Ne
Počet portů LAN
6
Přenosová rychlost LAN (Mb/s)
1000
Maximální počet portů
6
Počet PoE Out portů
4
Počet portů Combo
1
Počet SFP portů
2
PoE budget (W)
120
Počet PoE+ portů
3
Počet PoE++ portů
1
TP-Link OMADA průmyslový switch IES206GPP (4xGbE,1xGbE/SFPcombo,1xSFP,3xPoE+,1xPoE++,120W,DIN,IP40,fanless)
