TP-Link OMADA JetStream switch SG2210MP (8xGbE, 2xSFP, 8xPoE+, 150W)
Popis a parametry
TP-Link OMADA JetStream switch SG2210MP (8xGbE, 2xSFP, 8xPoE+, 150W)
TP-Link JetStream switch SG2210MP
10portový gigabitový inteligentní switch JetStream s 8 porty PoE+
- Příkon přes PoE až 150 W: 8 portů napájených přes PoE+ vyhovující standardu 802.3at/ af s celkovým napájením až 150W.
- Plné gigabitové porty: 8 gigabitových portů s napájením přes PoE + a 2 gigabitové SFP sloty poskytují vysokorychlostní připojení.
- Integrováno do Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralizovaná správa cloudů a inteligentní monitorování.
- Centralizovaná správa: Přistup do cloudu a aplikace Omada pro mimořádné pohodlí a snadnou správu.
- Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, ověřování dosahu, a více.
- Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.
Více informací o technologii TP-Link PoE >
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-switch/tl-sg2210mp/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |

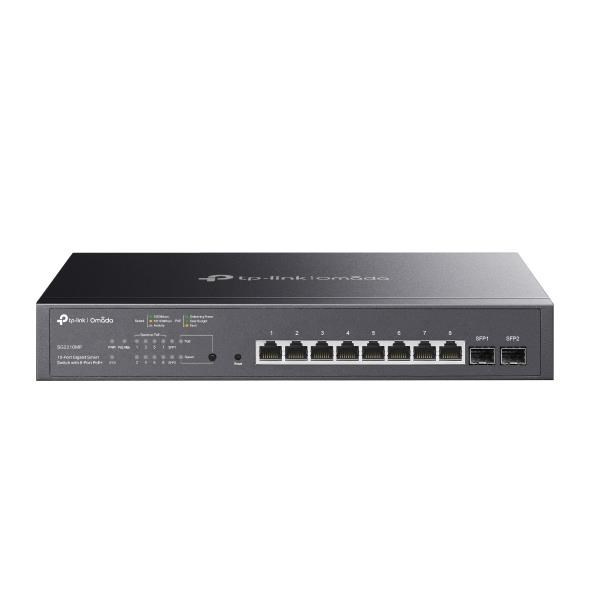

| Interface | • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots |
| Network Media | • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m) • 100BASE-FX: MMF, SMF • 1000BASE-X: MMF, SMF |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |

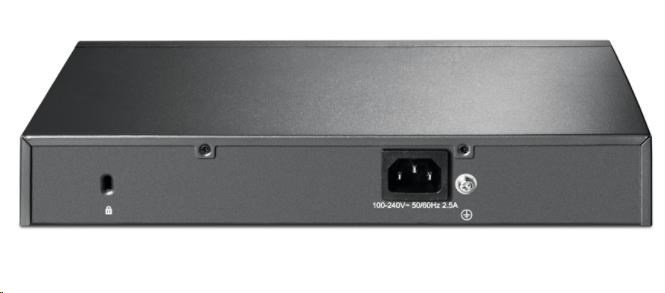

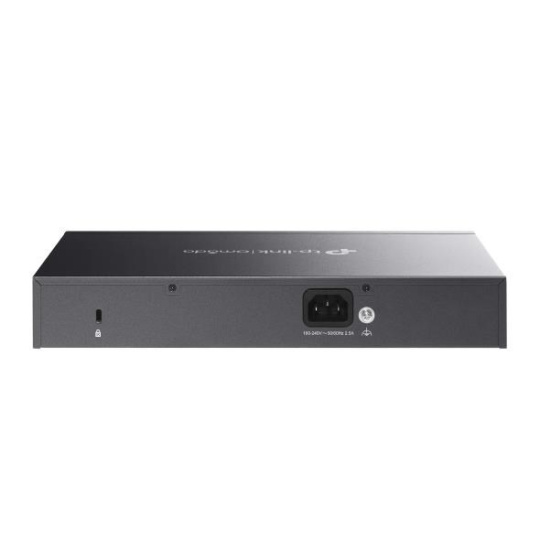

| Power Supply | 100-240V AC, 50/60Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 150 W |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Mounting | Rackmount/Desktop |
| Max Power Consumption | • 12.2 W (110 V / 60 Hz with no PD connected) • 173.9 W (110 V / 60 Hz with 150 W PD connected) |
| Max Heat Dissipation | • 41.63 BTU/h (with no PD connected) • 539.35 BTU/h (with 150 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • DHCP Relay - DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile) |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2) |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2210MP • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Maximální počet portů
10
Provedení
Rack mounted 19"
Provedení
Desktop
Technologie
Gigabit Ethernet 1000Mbps
Management
SNMP/RMON
Management
Web
Vlastnosti switche
Funkce POE po portech
PoE budget (W)
150
Přenosová rychlost LAN (Mb/s)
1000
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
PoE (Power over ethernet)
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Počet SFP portů
2
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Počet portů LAN
8
Ventilátor
Ano
Počet PoE+ portů
8
Počet portů LAN
8
Maximální počet portů
10
Počet SFP portů
2
PoE budget (W)
150
Počet PoE+ portů
8
