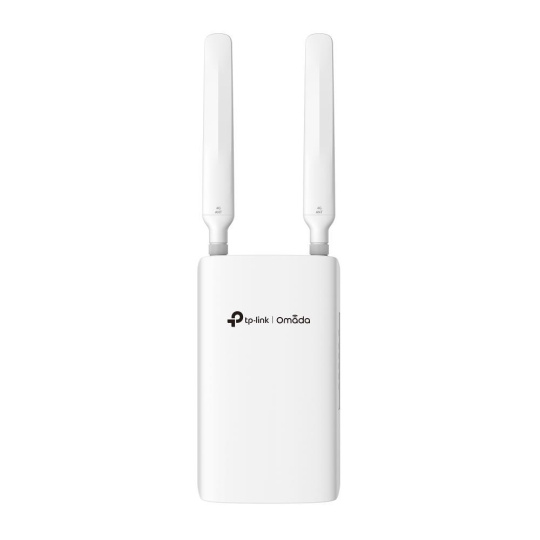

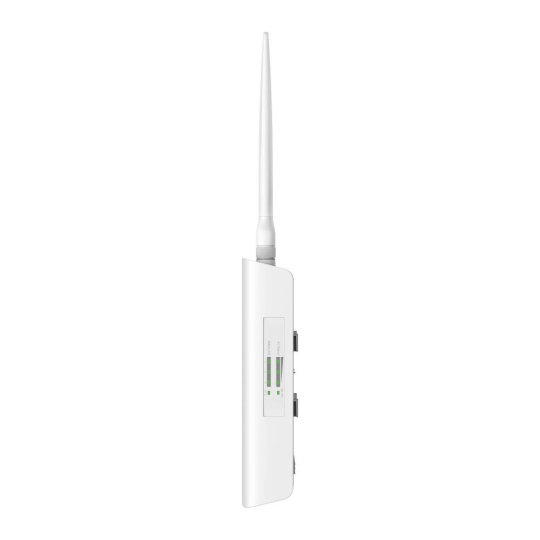

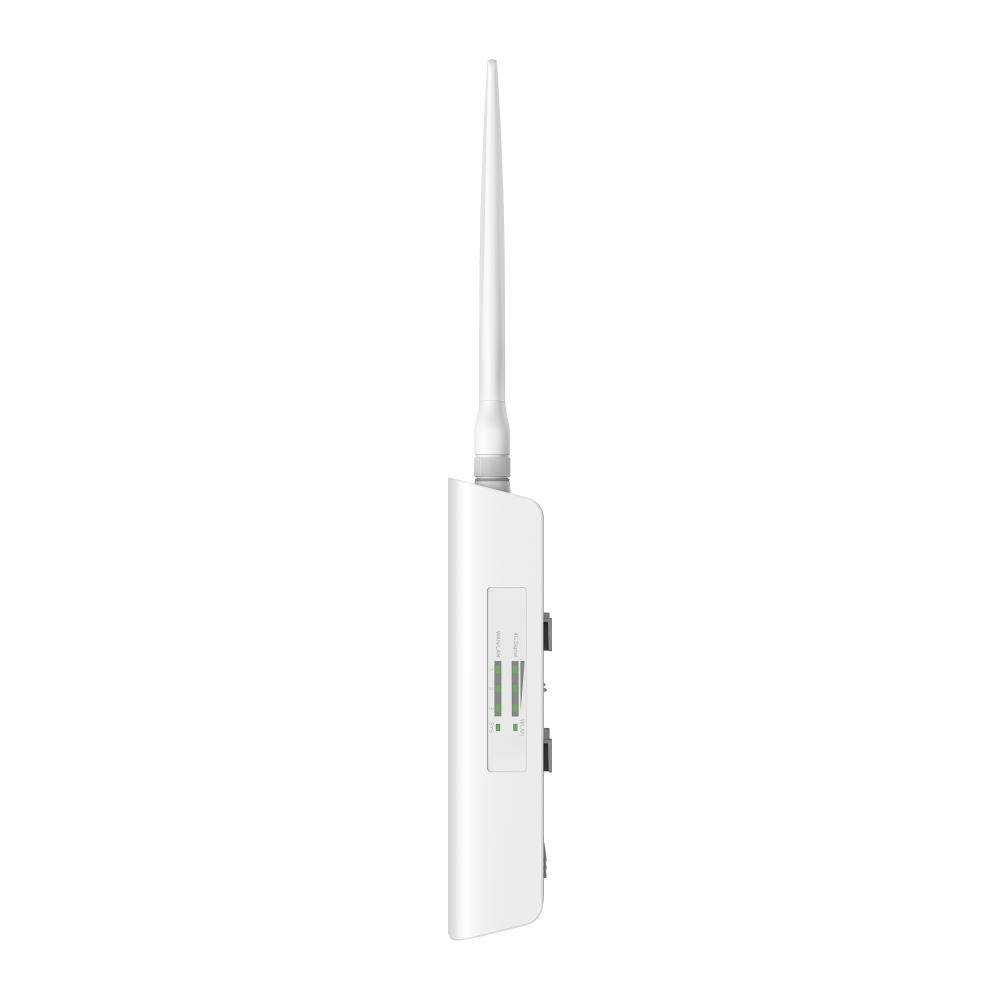

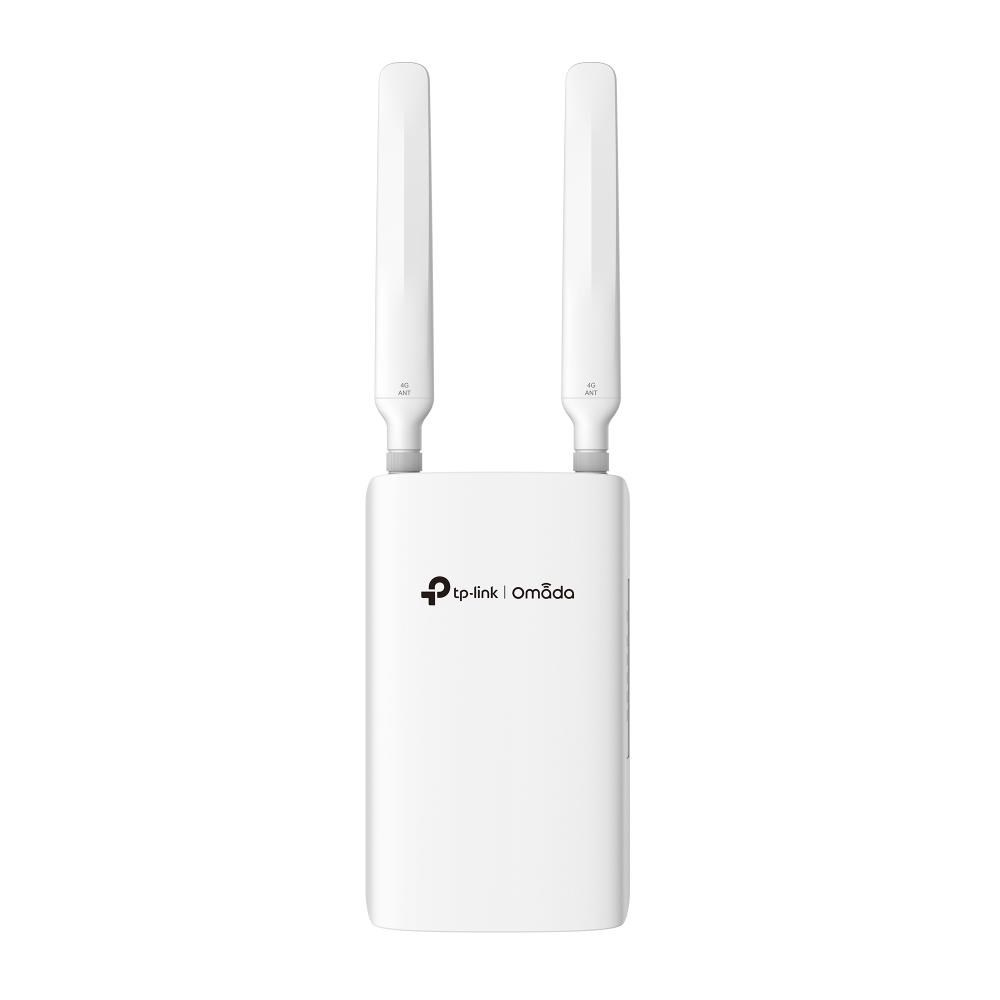

TP-Link ER703WP-4G-Outdoor OMADA VPN 4G+Cat6 venkovní router (AX3000,3xGbEWAN/LAN,1xPoE+,2xPoE-out,1xnanoSIM,IP55)
Popis a parametry
TP-Link ER703WP-4G-Outdoor OMADA VPN 4G+Cat6 venkovní router (AX3000,3xGbEWAN/LAN,1xPoE+,2xPoE-out,1xnanoSIM,IP55)
TP-Link OMADA ER703WP-4G-Outdoor
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
- 4G+ Cat6 s rychlostí až 300 Mb/s
- AX3000 Wi-Fi 6 s 2402 Mb/s na 5 GHz a 574 Mb/s na 2.4 GHz

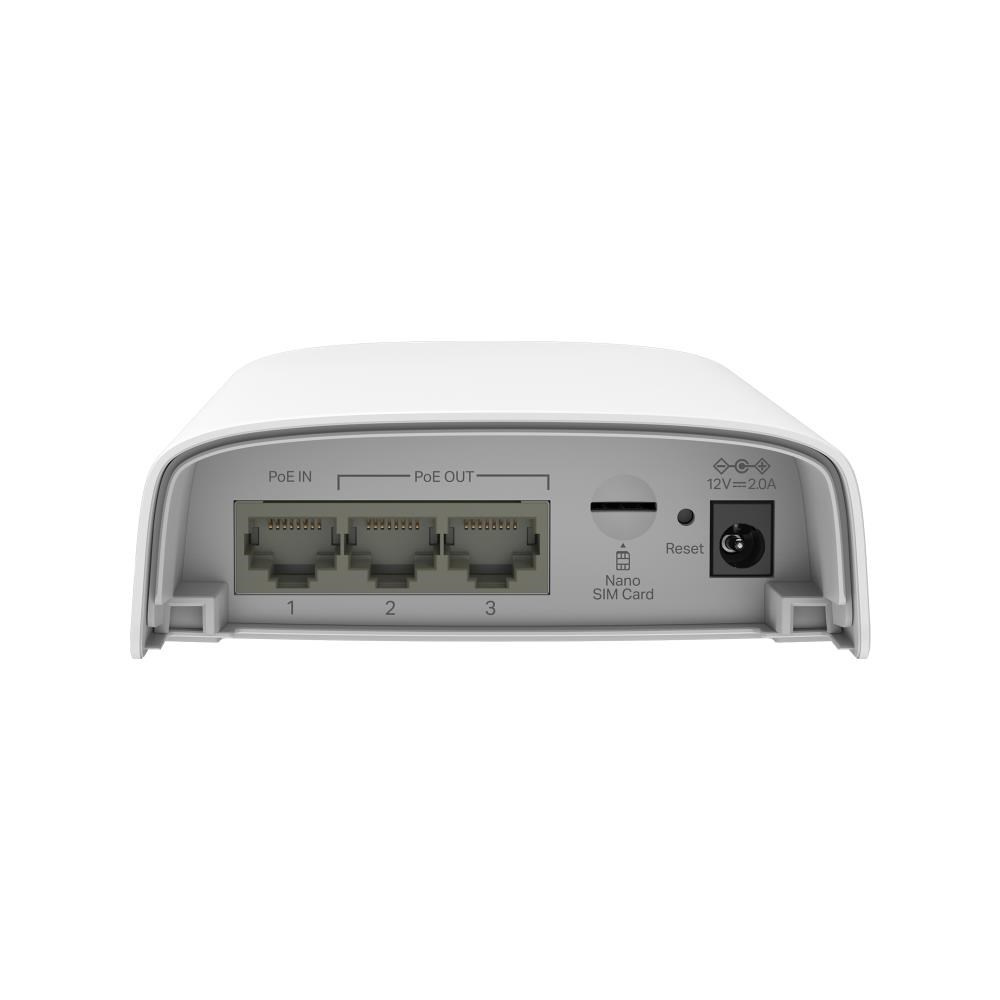

- 3 × Gigabitové WAN/LAN porty (2 × PoE Out, 1 × PoE In)
- 1 × Slot pro Nano SIM kartu
- Napájení přes 802.3at/bt PoE nebo 12V/2A DC
- Automatická záloha WAN mezi 4G a Ethernetem s vyvažováním zátěže
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
- Centralizovaná správa
- Odolnost vůči povětrnostním vlivům (IP55)
Learn more about Omada Cloud SDN
https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er703wp-4g-outdoor/>
Technické specifikace
| 4G | |
| Network Type | LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9 00/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps; • Uplink: 50 Mbps |
| SECURITY | |
| DPI | Application control via DPI / Updated app library |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering • URL Filtering • Web Security |
| ARP Inspection | • Sending GARP Packets • ARP Scanning • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 3 Gigabit WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 802.3at/bt PoE; 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Dimensions ( W x D x H ) | 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas • LTE: Two 4.0dBi omnidirectional detachable antennas |

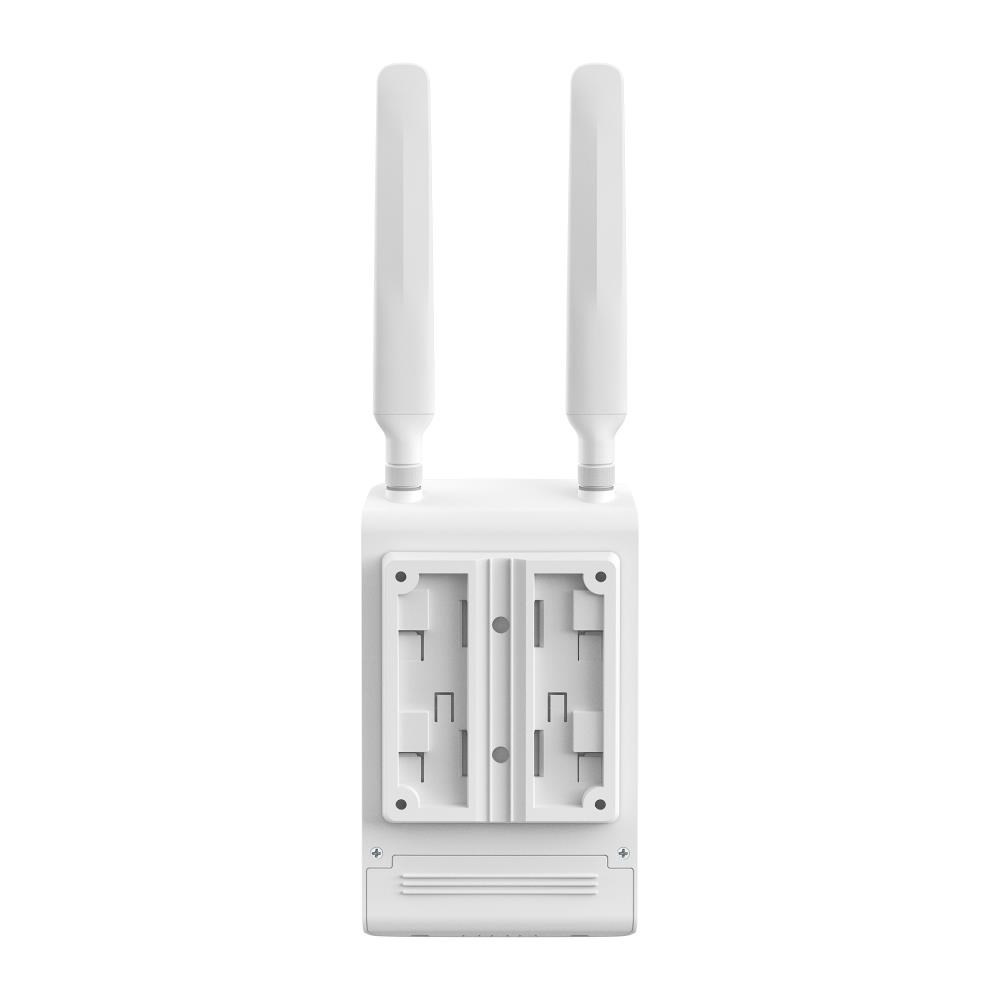

| Mounting | Pole/Wall-Mounting |
| Max Power Consumption | POE:62.9W max @ 220V/50Hz 25? DC: 16.6W max @ 220V/50Hz 25? |
| PERFORMANCE | |
| DPI Throughput | • TCP: 1131 Mbps • UDP: 974 Mbps |
| GRE | • Unencrypted: 450.3Mbps • Encrypted: 277.6Mbps |
| WireGuard VPN | 462.8Mbps |
| Concurrent Session | 120 |
| New Sessions /Second | 3,8 |
| NAT (Static IP) | 945.9Mbps / 950.2Mbps |
| NAT(DHCP) | 947.3Mbps / 949.4Mbps |
| NAT(PPPoE) | 916.9Mbps / 946.3Mbps |
| NAT (L2TP) | 878.9Mbps / 778.9Mbps |
| NAT (PPTP) | 852.2Mbps / 775.9Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 568.3Mbps • ESP-SHA256-AES256: 559.8Mbps • ESP-SHA384-AES256: 565.6Mbps • ESP-SHA512-AES256: 550.0 Mbps |
| OpenVPN | 85.1Mbps |
| L2TP VPN Throughput | • Unencrypted: 858.7Mbps • Encrypted: 467.0Mbps |
| PPTP VPN Throughput | • Unencrypted: 876.2Mbps • Encrypted: 182.6Mbps |
| SSL VPN Throughput | 86.6Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,489 pps |
| 1,518 Byte Packet forwarding rate | 81275 pps / 81275 pps |
| WIRELESS FEATURES | |
| Advanced Functions | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP • OSPF |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10) • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5) • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | • 20 Tunnels |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • LDAP |
| MANAGEMENT | |
| Omada App | Yes. |
| Centralized Management | • Omada Cloud Essentials • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER703WP-4G-Outdoor • Mounting Kits • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing |
ParametryPorovnání
USB port
Ne
Gigabit ethernet
Ano
Další vlastnosti
VLAN
Další vlastnosti
Podpora IPv6
Další vlastnosti
FTP server
Další vlastnosti
Management
Další vlastnosti
Podpora 4G/LTE
Další vlastnosti
PoE (Power over ethernet)
Další vlastnosti
Podpora Wi-Fi Mesh
Funkce
Router
Funkce
VPN
Podporované standardy
802.11a
Podporované standardy
802.11ac
Podporované standardy
802.11b
Podporované standardy
802.11g
Podporované standardy
802.11n
Podporované standardy
802.11ax
Slot na SIM kartu
Ano
Přenosová rychlost Wi-Fi (Mb/s)
2100 - 2700
Typ antény
Integrovaná
Počet portů LAN
3
