Product Information

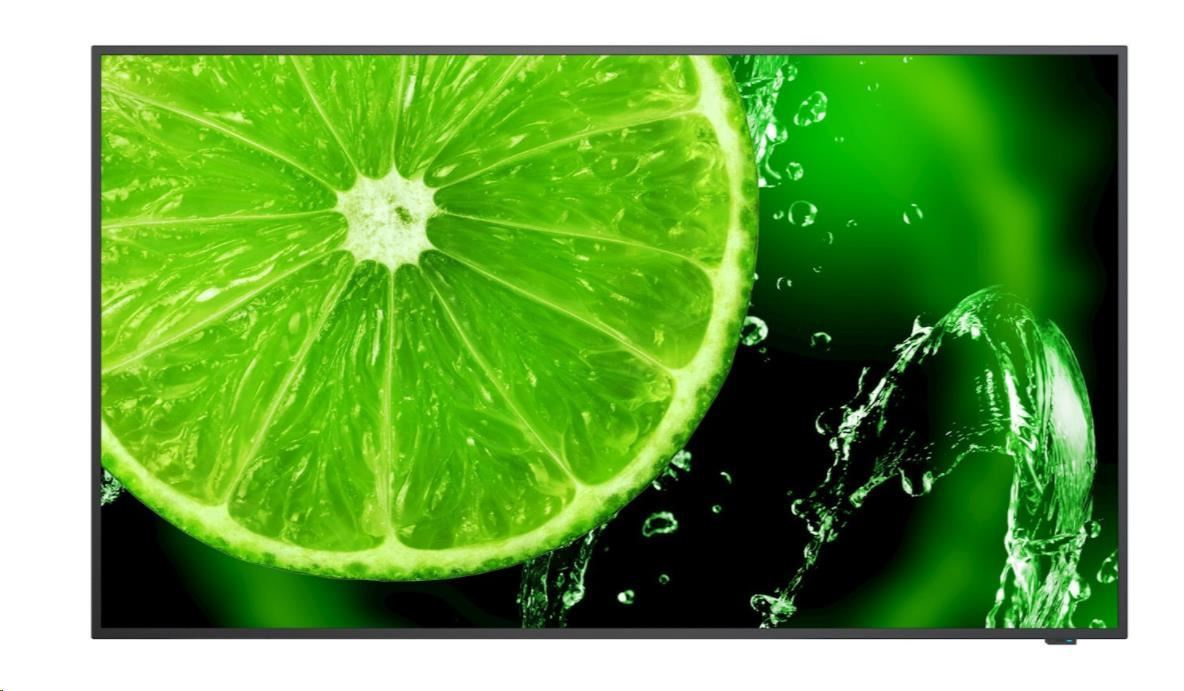

Product Name Sharp MultiSync® E509

Product Group LCD 50" Essential Large Format Display

Order Code 60006182

Display

Panel Technology VA with Direct LED backlights

Active Screen Area (W

x H) [mm]

1,096 x 616

Screen Size [inch/cm] 50 / 125.7

Aspect Ratio 16:9

Pixel Pitch [mm] 0.285

Brightness [cd/m˛] 350

Contrast Ratio (typ.) 4000:1

Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Colour Depth [bn] 1.07 (8bit + FRC)

Response Time (typ.)

[ms]

8

Panel Refresh Rate [Hz] 60

Haze Level [%] Pro (25)

Supported Orientation Landscape; Portrait

Resolution

Native Resolution 3840 x 2160

Supported Resolutions 1024 x 768;

1280 x 1024;

1280 x 720;

1280 x 800;

1280 x 960;

1360 x 768;

1400 x 1050;

1440 x 900;

1680 x 1050;

1920 x 1080;

1920 x 1200;

3840 x 2160;

4096 x 2160;

640 x 480;

720 x 400;

720 x 480;

720 x 576

Synchronisation Rate

Horizontal Frequency

[kHz]

31.5 - 135

Vertical Frequency [Hz] 24 - 75

Connectivity

Input Video Digital 1 x USB-C (with HDCP, 15 W); 2 x HDMI

Input Audio Digital 1x USB-C; 2 x HDMI

Input Control 1 x LAN 100Mbit; 1 x RS232

Input Data 1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external

devices)

Output Audio Analogue 1 x 3,5 mm jack

Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input

Electrical

Power Consumption

[W]

99 shipping

Power Savings Mode

[W]

< 0.5; < 2 (Networked Standby)

Power Supply 100-240 V AC; 50/60 Hz; internal

Environmental Conditions

Operating Temperature

[°C]

+0 to +40

Operating Humidity [%] 20 to 80

Storage Humidity [%] 10 to 80

Storage Temperature

[°C]

-20 to +60

Mechanical

Dimensions (W x H x D)

[mm]

1,120 x 641 x 59.9

Weight [kg] 9.2

Bezel Width [mm] 10.8

VESA Mounting [mm] 200 x 200 (FDMI); 4 holes; M6

Packaging Dimensions

(W x H x D) [mm]

1,253 x 761 x 128

Packaging Weight [kg] 13

MediaPlayer

Supported File Storage

/ File System

USB 2.0 / FAT16, FAT32

Supported Image

Formats

JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640

Supported Video

Formats

MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264,

HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265,

max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264,

Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10

Pro)

Supported Audio

Formats

MP3 (MP3); max. bit-rate 320 kBit/s

Available Options

Accessories Feet (ST-43M); Trolley (PD04 Tipster); USB-C cable (USB-C 5M, USB-C 7M);

Wall mount (PDW S 32-65 L, PDW S 32-65 P)

Regulatory

Safety and Ergonomics CE; Energy Star 8; FCC Class B; RCM; UKCA; UL/C-UL or CSA; VCCI

Green Features

Energy Efficiency Energy consumption: 90 kWh/1000 h; Energy efficiency class: G; LED

backlight

Ecological Standards EnergyStar 8.0

Additional Features

Special Characteristics CEC Support; HDMI ARC; NaViSet Administrator 2 - free download;

Powered USB-Port; Scheduler; USB Media Player

Colour Versions Black Front Bezel, Black Back Cabinet

Audio Integrated Speakers (10 W + 10 W)

Shipping Content 2x AAA batteries; Cable Clamps; Display; Power Cable; Remote Control;

Setup Manual

Warranty 3 years warranty incl. backlight

Operating Hours 16/7

Remote Management NaViSet Administrator 2
