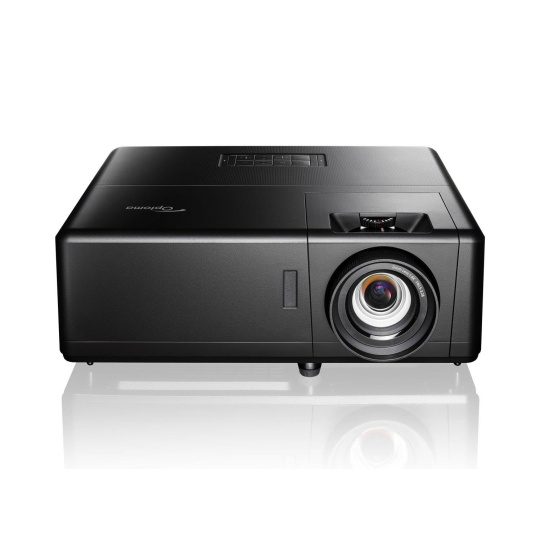

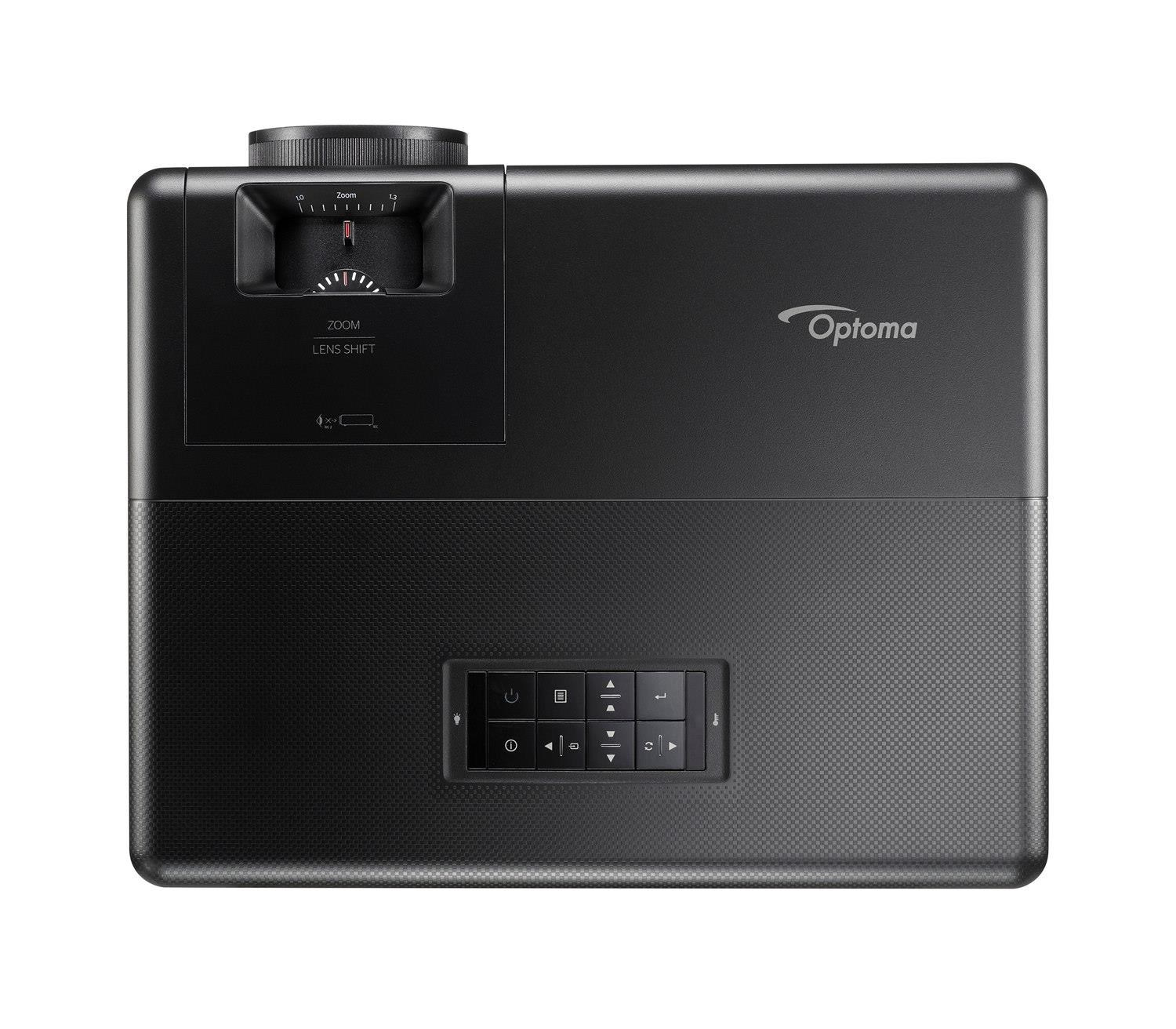

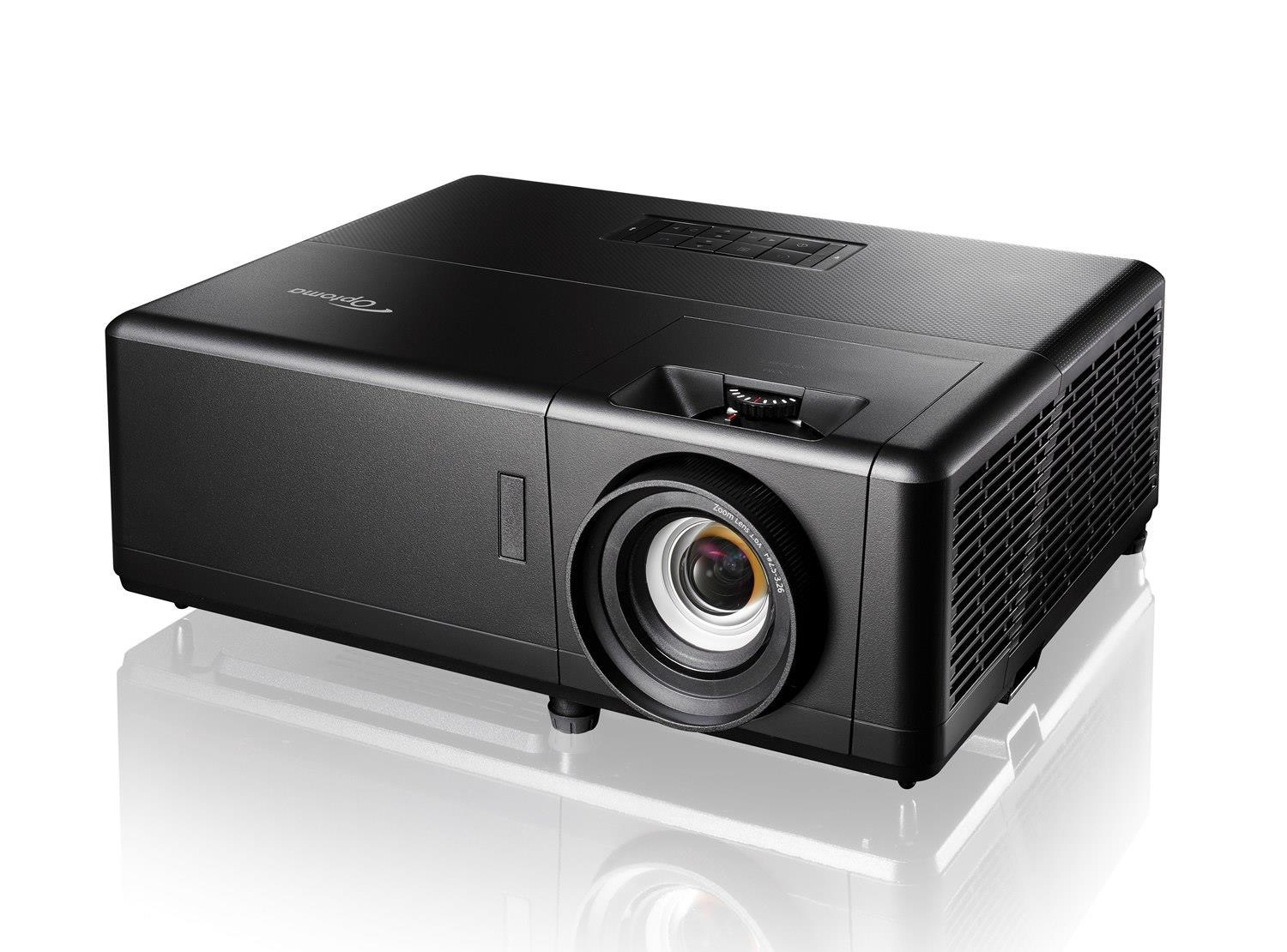

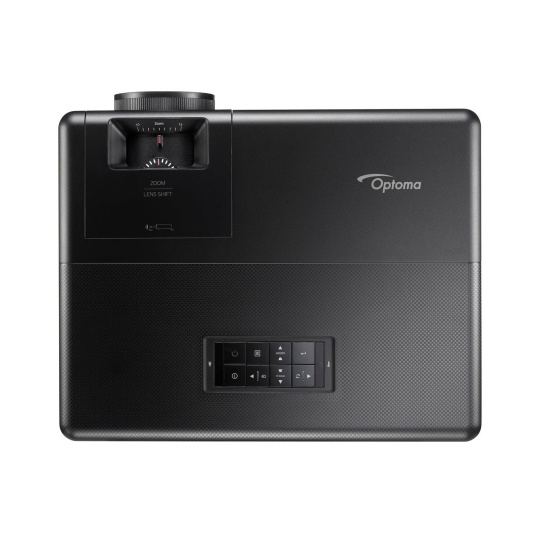

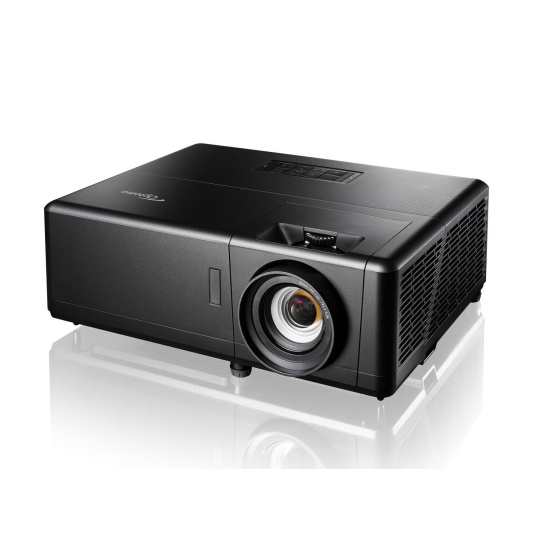

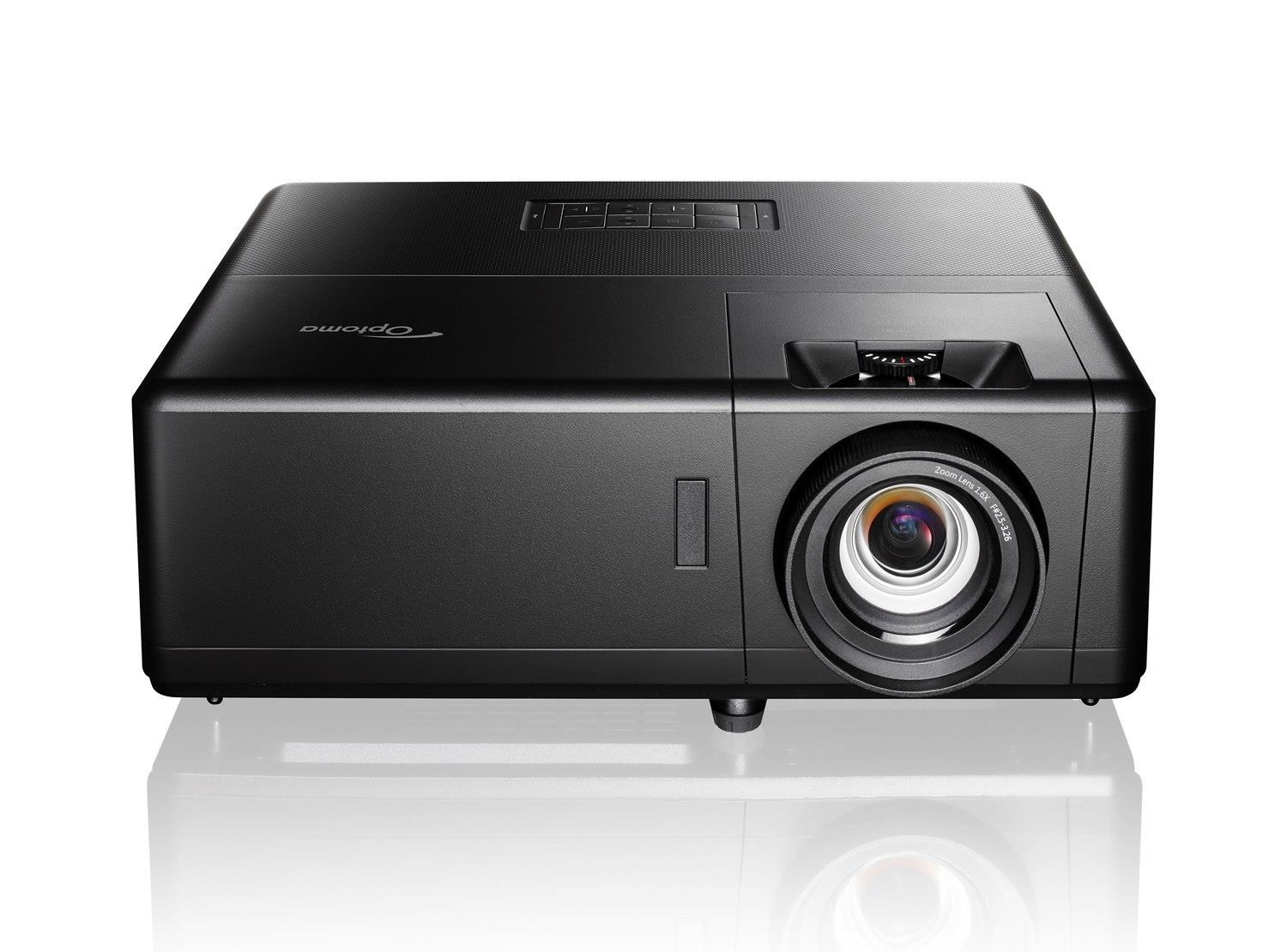

Optoma projektor UHZ55 (DLP, LASER, UHD, 3000 ANSI, 2xHDMI, RS232, LAN, 2x10W speaker)
Popis a parametry
Optoma projektor UHZ55 (DLP, LASER, UHD, 3000 ANSI, 2xHDMI, RS232, LAN, 2x10W speaker)
Display/image
| Display technology | DLP™ |
| Resolution | UHD (3840x2160) |
| Brightness | 3,000 lumens |
| Contrast ratio | 2,500,000:1 |
| Native aspect ratio | 16:9 |
| Aspect ratio - compatible | 4:3 |
| Keystone correction - horizontal | +/-30° |
| Keystone correction - vertical | +/-30° |
| Has vertical auto keystone correction | Yes |
| Displayable colours (millions) | 1073.4 |
| Horizontal scan rate | 15.375 ~ 91.146 Khz |
| Vertical scan rate | 24 ~ 120HzHz |
| Uniformity | 80% |
| Screen size | 0.87m ~ 7.68m (34.1" ~ 302.4") diagonal |
Lamp info
| Light source type | Laser |
| LASER life | 30,000 hours |
Optical
| Throw ratio | 1.21:1 ~ 1.59:1 |
| Projection distance (m) | 1.2m - 8.1m |
| Zoom | 1.3 |
| Zoom type | Manual |
| Focal length (mm) | 12.81mm~16.74mm |
| Lens shift | Vertical +10% |
| Native offset | 105% |
| Lens shift | Yes - see product downloads for more information |

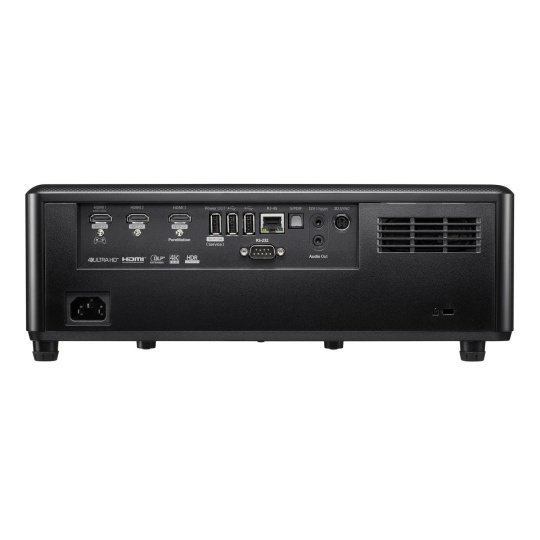

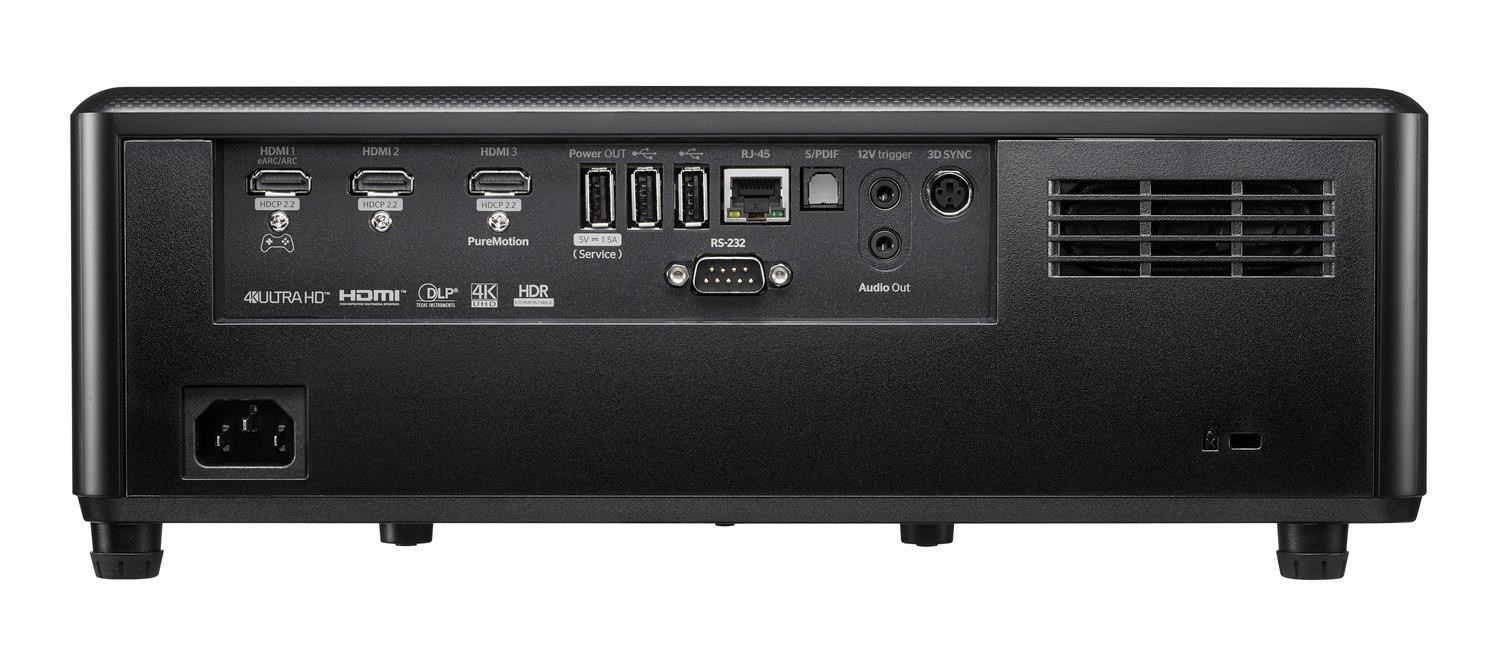

Connectivity
| Connections |
| |||
| Wireless - technology | IEEE 802.11 a/b/g/n/ac | |||
| Wireless - security | WEP, TKIP, AES, WPA, WPA2 | |||
| Wireless - antenna | Omnidirectional | |||
| Wireless - operating frequency | 2.4GHz, 5GHz |
General
| Noise level (min) | 27dB |
| Noise level (max) | 29dB |
| PC compatibility | UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 2D compatibility | NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
| 3D compatibility | Side-By-Side: 1080p23.98 / 24, 720p50 / 60; Frame-packing: 1080p23.98 / 24, 720p50 / 60; Over-Under (Top-and-Bottom): 1080p23.98 / 24, 720p59.94 / 50 / 60; Frame-Sequential: 1080p60 / 120, 800p120, 720p120 (please see the User Manual for more information) |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| OSD / display languages | 10 languages: English, French, German, Italian, Portuguese, Russian, Chinese (simplified), Spanish, Chinese (traditional), Vietnamese |
| 24/7 operation | Yes |
| Operating conditions | 0°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85% |
| Remote control | Backlit home remote |
| Heat dissipation | 785BTU/hour |
| Speaker count | 2 |
| Watts per speaker | 10W |
| In the box | AC power cord Remote control inc CR2025 battery Quick start user manual USB wireless adapter |
| Input lag | 4.00ms |
Networking
| Wireless - technology | IEEE 802.11 a/b/g/n/ac |
| Wireless - antenna | Omnidirectional |
| Wireless - operating frequency | 2.4GHz, 5GHz |
Power
| Power supply | 100V ~ 240V, 50-60Hz |
| Power consumption (standby) | <0.5W |
| Power consumption (min) | 175W |
| Power consumption (max) | 230W |
Weight and dimensions
| Dimensions (W x D x H) mm | 337 x 265 x 119.3 |
| Gross weight | 6.5 kg |
| Net weight | 4.8 kg |
ParametryPorovnání
Rozhraní
LAN
Rozhraní
RS-232
Rozhraní
HDMI
Rozhraní
3.5mm Jack
Rozhraní
USB
Svítivost (v ANSI lumenech)
3000
Technologie
DLP
Skutečné rozlišení projektoru
4K UHD (3840x2160)
Funkce
Reproduktory
Funkce
3D
Reproduktory
Ano
Standardní záruka (roky)
2
Použití projektoru
Home cinema
Zdroj světla
Laser
Reproduktory počet
2
Projekční poměr
16:9
Výkon reproduktoru (W)
10
