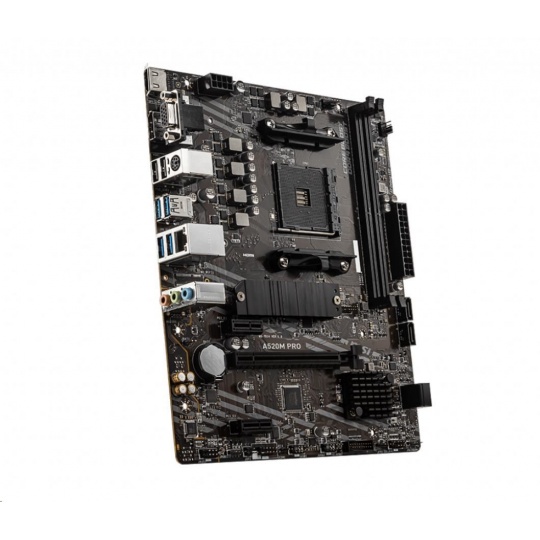

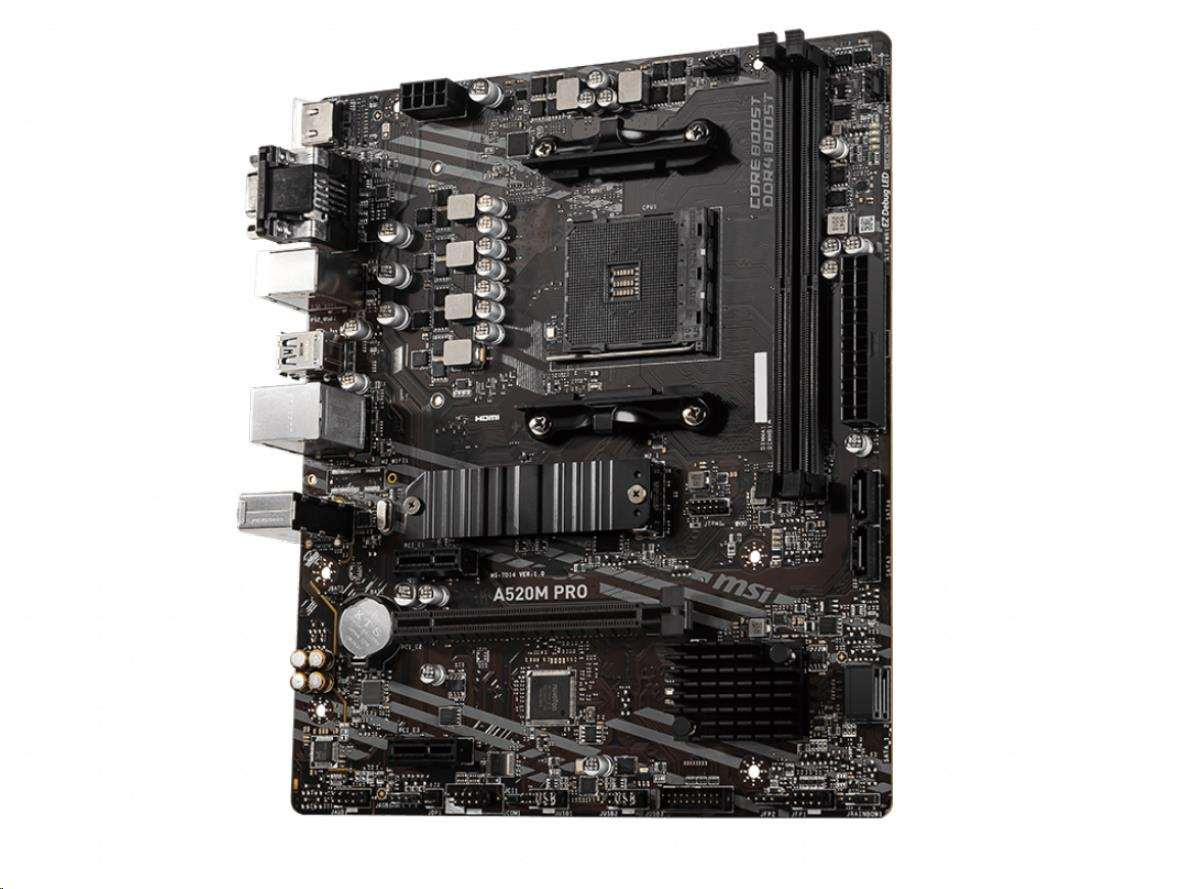

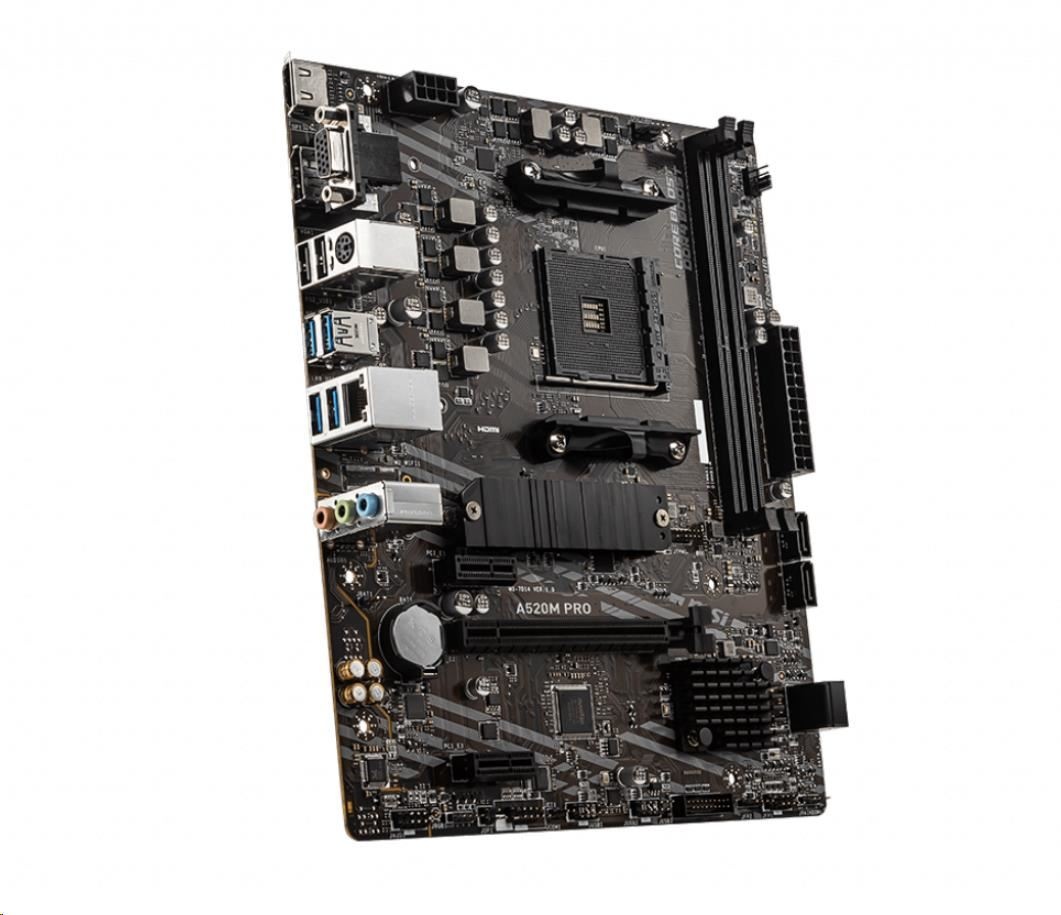

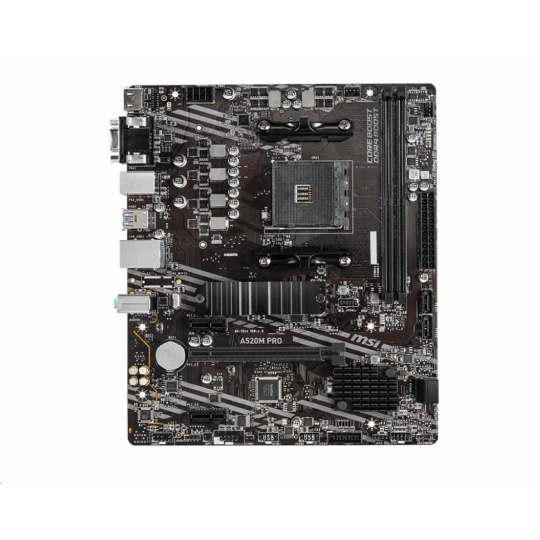

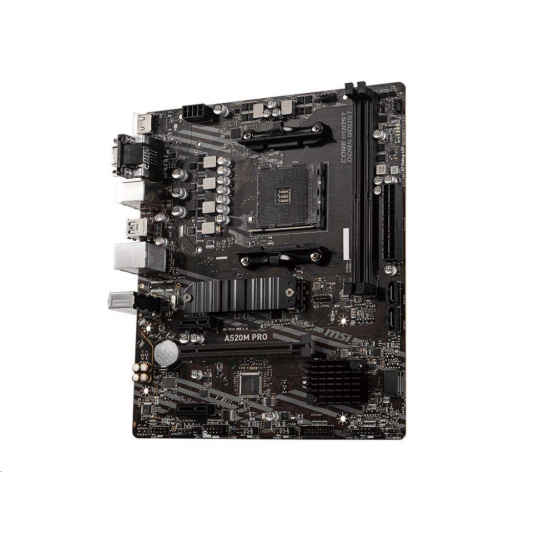

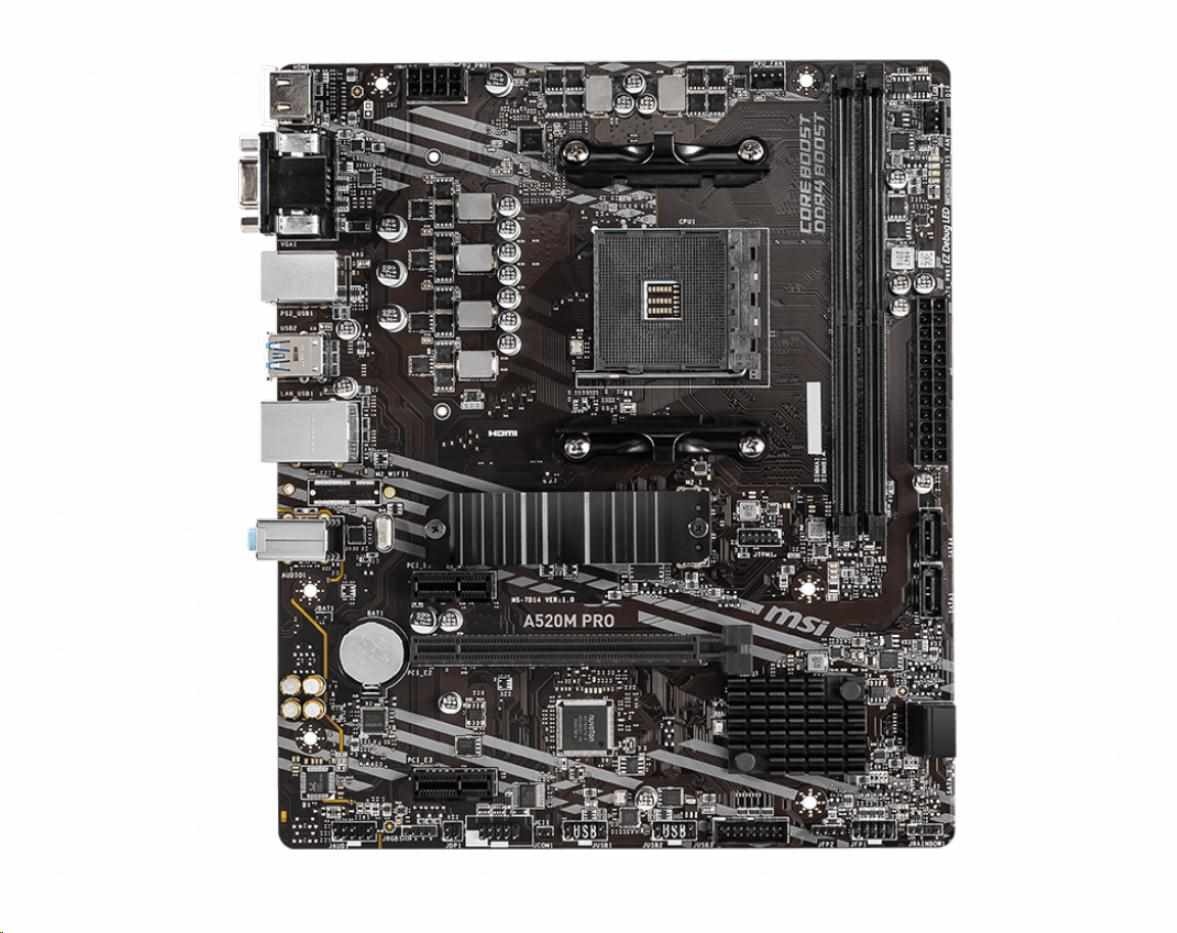

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

Name: MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX
Brand: MSI
SKU: 2647647
Price: 1819 CZK
Availability: InStock

zdarma

-10%

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

Kód: 2647647

Kód dod.: A520M PRO

EAN: 4719072755492

Záruka: 36 Měsíc(ů)

Výrobce: MSI

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

MSI MB Sc AM4 A520M PRO, AMD A520, VGA, 2xDDR4, mATX

A520M PRO

Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface

TECHNICAL SPECIFICATIONS

Socket	AM4
CPU Support	Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset	AMD® A520 Chipset
Memory	2x DDR4 memory slots, support up to 64GB - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe x16 slot (PCI_E2) 2x PCIe 3.0 x1 slots
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB
Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) - M2_1 slot (from AMD Processor) - Supports PCIe 3.0 x4 1 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® RTL8111H LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper

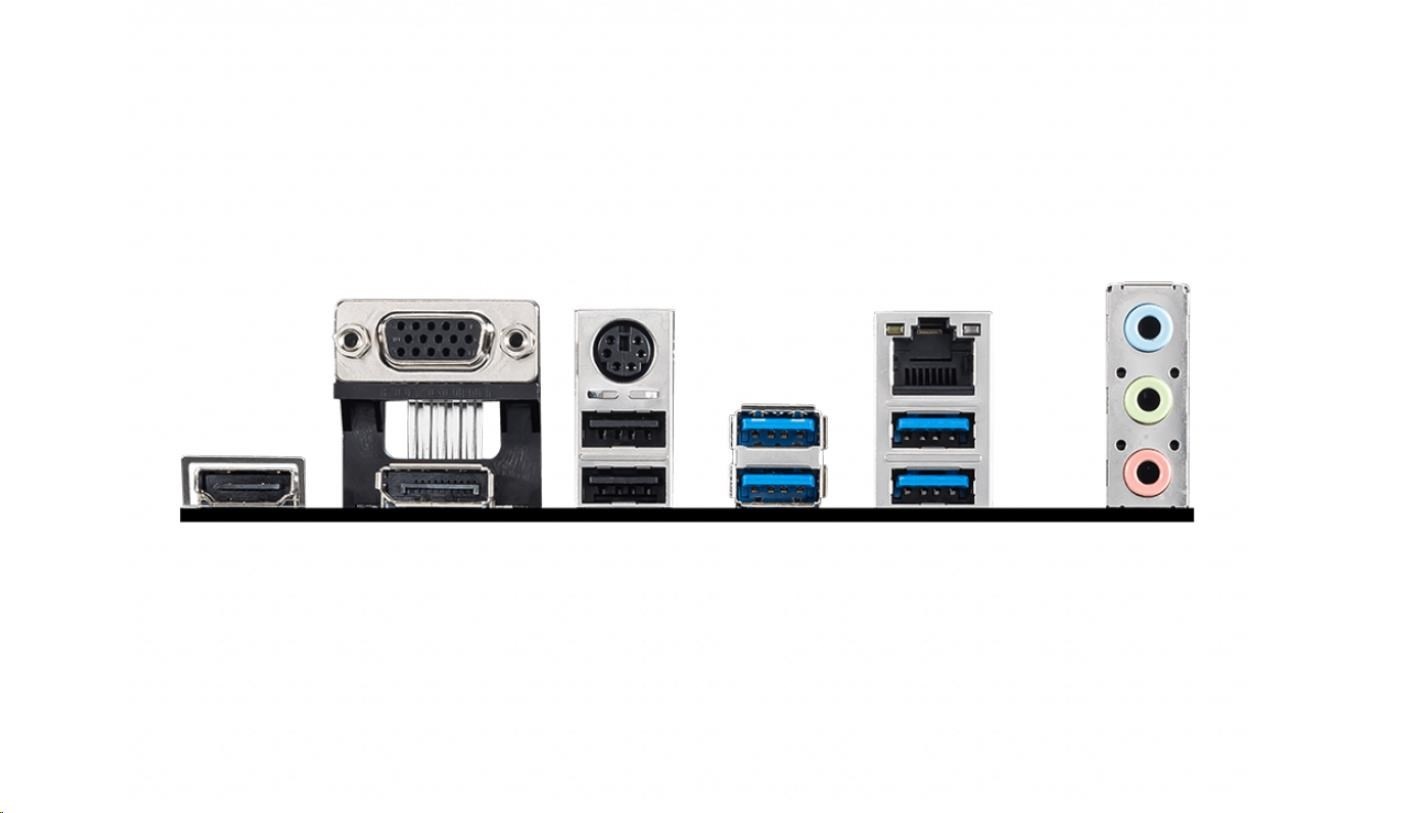

Back Panel Ports	VGA Keyboard / Mouse LAN port HDMI DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Audio Connectors
Dimensions	M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Mounting	6 mounting holes
Box Content	A520M Pro Quick Installation Guide MSI Case Badge 2x SATA Cables Product Registration Card I/O Shielding Driver DVD
Form Factor	m-ATX
Operating System	Support for Windows® 10 64-bit

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket AM4

Formát základní desky

micro ATX

Chipset

Intel B360

Chipset

AMD A520

PCI Express x16

Podpora RAID

LPT port

3.5mm Jack

Ano

Bezdrátové připojení

bez

Pro procesory

AMD

Počet paměťových slotů

DisplayPort

TPM

Ano

USB 2

USB 3

M.2 slot

SATA 3

VGA

DVI

HDMI

Led Header

PCI Express x1

LAN

1Gbit/s
