MikroTik Cloud Router Switch CRS328-4C-20S-4S+RM

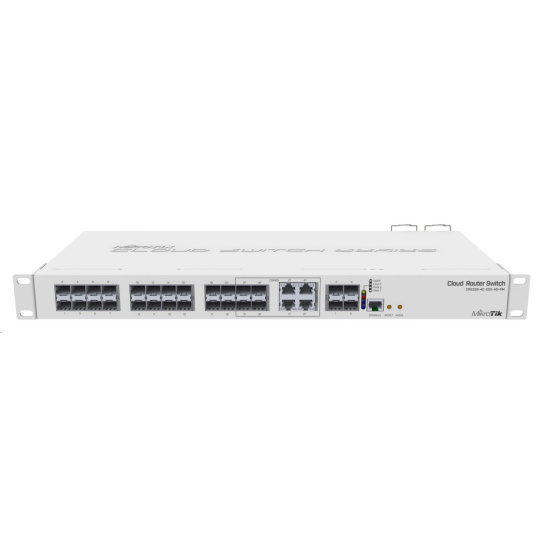

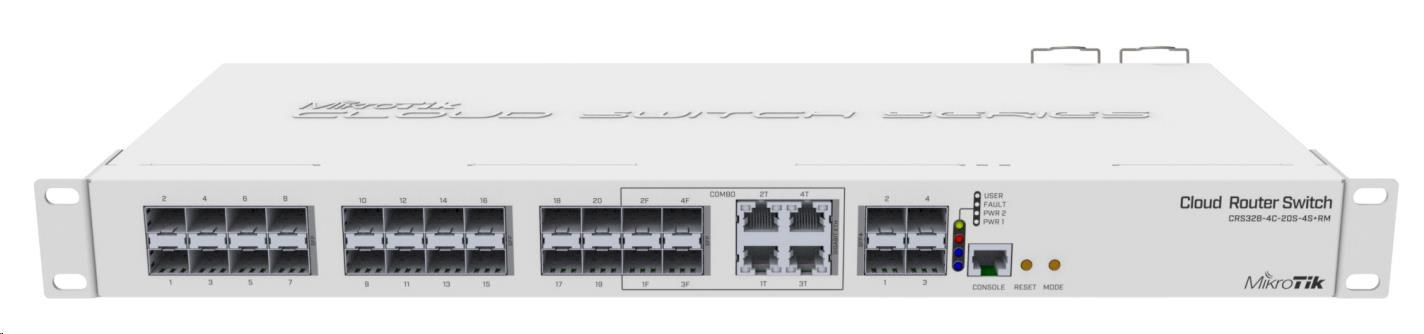

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.

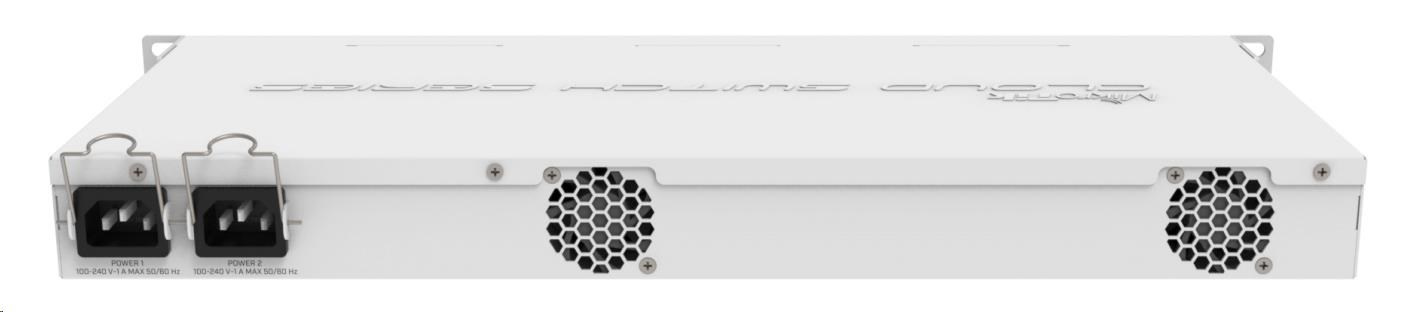

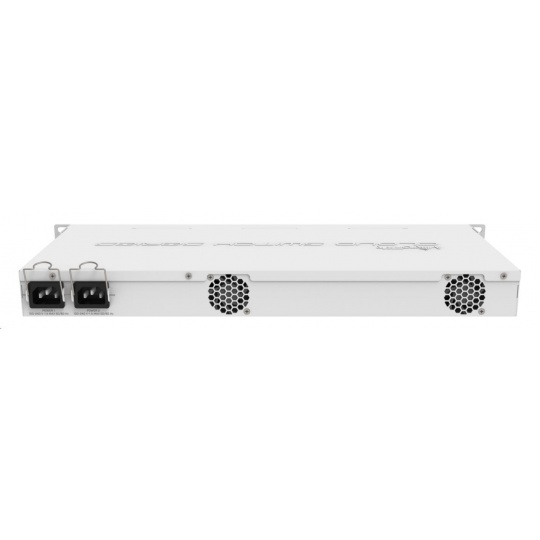

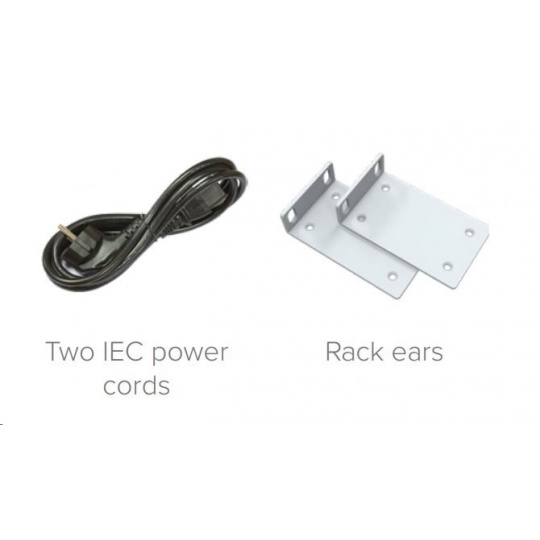

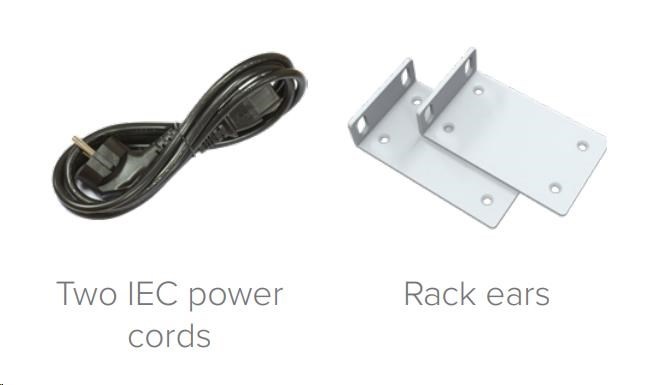

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands. The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with our disruptive price, providing best price/performance on the market.
Technické specifikace:| CPU | 800MHz |
| Typ CPU | ARM 98DX3236 |
| RAM | 512MB |
| Počet LAN portů | 4 |
| Gigabitové porty | Ano (4) |
| SFP | 4x SFP + 20x SFP+ | Počet Mini-PCI | 0 |
| Integr. bezdrátová karta | Ne |
| USB | Ne |
| Napájení Jack | Ne |
| Podpora 802.3af | Ne |
| Senzor napětí | Ano |
| Senzor teploty CPU | Ne |
| Senzor teploty PCB | Ano |
| Rozměry | 443 x 200 x 44 mm |
| Operační systém | RouterOS |
| Rozsah pracovních teplot | -20C až 60C |
| Licence | L5 |
