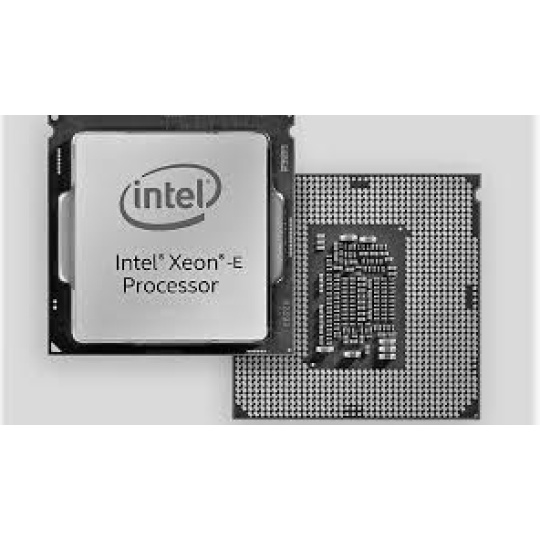

CPU INTEL XEON E-2124G, LGA1151, 3.40 Ghz, 8M L3, 4/4, tray (bez chladiče)
Popis a parametry
CPU INTEL XEON E-2124G, LGA1151, 3.40 Ghz, 8M L3, 4/4, tray (bez chladiče)
| Code Name | Coffee Lake |
| Essentials | |
| Vertical Segment | Server |
| Processor Number | E-2124G |
| Lithography | 14 nm |
| Use Conditions | Embedded Broad Market Commercial Temp, PC/Client/Tablet |
| Performance | |
| # of Cores | 4 |
| # of Threads | 4 |
| Processor Base Frequency | 3.40 GHz |
| Max Turbo Frequency | 4.50 GHz |
| Cache | 8 MB SmartCache |
| Bus Speed | 8 GT/s DMI3 |
| TDP | 71 W |
| Supplemental Information | |
| Embedded Options Available | Yes |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| Processor Graphics | |
| Processor Graphics <sup><small>‡</small></sup> | Intel® UHD Graphics P630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.15 GHz |
| Graphics Video Max Memory | 64 GB |
| Graphics Output | eDP/DP/HDMI/DVI |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4)‡ | 4096x2160@24Hz |
| Max Resolution (DP)‡ | 4096x2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 4096x2304@60Hz |
| Max Resolution (VGA)‡ | N/A |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x3E96 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | 1x16,2x8,1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| Package Size | 37.5mm x 37.5mm |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | No |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
.
ParametryPorovnání
Socket (patice)
Socket 1151
Druh procesoru
Serverový
Řada procesorů
Intel Xeon
Vybavení procesoru
Bez chladiče
CPU INTEL XEON E-2124G, LGA1151, 3.40 Ghz, 8M L3, 4/4, tray (bez chladiče)
