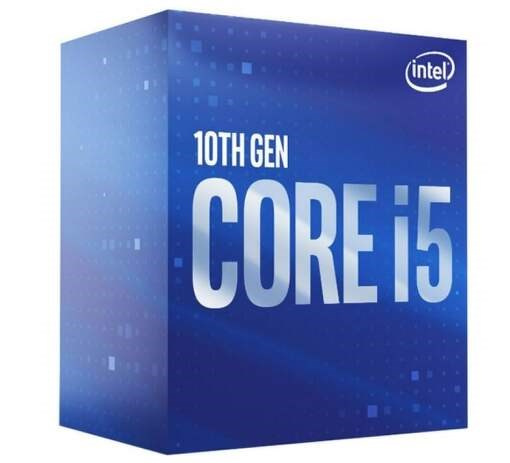

CPU INTEL Core i5-10400 2,90GHz 12MB L3 LGA1200, BOX
CPU INTEL Core i5-10400 2,90GHz 12MB L3 LGA1200, BOX
Intel® Core™ i5-10400 Processor (12M Cache, up to 4.30 GHz)
TECHNICAL SPECIFICATIONS
| Essentials | |
| Product Collection | 10th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Comet Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-10400 |
| Status | Launched |
| Launch Date | Q2'20 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
| Performance | |
| # of Cores | 6 |
| # of Threads | 12 |
| Processor Base Frequency | 2.90 GHz |
| Max Turbo Frequency | 4.30 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 65 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4)‡ | 4096x2160@30Hz |
| Max Resolution (DP)‡ | 4096x2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 4096x2304@60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 04.V |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x9BC8 / 0x9BC5 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | Up to 1x16, 2x8, 1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Intel® vPro™ Platform Eligibility ‡ | No |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | No |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
.
