USB Gen1 Type-C, 6-in-1 Hub with HDMI 8K30Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt

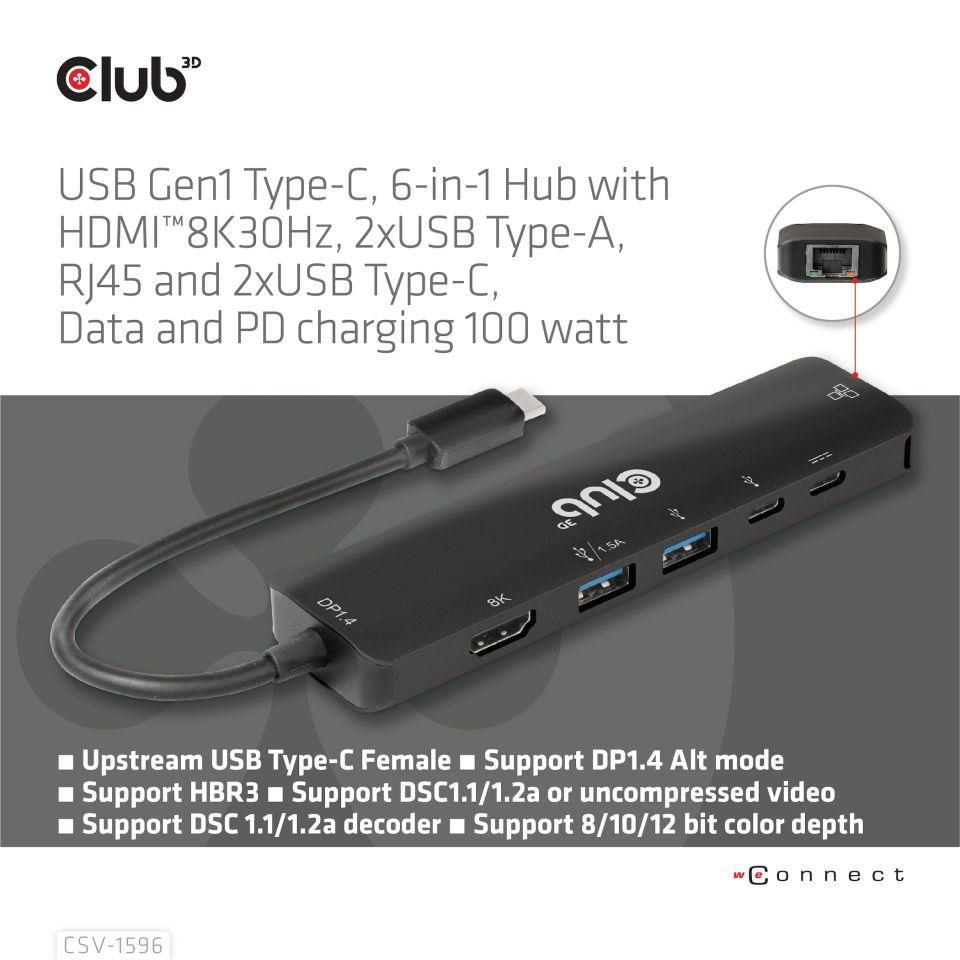

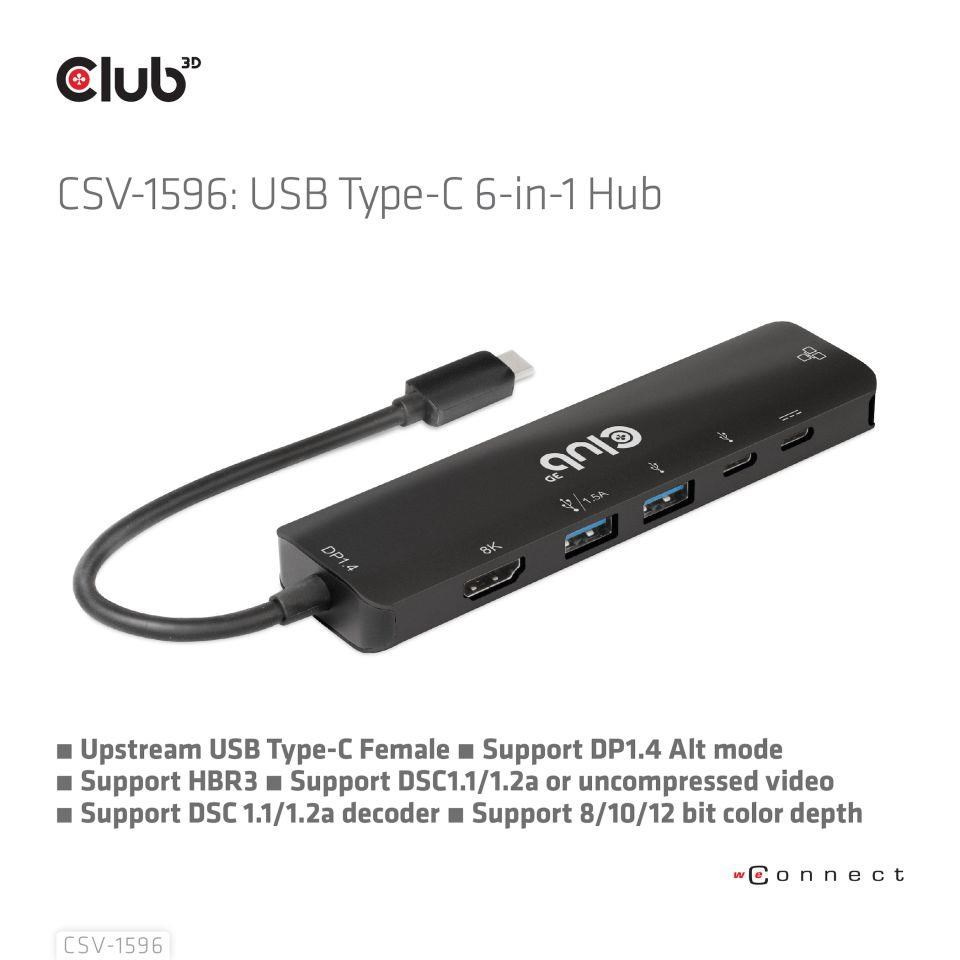

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
TECHNICAL SPECIFICATIONS

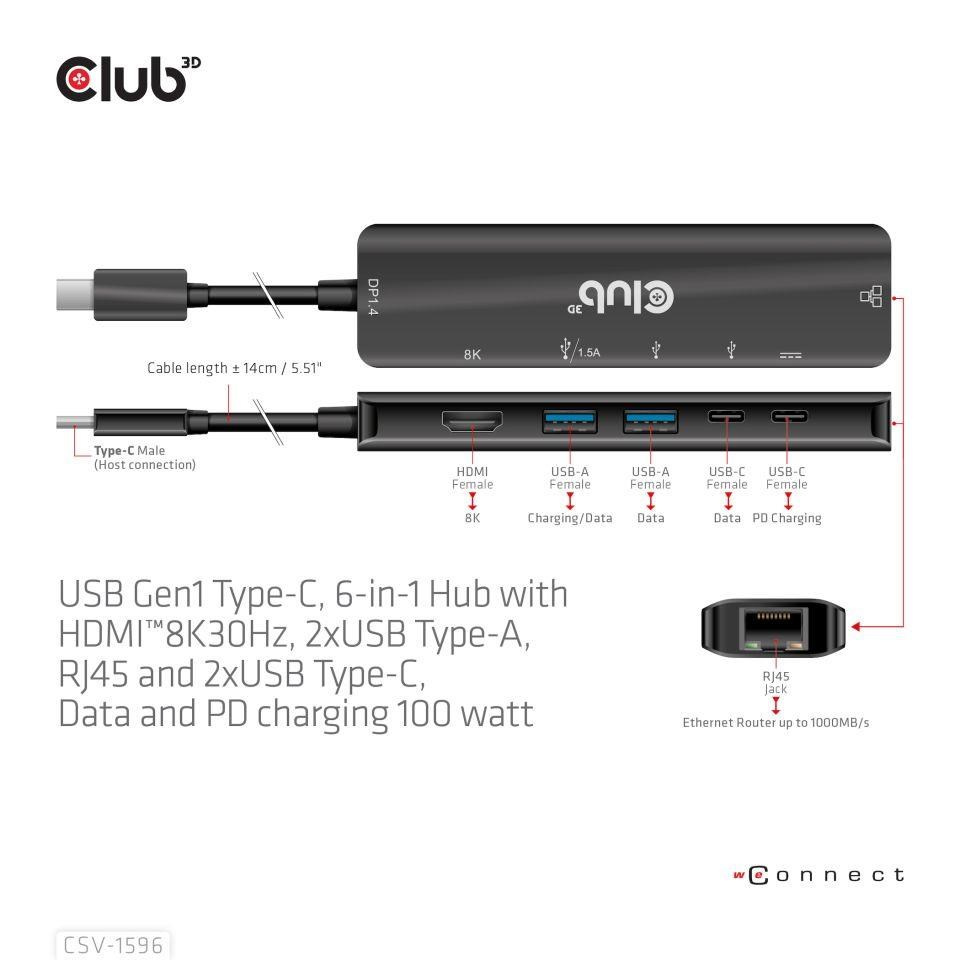

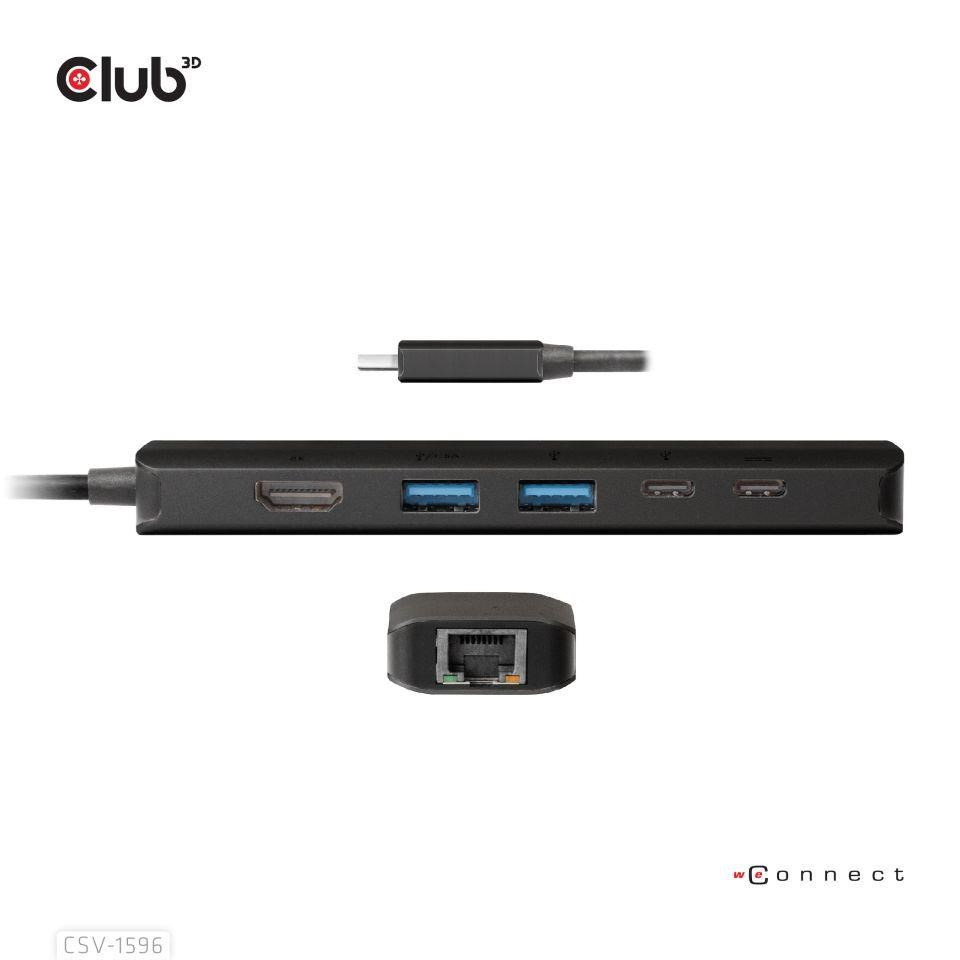

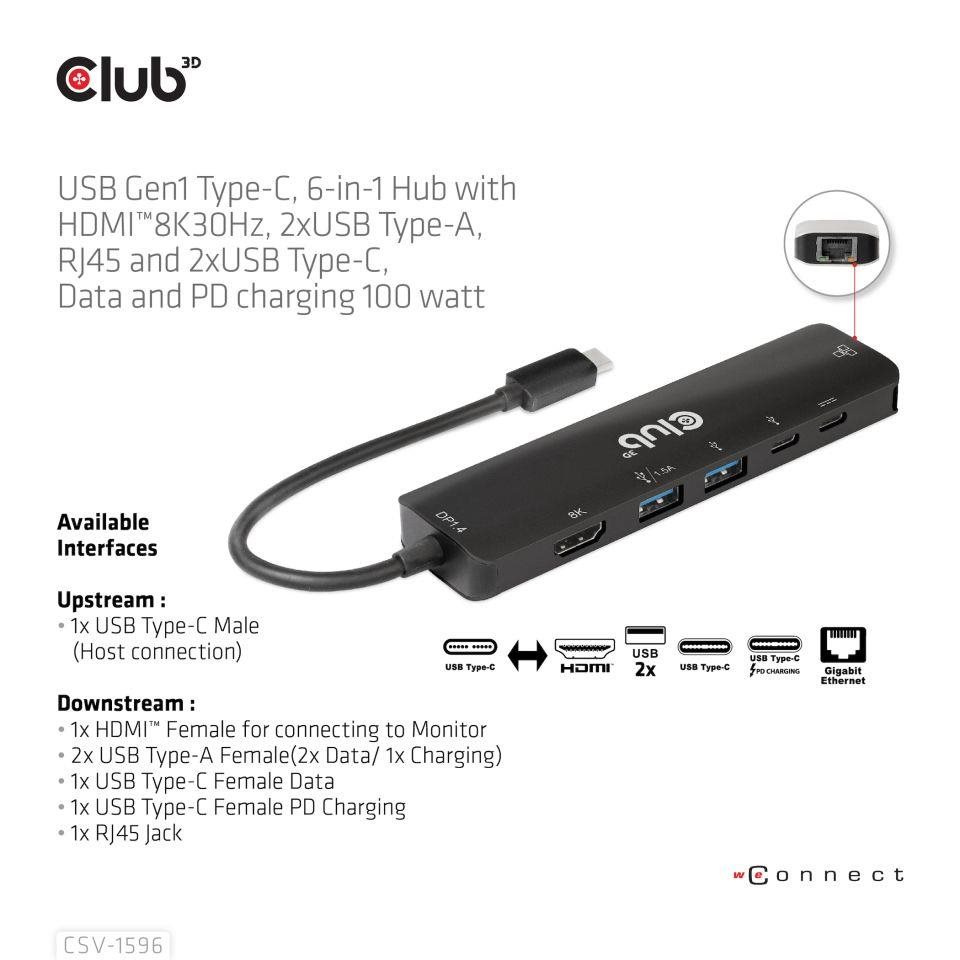

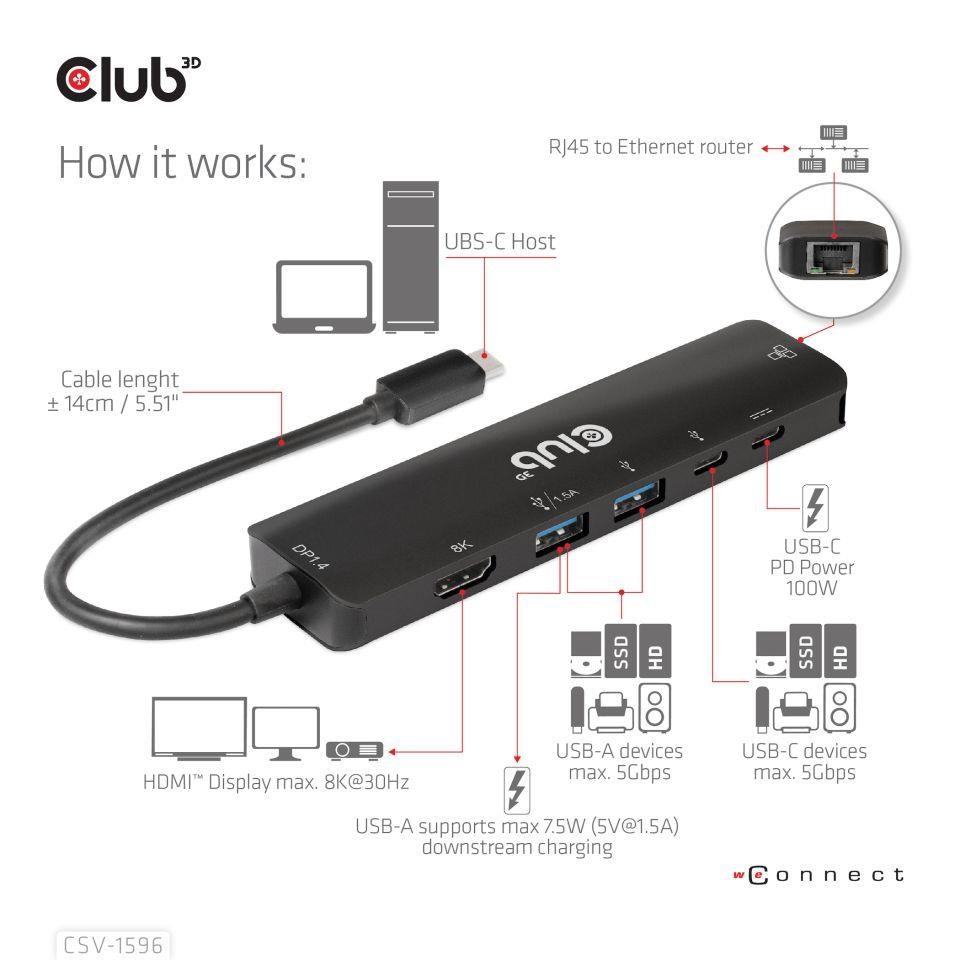

| Available Interfaces | Input: • 1x USB Type-C Male (Host connection) Output: • 1x HDMI™ Female for connecting to Monitor • 1x USB Type-A Female Data • 1x USB Type-A Female Charging/Data • 1x USB Type-C Female Data only • 1x USB Type-C Female PD Charging only • 1x RJ45 Jack |
| OS Support | All |

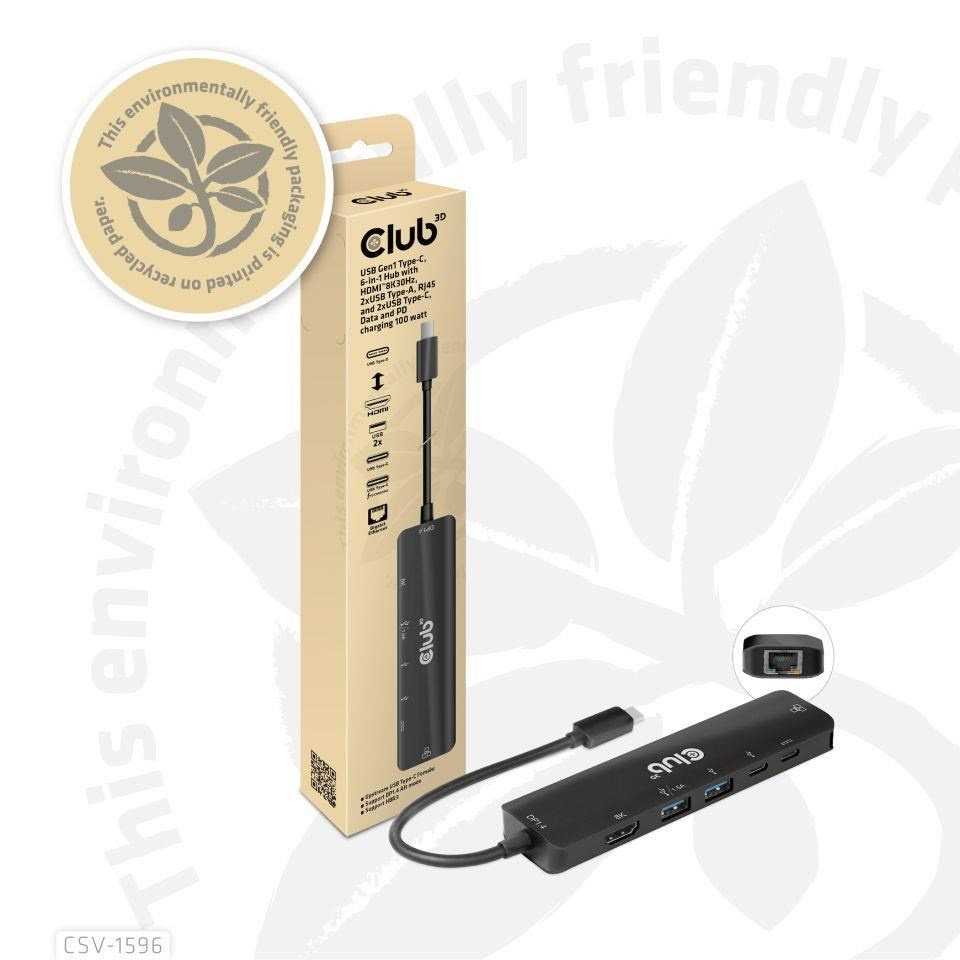

| In the box | • USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt |

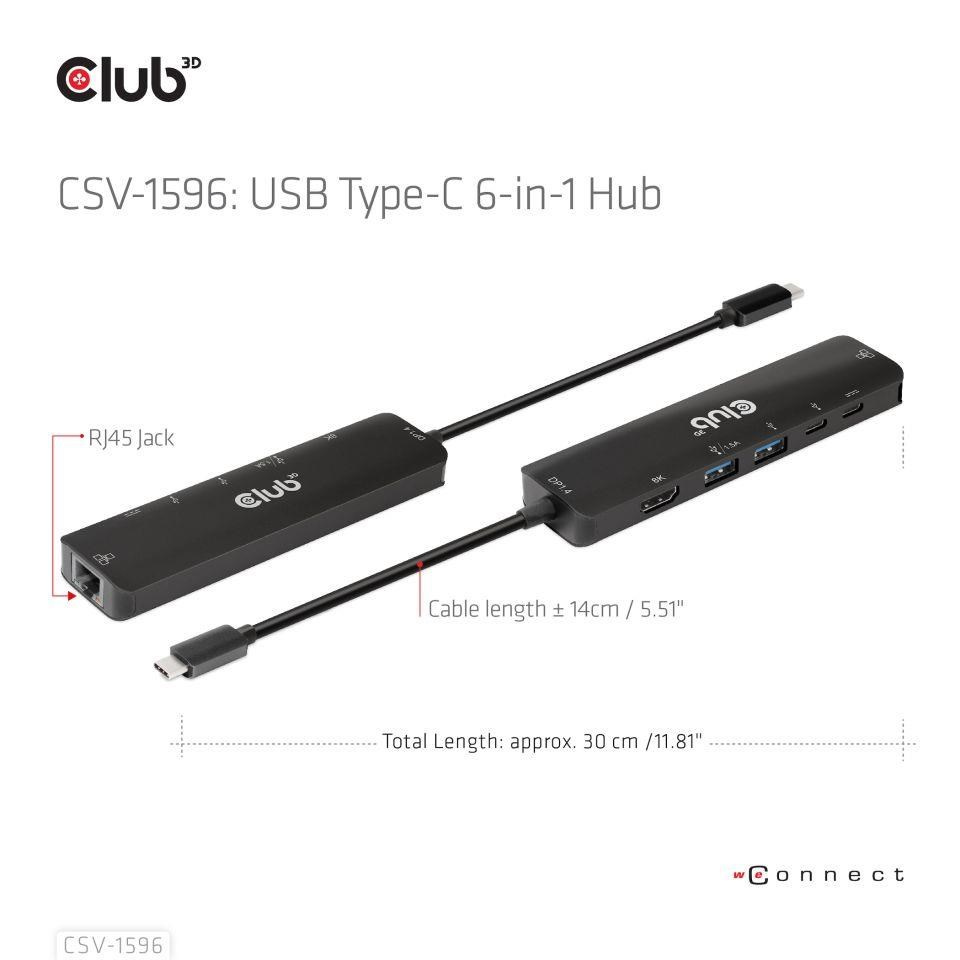

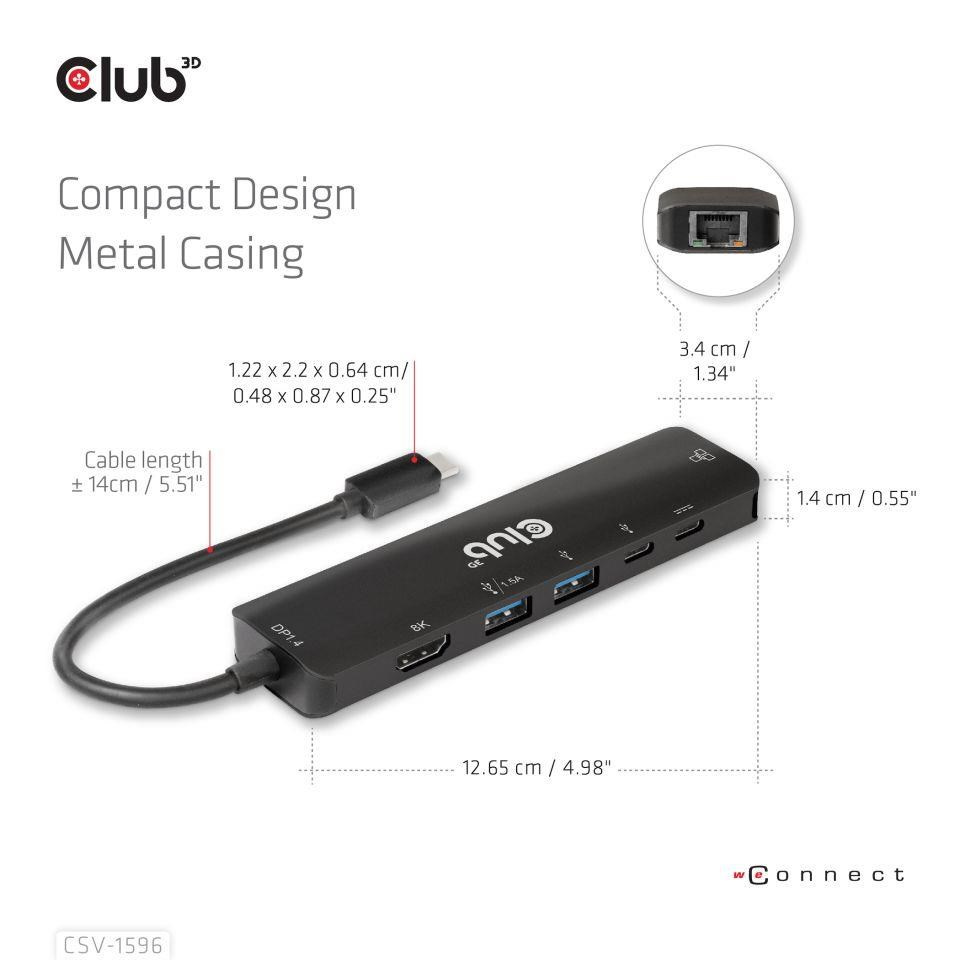

| Other info | • Box size 7 x 32 x 3.5cm / 2.76 x 12.6 x 1.38" • Device size: 12.6 x 3.4 x 1.4 cm / 4.96 x 1.33 x 0.55" • Total Length: approx. 30 cm /11.81" • Device Weight: 89 gr / 3.14 oz • LDPE Bag Weight: 5gr / 0.17 oz • Box Weight: 42 gr / 1.48 oz • Total Weight: 136 gr / 4.79 oz • Meets ROHS, FCC, and CE EMI requirements |
