Club3D aktivní kabel HDMI na USB-C, 4K60Hz, 1.8m, M/M
Popis a parametry

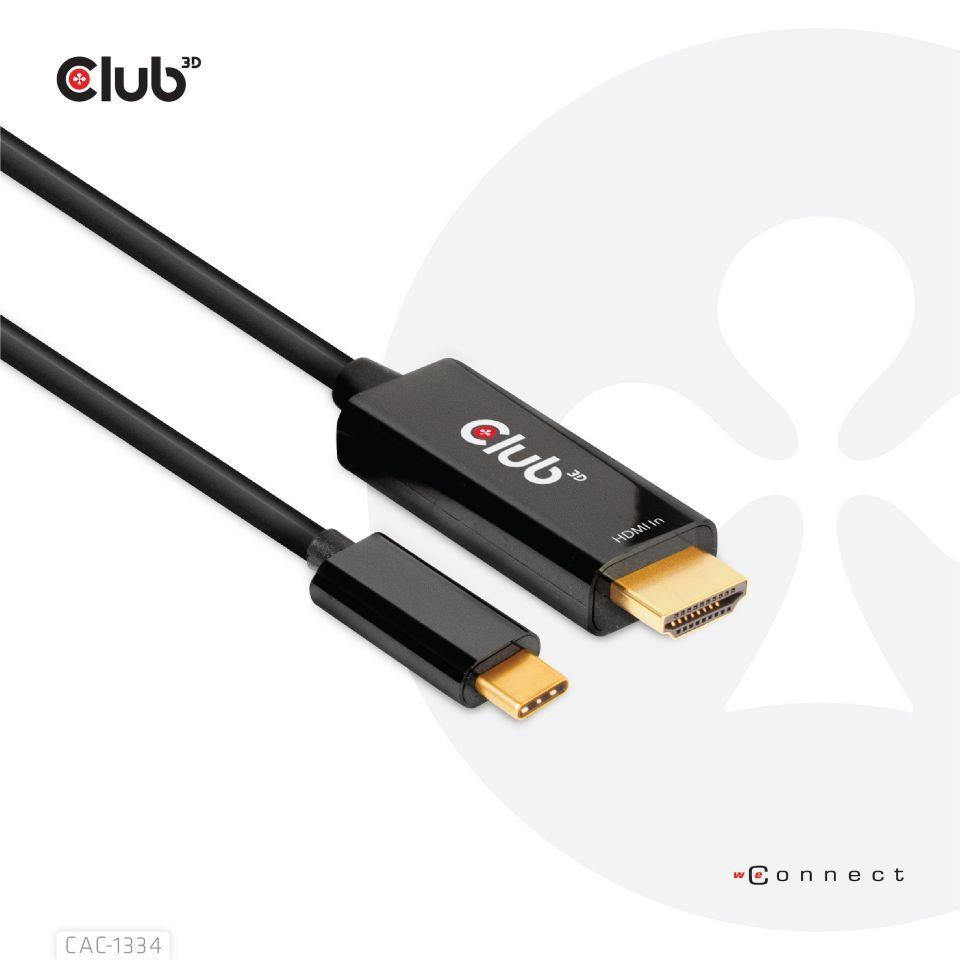

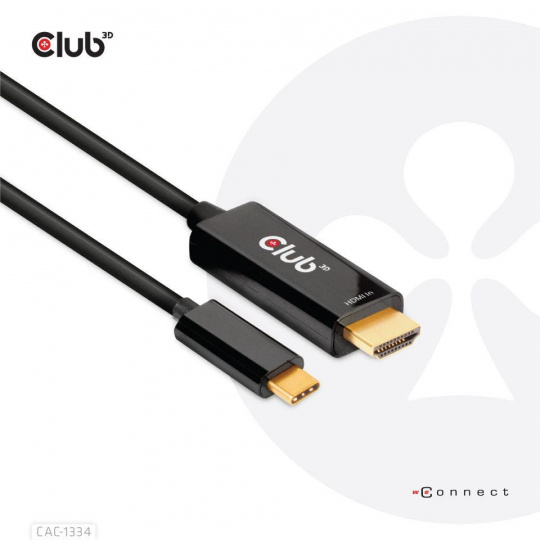

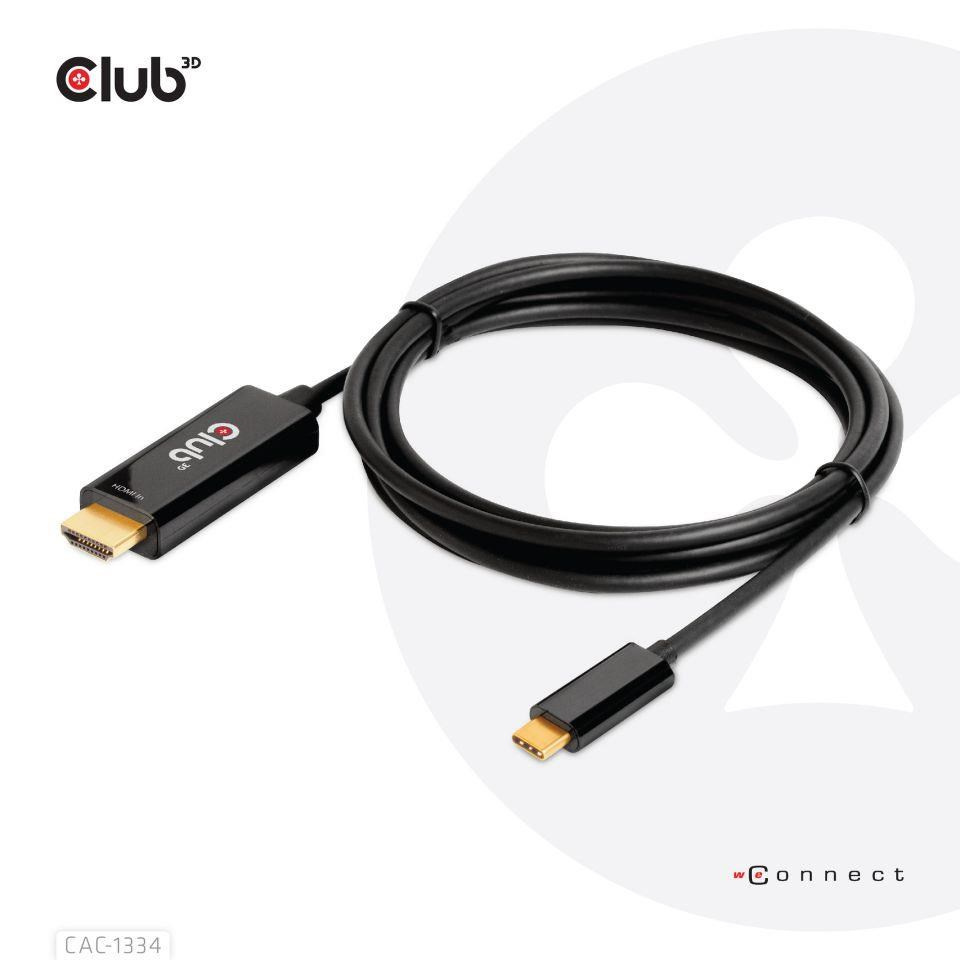

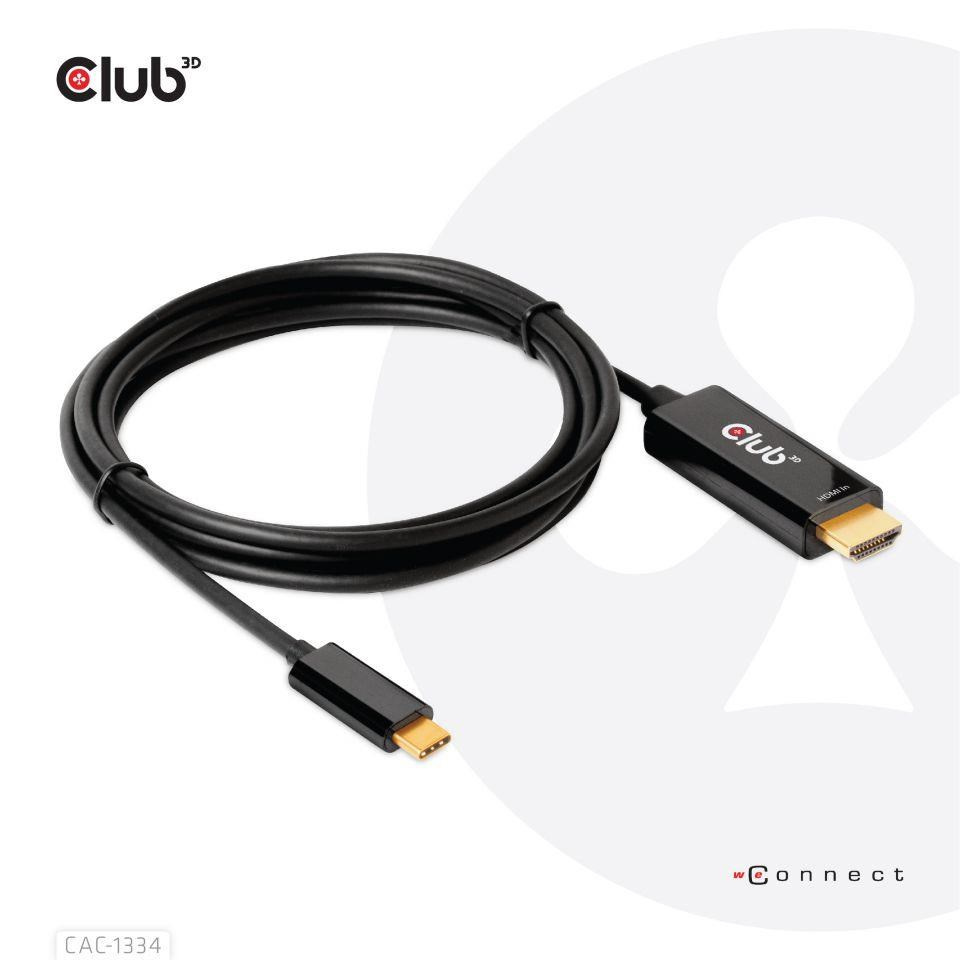

Club3D aktivní kabel HDMI na USB-C, 4K60Hz, 1.8m, M/M
HDMI to USB Type-C 4K60Hz Active Cable M/M 1.8m/6 ft

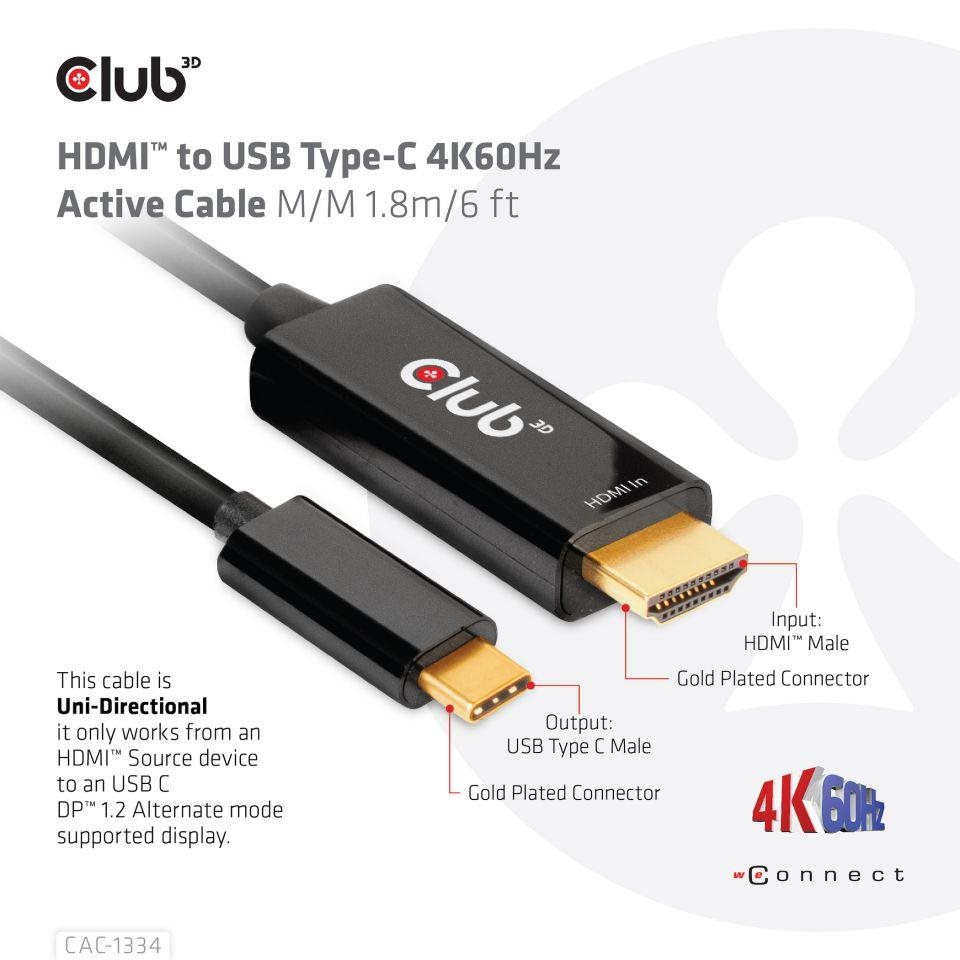

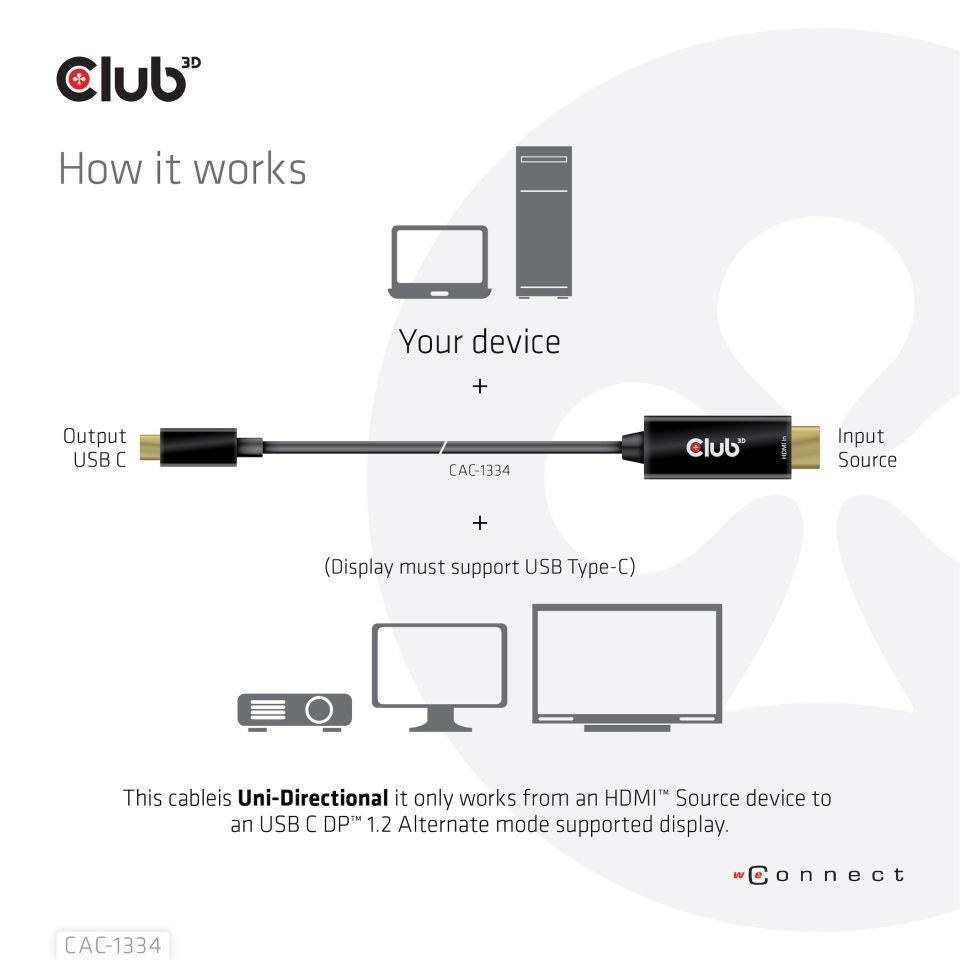

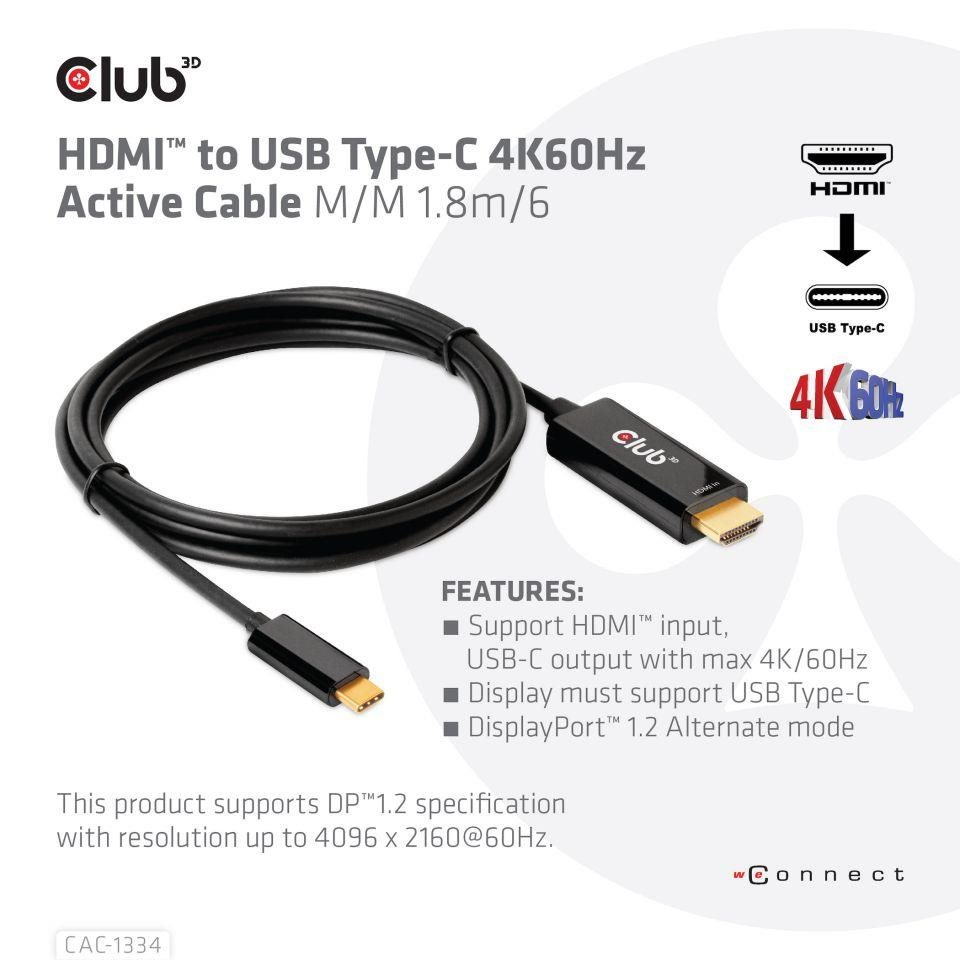

The Club 3D CAC-1334 is a HDMI™ to USB-C Active Cable which allows you to transmit signal from HDMI™ source (Laptop, tablet, PC etc.) to USB-C display devices(TV, monitor, projector, etc.). This cable is Uni-Directional it only works from an HDMI™ Source device to an USB C DP™ 1.2 Alternate mode supported display. This product supports DP™1.2 specification with resolution up to 4096 x 2160@60Hz.
TECHNICAL SPECIFICATIONS
| HDMI | - Support 8/10/12-bit Deep color - Support HDCP1.4/2.2 - Support Status and Control Data Channel (SCDC) - Support Resolution up to 4Kx2K@60Hz for 4:4:4 format |
| USB-C | - Support DP 1.2 specification - Support Resolution up to 4Kx2K@60Hz - Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane - Support Resolution up to 4Kx2K@60Hz for 4:4:4 format - Support 8/10/12-bit Deep Color - Support Hot-Plug Detect - Powered thru USB Type-C at 5V/ 500mA Max. |
| OS Support | All |
| In the box | CAC-1334 HDMI™ to USB Type-C 4K60Hz Active Cable M/M 1.8m/6 ft |
| Available Interfaces | Input: HDMI™ Male Output: USB Type-C Male |

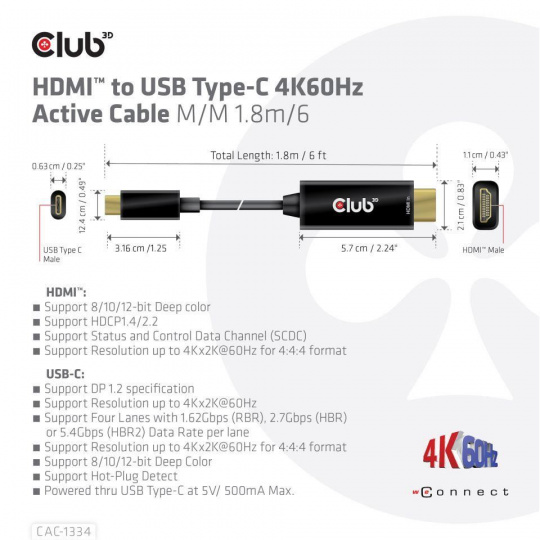

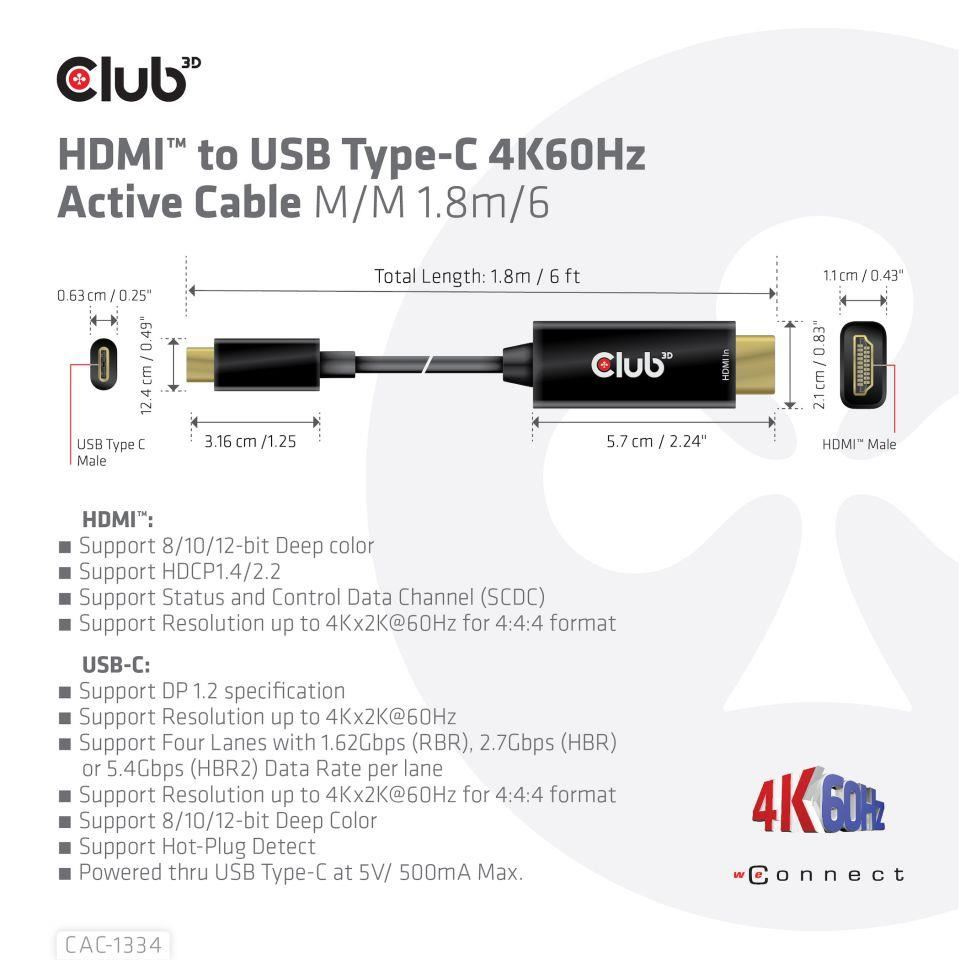

| Other info | - Box size: 14.5 x 14.5 x 4.5cm/ 5.71 x 5.71 x 1.77" - Total Length: 1.8m/6 ft" - Connector dimensions: - HDMI™ Connector: 5.7 x 2.1 x 1.1 cm / 2.24 x 0.83 x 0.43" - USB Type-C: 3.16 x 1.24 x 0.63 cm / 1.25 x 0.49 x 0.25" - Cable Weight: 62 gr / 2.19 oz - Box Weight: 45 gr / 1.59 oz - LDPE Bag Weight: 8 gr / 0.28 oz - Total Weight: 115 gr/ 4.06 oz - Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.ParametryPorovnání
Specifikace kabelu / redukce
Adaptér, Redukce
Input
HDMI
Output
USB-C
