BUNDLE SUPERMICRO CloudDC A+ Server AS -2015CS-TNR

Veškeré Supermicro bundly je možné případně upravit na míru. V případě zájmu prosím kontaktujte svého obchodníka nebo produktového manažera..... více
154 772.73 Kč bez DPH
Na dotaz
187 275 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 205186
Kód dod.: AS -2015CS-TNR//B2
Záruka: 36 Měsíc(ů)
Výrobce: Supermicro
Popis a parametry

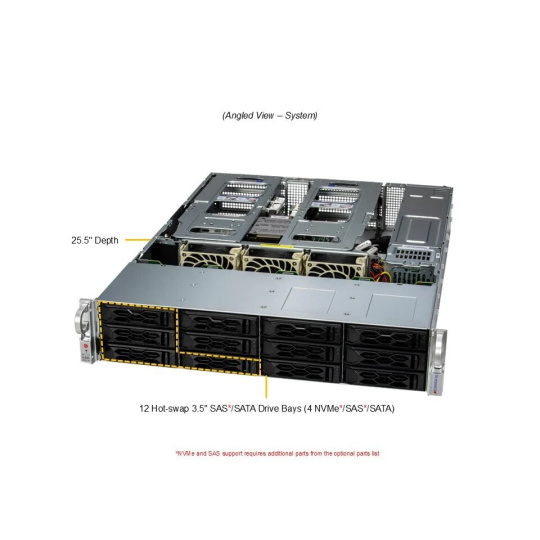

BUNDLE SUPERMICRO CloudDC A+ Server AS -2015CS-TNR

Hlavní využití
Web Server, Firewall ApplicationData Center Optimized, Value IaaSCloud Computing,
Compact ServerDNS & Gateway Servers, Firewall ApplicationCDN, Edge Nodes

Podrobnosti
https://www.supermicro.com/en/products/system/clouddc/2u/as-2015cs-tnr

Specifikace

Bundle obsahuje
AS -2015CS-TNR H13SSW, CSE-LA26TS-R1K23AWP1,RoHS
EWCSC 0% 3 YRS LABOR, 3 YRS PARTS, 1 YR CRS
UNDER LIMITED WRNTY
PSE-GEN9334-0800 Genoa 9334 DP/UP 32C/64T 2.7G 128M 210W
SP5
4x MEM-DR532MD-ER48 32GB DDR5-4800 2RX8 (16Gb) RDIMM
2x HDS-M2N4-480G0-E1-TXD-NON 080 SSD M.2 NVMe PCIe4 480GB 1DWPD TLC D,
80mm
AOC-ATG-I2TM-O AIOM 2-port 10GBase-T, Intel X550,RoHS
2x CBL-MCIO-1232M5 MCIO x8 (STR to STR),32cm,85OHM,RoHS
MC0037 ASSEMBLY FEE
Specifikace serveru
Form Factor 2U Rackmount
Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5")
Package: 678 x 290 x 876mm (26.7" x 11.4" x 34.5")
Processor Single Socket SP5
AMD EPYC™ 9004 Series Processors
Up to 128C/256T
GPU Max GPU Count: Up to 2 double-width or 4 single-width GPU(s)
Supported GPU: AMD PCIe: Instinct MI210
NVIDIA PCIe: L40, RTX A4000, RTX 6000 ADA, L40S, L4, A40, A30, A16, A2, A100
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect: PCIe
System Memory Slot Count: 12 DIMM slots
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
Drive Bays Configuration Default: Total 12 bay(s)
4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bay(s)
8 front hot-swap 3.5" SAS*/SATA drive bay(s)
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for
details)
M.2: 2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
Expansion Slots Default
2 PCIe 5.0 x16 FHFL slot(s)
2 PCIe 5.0 x16 FHHL slot(s)
2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
Option A
2 PCIe 5.0 x8 FHFL slot(s)
On-Board Devices Chipset: System on Chip
Network Connectivity: Via Slim-AIOM
IPMI: Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output LAN: 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB: 2 USB 3.0 port(s) (rear)
Video: 1 VGA port(s)
Serial: 1 COM port(s) (Rear)
TPM: 1 TPM header
System Cooling Fans: 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud: 1 Air Shroud(s)
Power Supply 1200W Redundant Titanium Level power supplies
System BIOS BIOS Type: AMI 32MB SPI Flash ROM
BIOS Features: ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Management Redfish API; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5; Super
Diagnostics Offline ; KVM with dedicated LAN ; IPMI 2.0
PC Health Monitoring FAN: Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature: Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Voltage:
System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU
thermal trip support
Dimensions and Weight Weight: Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg)
Available Color: Black front & sliver body
Operating Environment Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing
Motherboard H13SSW
Chassis CSE-LA26TS-R1K23AWP1
.
ParametryPorovnání
Provedení serveru
Rack
HDD Kapacita (GB)
960

BUNDLE SUPERMICRO CloudDC A+ Server AS -2015CS-TNR
