CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

Chipset

INTEL B760

Memory

2x DDR5, Maximum Memory Capacity 128GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Graphics

1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion slot

1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)
2x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

Wireless LAN

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio

Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio

Internal I/O ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

LED

4x EZ Debug LED

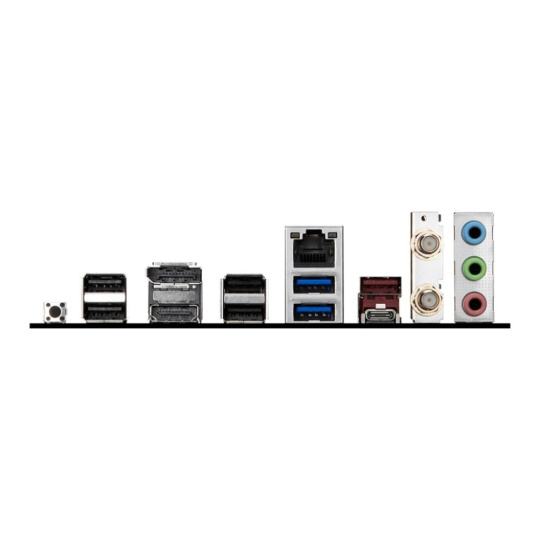

Back Panel I/O ports

4x USB 3.2 Gen 1 5Gbps
1x Display Port
1x USB 3.2 Gen 2 10Gbps
1x 2.5G LAN
3x Audio Connectors
1x HDMI™
1x USB 3.2 Gen 2 10Gbps (Type-C)
2x USB 2.0
2x Wi-Fi / Bluetooth

Operating system

Support for Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

Mini-ITX
170mmx170mm

Accessories

2x M.2 Screw
1x Wi-Fi Antenna
1x Sata cable
1x Rainbow RGB LED Extension Cable
