ASUS rozšiřující karta ThunderboltEX 4
ThunderboltEX 4

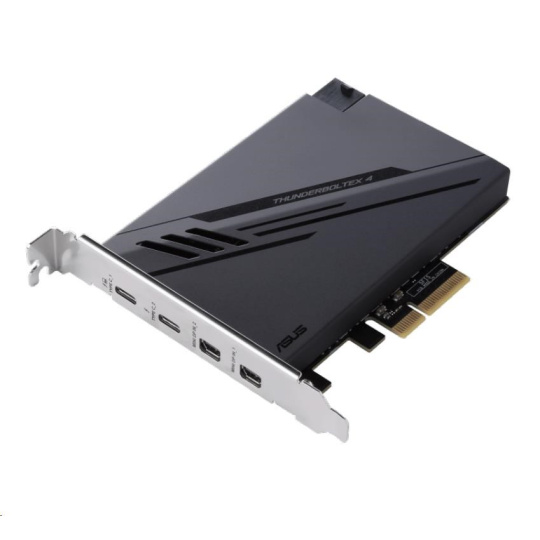

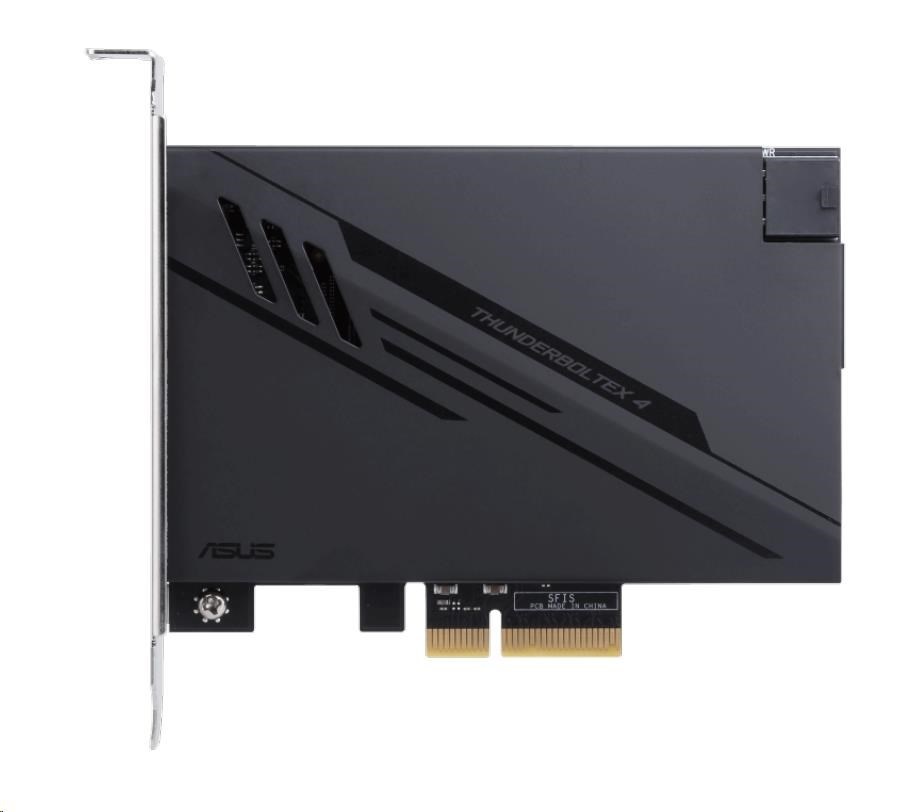

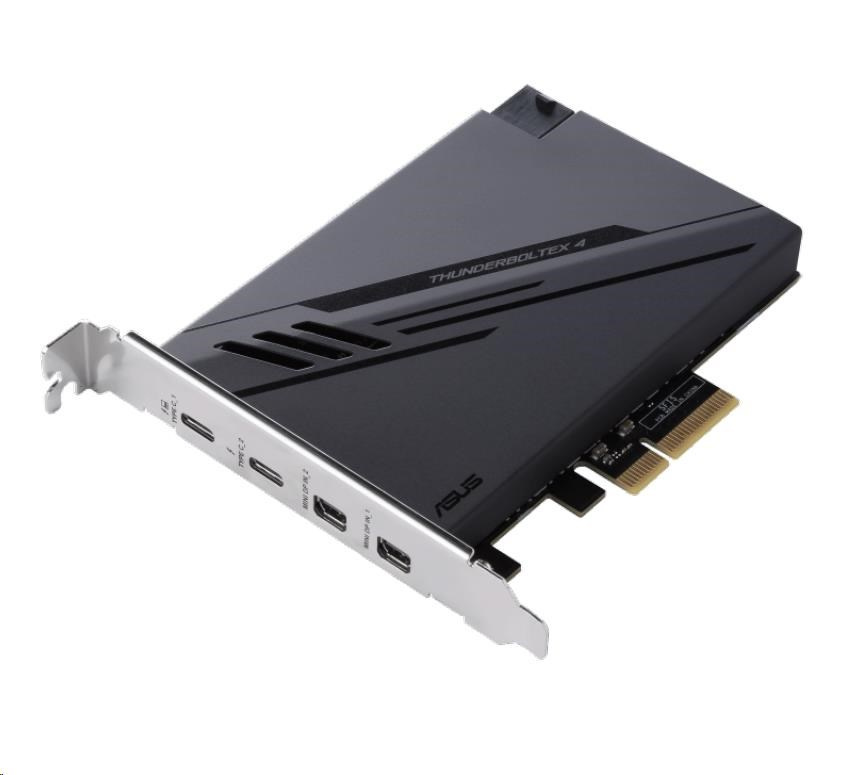

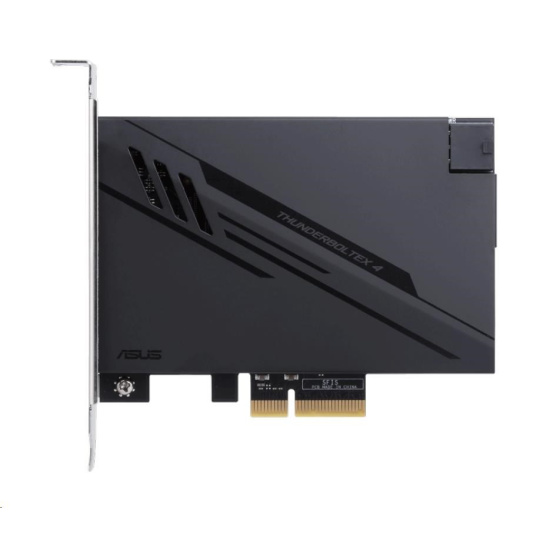

ASUS ThunderboltEX 4 expansion card, dual Thunderbolt™ 4 (USB-C®) ports, DisplayPort™ 1.4, PCIe® 3.0 x4 interface
- Intel®-certified Thunderbolt™ 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort™ 1.4 for 8K Ultra HD support
TECHNICAL SPECIFICATIONS
| Chipset | Intel® Thunderbolt™ 4 JHL8540 Controller |
| Interface | PCIe 3.0 x4 interface |

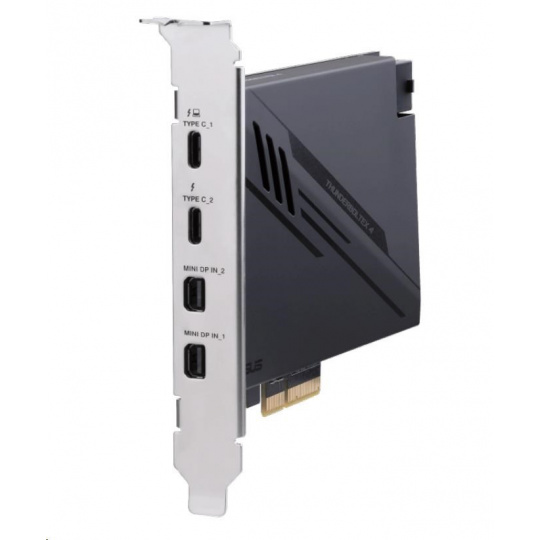

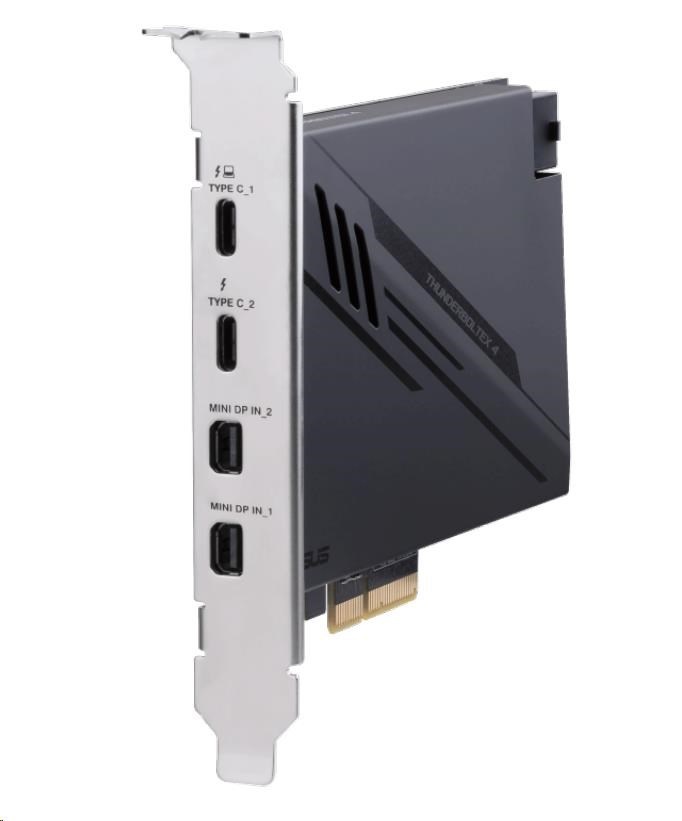

| External Connectors | 2 x USB Type-C® ports (Support Thunderbolt™ 4 and USB 4 technology) - up to 40Gbps for Thunderbolt devices - The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature. 2 x mini DisplayPort IN ports 1 x 6-pin PCIe power connector for quick charge function 1 x USB 2.0 header 1 x Thunderbolt header |

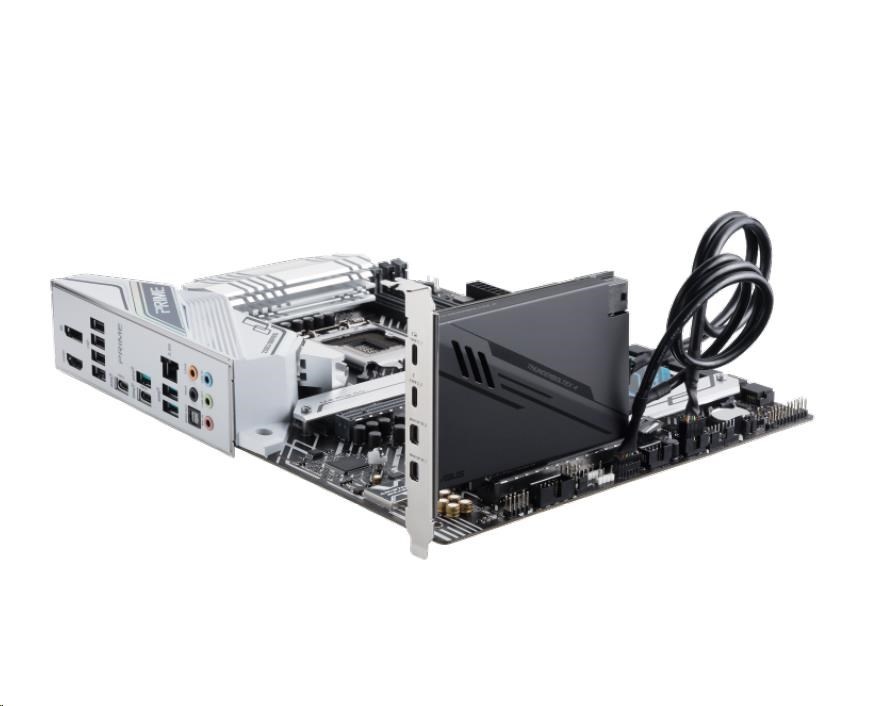

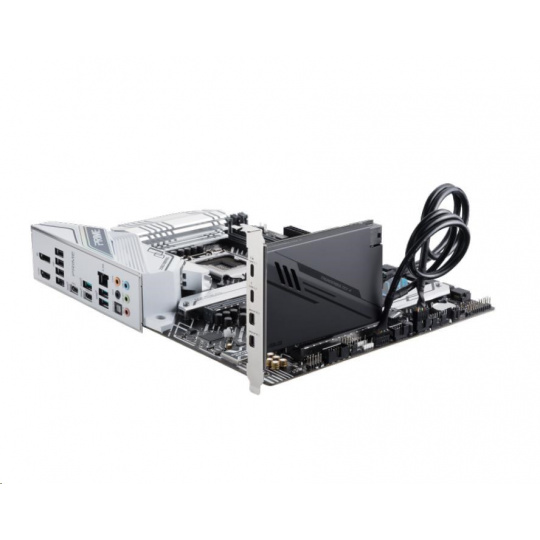

| Compatible Model | ASUS Intel 500 series and later models with 14-1 pin Thunderbolt header. *Refer to the following link for an up-to-date list of compatible models: https://www.asus.com/Motherboard-Accessories/ThunderboltEX-4/HelpDesk_Manual/ Operating System Windows® 10 - 64 bit |
| VGA | Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz* * Max resolution support will depend on your VGA source |

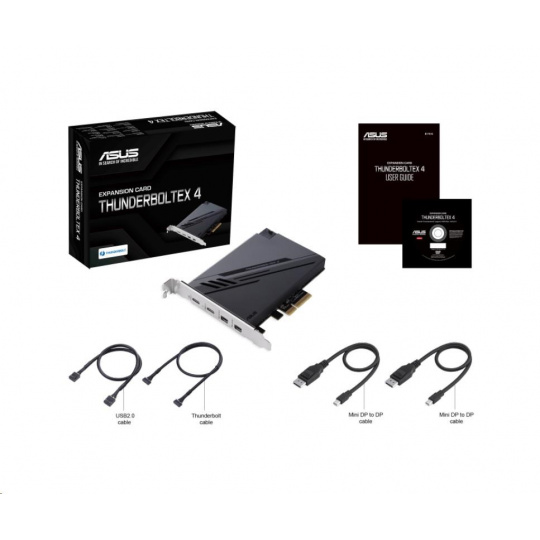

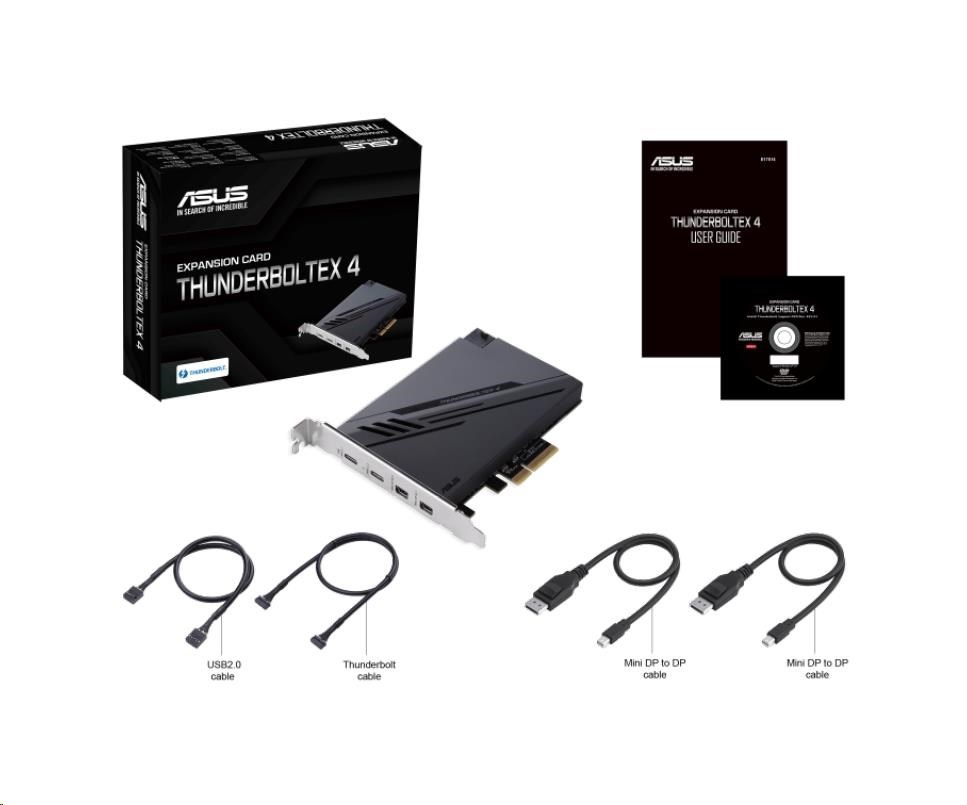

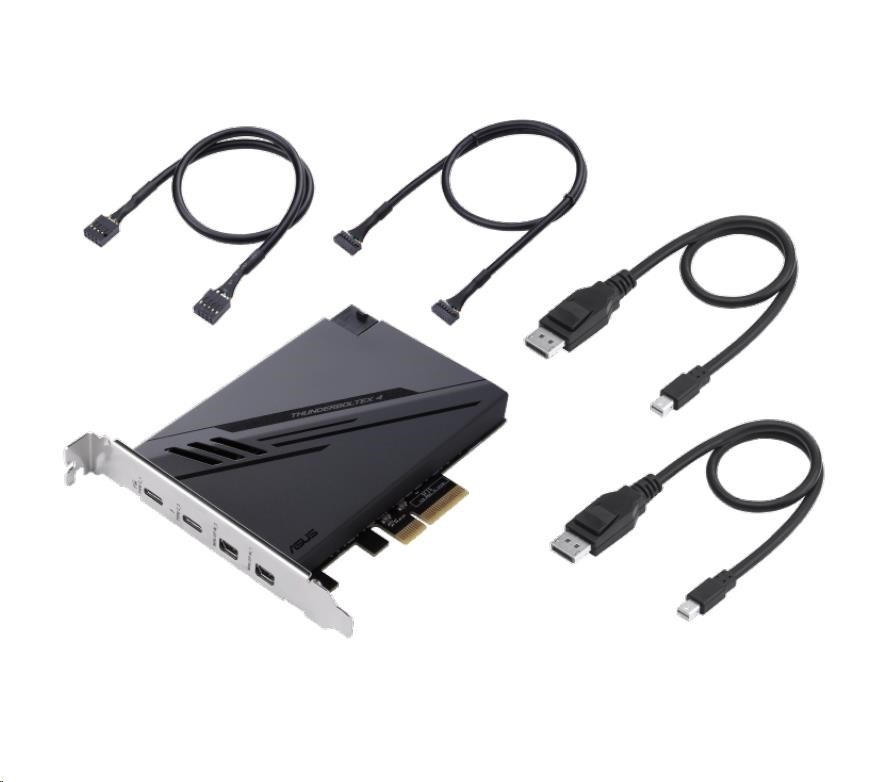

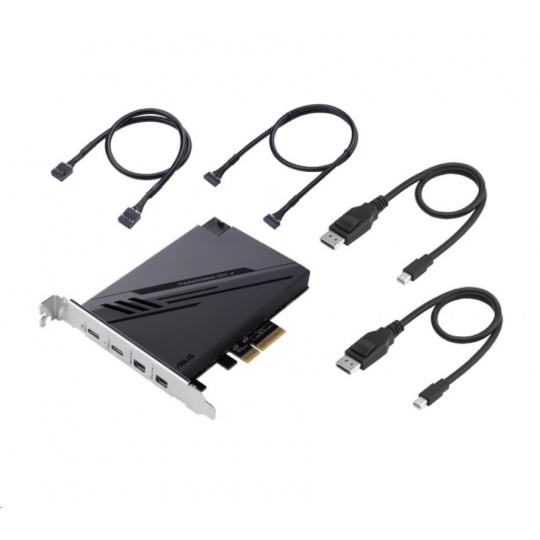

| Accessories | 2 x mini DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card) 1 x USB 2.0 cable 1 x 14-1 pin Thunderbolt header cable 1 x User manual 1 x Support DVD with Thunderbolt™ driver |
| Dimensions | 4.6 x 7.1 inch (11.77 x 18.05 cm) |
.
