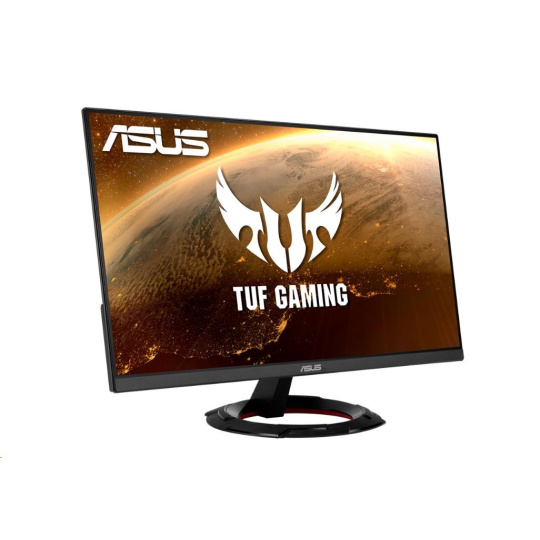

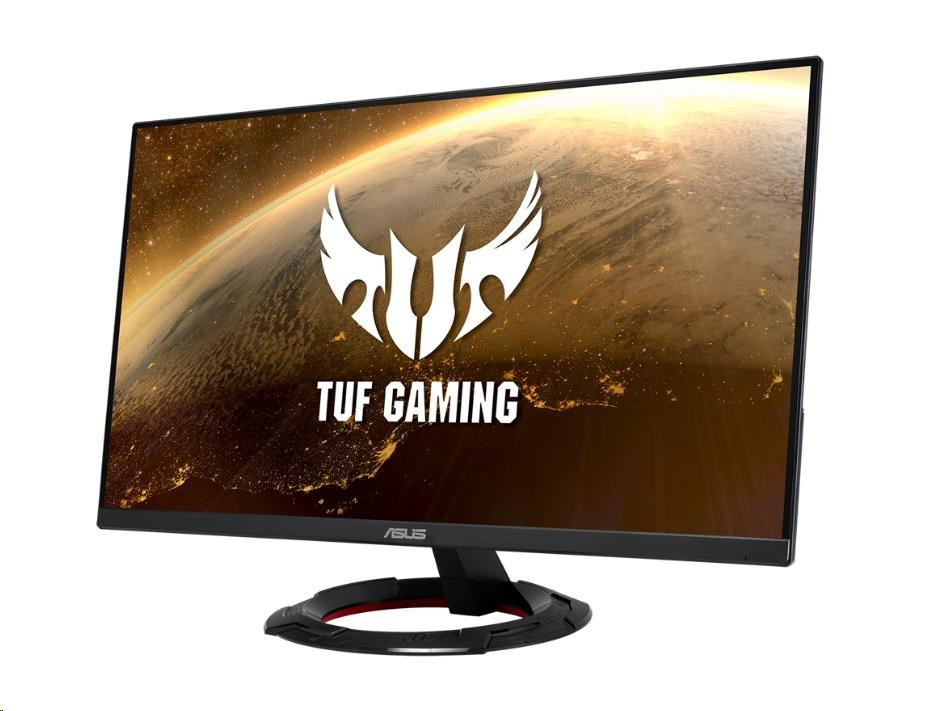

ASUS LCD 23.8" VG249Q1R 1920x1080 2xHDMI DP REPRO TUF Gaming IPS, Overcloc. 165Hz, 1ms MPRT 1ms (MPRT), Shadow Boost
Popis a parametry
ASUS LCD 23.8" VG249Q1R 1920x1080 2xHDMI DP REPRO TUF Gaming IPS, Overcloc. 165Hz, 1ms MPRT 1ms (MPRT), Shadow Boost
https://www.asus.com/Monitors/TUF-Gaming-VG249Q1R/

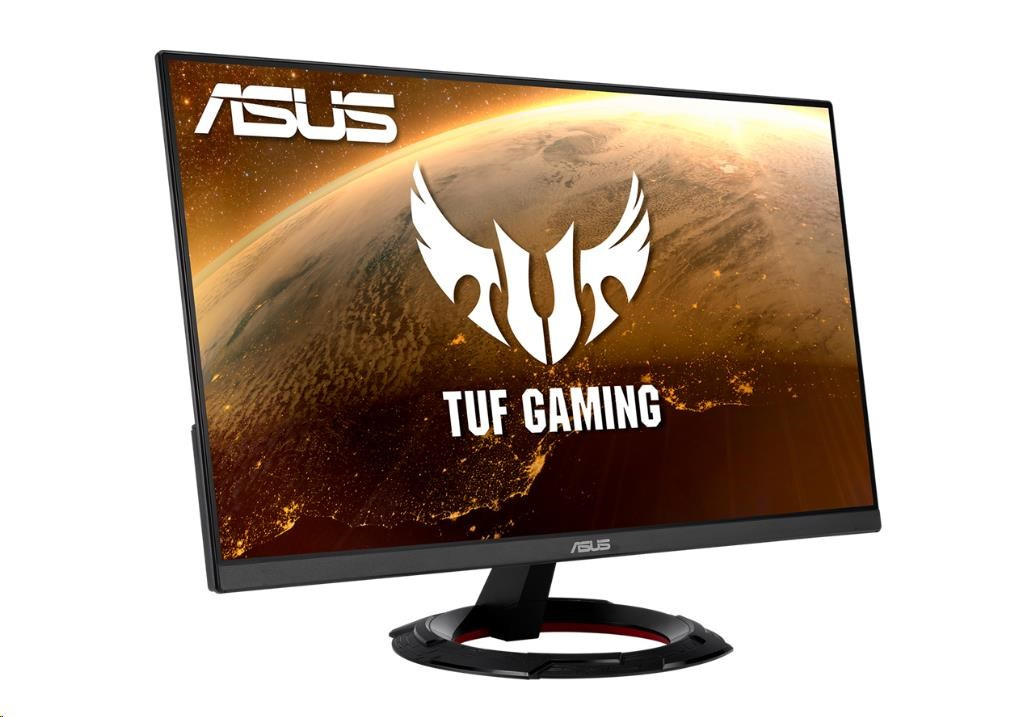

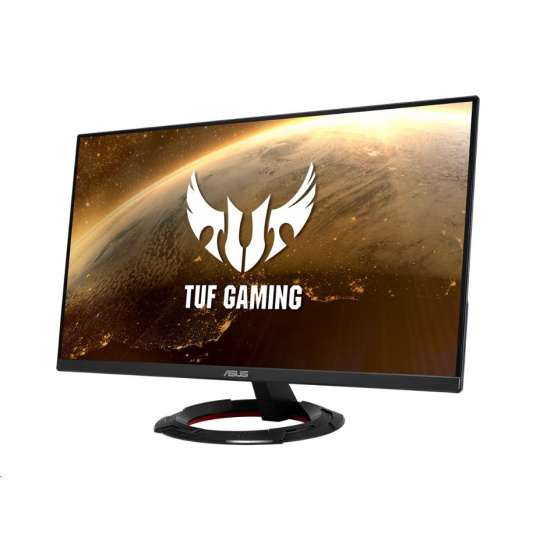

ASUS TUF Gaming VG249Q1R Gaming Monitor – 23.8 inch Full HD (1920 x 1080), IPS, Overclockable 165Hz(Above 144Hz), 1ms MPRT, Extreme Low Motion Blur™, FreeSync™ Premium, 1ms (MPRT), Shadow Boost
Display Panel Size: Wide Screen 23.8"(60.5cm) 16:9
Color Saturation : 72% NTSC
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 527.04 x 296.46 mm
Pixel Pitch : 0.2745 mm
Brightness(Max) : 250 cd/?
Contrast Ratio (Max) : 1000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 1ms MPRT*
Flicker free : Yes
Refresh Rate(max) : 165Hz
Video Feature
Trace Free Technology : Yes
GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter/Display Alignment)
Low Blue Light : Yes
HDCP support : Yes
GameVisual :7 Modes(Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes/MOBA Mode)
FreeSync™ technology supported
Extreme Low Motion Blur
GameFast Input technology
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS

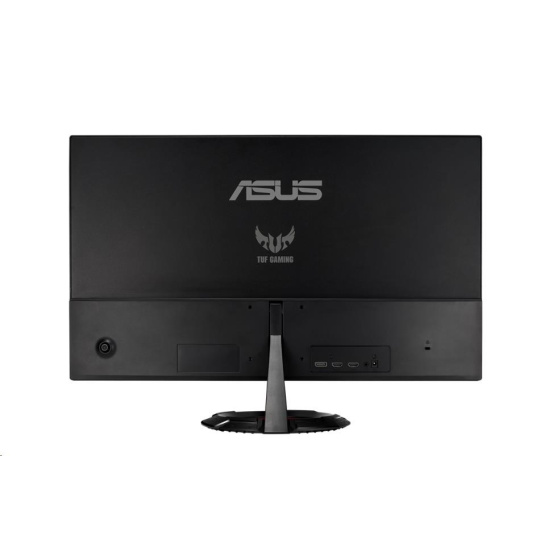

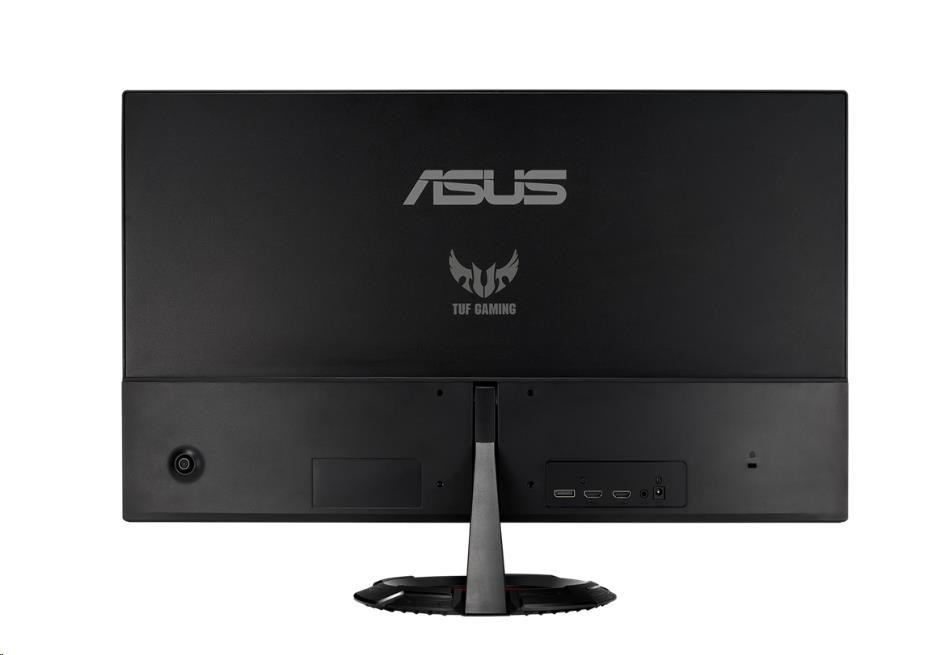

I/O Ports
Signal Input : HDMI(v1.4) x2, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
Signal Frequency
Digital Signal Frequency : DisplayPort:30 ~160 KHz (H) /48 ~165 Hz(V)
HDMI : 30 ~160 KHz (H) /48 ~144 Hz(V)
Power Consumption
Power Consumption: <15 W*
Power Saving Mode: <0.5W
Power Off Mode: <0.3W
Voltage : 100-240V, 50 / 60Hz

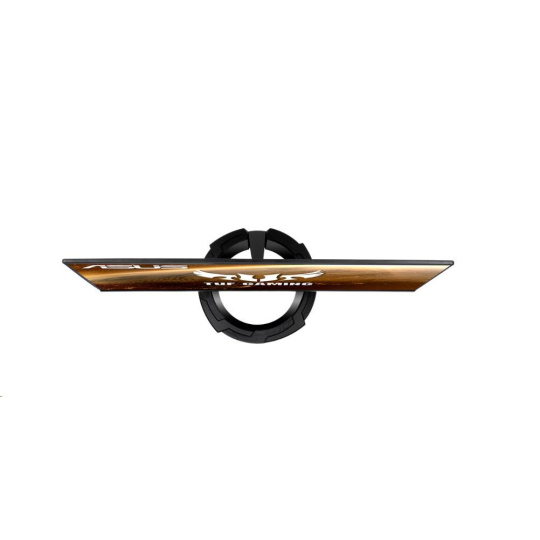

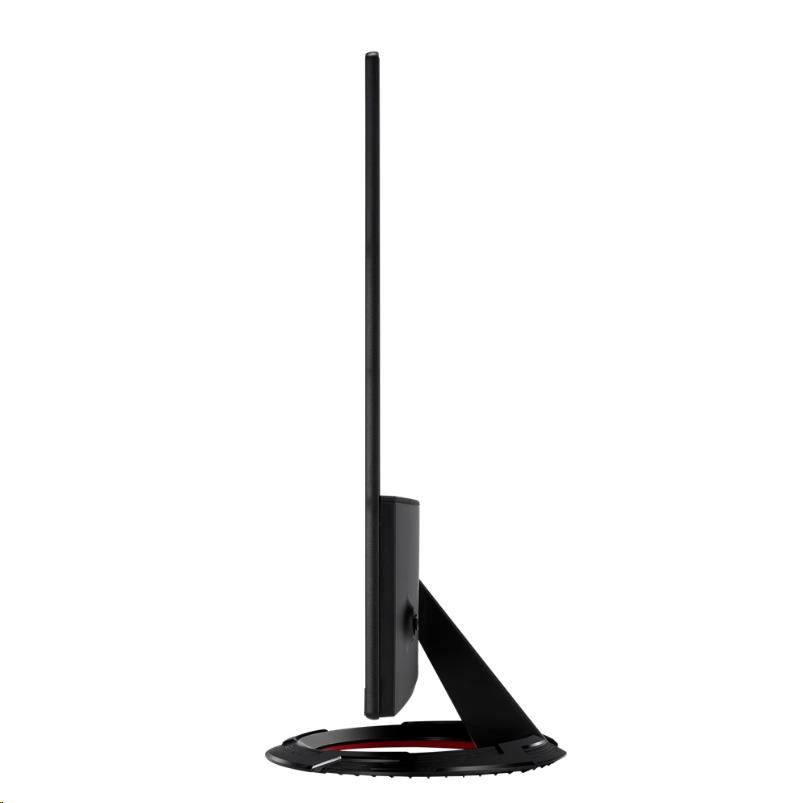

Mechanical Design
Tilt : +22°~-5°
VESA Wall Mounting : 75x75mm
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD):
539.5x406.5x213 mm
Phys. Dimension without Stand (WxHxD):
539.5x319.5x36.5 mm
Box Dimension (WxHxD):
595x158x475 mm
Weight
Net Weight : 3kg; Gross Weight: 5kg
Accessories
Power cord
Power adapter
DisplayPort cable (Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
Note
*1ms MPRT spec is based on internal testes. Response time may vary depending on test conditions
**measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
***Adaptive Sync/FreeSync function can only be activated within “48Hz~144Hz” for HDMI and “48Hz~165Hz” for DP
.
ASUS TUF Gaming VG249Q1R Gaming Monitor – 23.8 inch Full HD (1920 x 1080), IPS, Overclockable 165Hz(Above 144Hz), 1ms MPRT, Extreme Low Motion Blur™, FreeSync™ Premium, 1ms (MPRT), Shadow Boost
Display Panel Size: Wide Screen 23.8"(60.5cm) 16:9
Color Saturation : 72% NTSC
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 527.04 x 296.46 mm
Pixel Pitch : 0.2745 mm
Brightness(Max) : 250 cd/?
Contrast Ratio (Max) : 1000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 1ms MPRT*
Flicker free : Yes
Refresh Rate(max) : 165Hz
Video Feature
Trace Free Technology : Yes
GamePlus(modes) : Yes (Crosshair/Timer/FPS Counter/Display Alignment)
Low Blue Light : Yes
HDCP support : Yes
GameVisual :7 Modes(Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes/MOBA Mode)
FreeSync™ technology supported
Extreme Low Motion Blur
GameFast Input technology
Audio Features
Stereo Speakers : 2W x 2 Stereo RMS
I/O Ports
Signal Input : HDMI(v1.4) x2, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
Signal Frequency
Digital Signal Frequency : DisplayPort:30 ~160 KHz (H) /48 ~165 Hz(V)
HDMI : 30 ~160 KHz (H) /48 ~144 Hz(V)
Power Consumption
Power Consumption: <15 W*
Power Saving Mode: <0.5W
Power Off Mode: <0.3W
Voltage : 100-240V, 50 / 60Hz
Mechanical Design
Tilt : +22°~-5°
VESA Wall Mounting : 75x75mm
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD):
539.5x406.5x213 mm
Phys. Dimension without Stand (WxHxD):
539.5x319.5x36.5 mm
Box Dimension (WxHxD):
595x158x475 mm
Weight
Net Weight : 3kg; Gross Weight: 5kg
Accessories
Power cord
Power adapter
DisplayPort cable (Optional)
Quick start guide
HDMI cable (Optional)
Warranty Card
Note
*1ms MPRT spec is based on internal testes. Response time may vary depending on test conditions
**measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
***Adaptive Sync/FreeSync function can only be activated within “48Hz~144Hz” for HDMI and “48Hz~165Hz” for DP
.
ParametryPorovnání
Povrchová úprava displeje
Matný
Rozlišení displeje
1920x1080 (Full HD)
Rozhraní
HDMI
Rozhraní
DisplayPort
Rozhraní
3.5mm Jack
Výbava
Reproduktory
Výbava
Redukce modrého světla
Výbava
Redukce blikání (flicker-free)
Výbava
FreeSync
Výbava
VESA montáž
VESA rozměry
75x75
Typ panelu
IPS
Úhlopříčka displeje (")
23,8
Obnovovací frekvence displeje (Hz)
165
Kontrast:1
1000
Doba odezvy (ms)
1
Hmotnost (kg)
5
Jas (cd/m2)
250
ASUS LCD 23.8" VG249Q1R 1920x1080 2xHDMI DP REPRO TUF Gaming IPS, Overcloc. 165Hz, 1ms MPRT 1ms (MPRT), Shadow Boost
