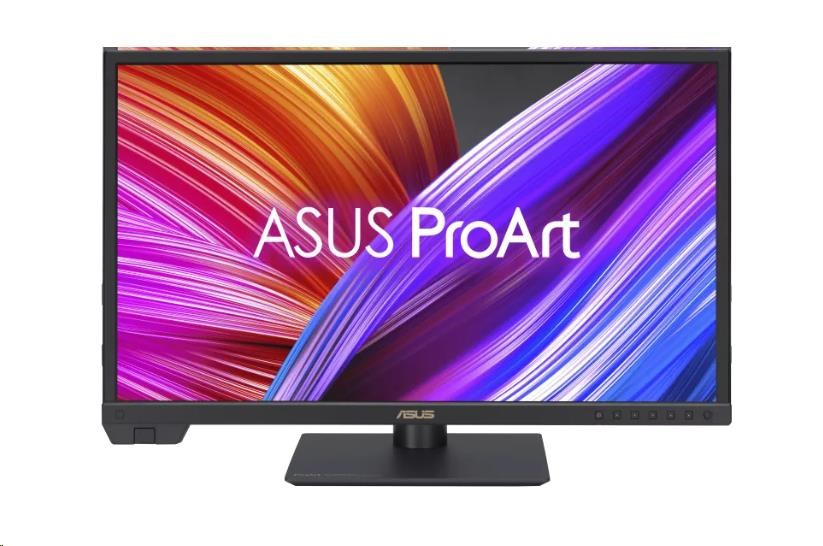

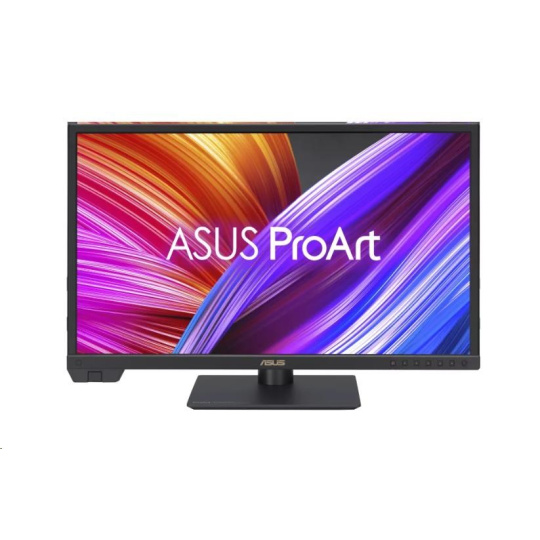

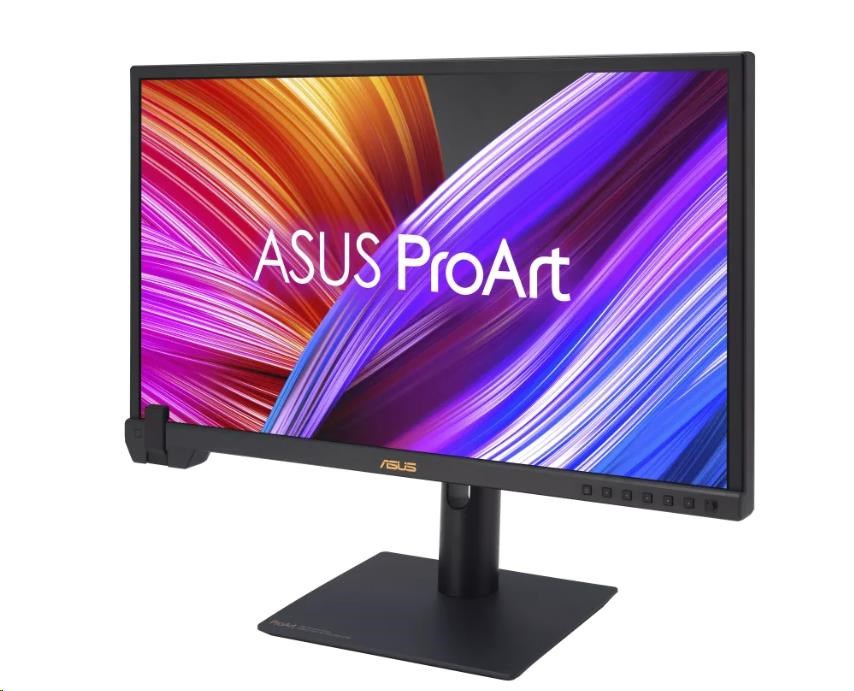

ASUS LCD 23.6" PA24US ProArt IPS 4K UHD 3840 x 2160 Self / Auto Calibration HDR-10 HLG 99% Adobe RGB 95% USB-C PD 80W
ASUS LCD 23.6" PA24US ProArt IPS 4K UHD 3840 x 2160 Self / Auto Calibration HDR-10 HLG 99% Adobe RGB 95% USB-C PD 80W

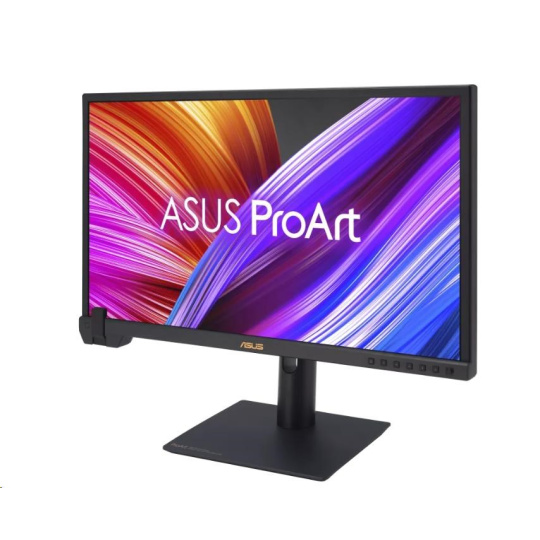

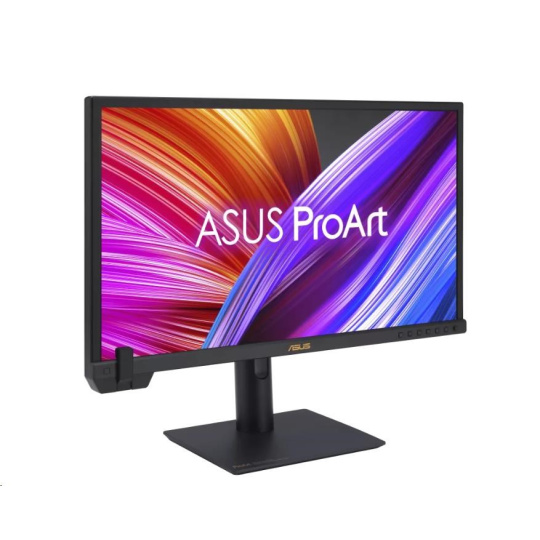

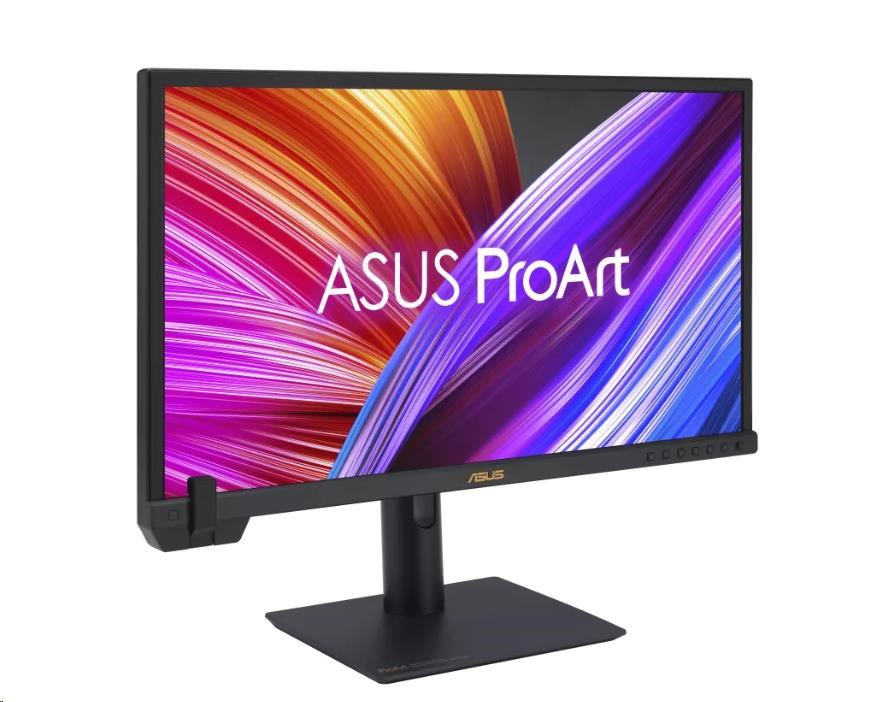

ASUS ProArt Display PA24US Professional Monitor
Display
Panel Size (inch) : 23.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 522.43 x 293.87 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR?10, H/V) : 178°/ 178°
Pixel Pitch : 0.135mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (Adobe RGB) : 99%
Color Space (DCI-P3) : 95%
Brightness (HDR, Peak) : 600 cd/?
Brightness (Typ.) : 350cd/?
Contrast Ratio (HDR, Max) : 1,000,000:1
Contrast Ratio (Typ.) : 1000:1
Display Colors : 1073.7M (10 bit)
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
HDR (High Dynamic Range) Support : HLG
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature
Trace Free Technology : Yes
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 2020
ProArt Preset : DICOM
ProArt Preset : Rec. 709
ProArt Preset : HDR_PQ DCI
ProArt Preset : HDR_PQ Rec2020
ProArt Preset : HDR_HLG
ProArt Preset : HDR_HLG BT2100
ProArt Preset : HDR_HLG DCI
ProArt Preset : User mode1
ProArt Preset : User mode2
ProArt Preset : User mode3
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : ?E< 1
ASUS ProArt Hardware Calibration : Yes
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
VRR Technology : Yes (Adaptive-Sync)
Motion Sync : Yes
HDR Preview : Yes
Low Blue Light : Yes
Multiple HDR Mode : Yes
Audio Feature
Speaker : Yes(2Wx2)
I/O Ports
12G-SDI x 1
USB-C x 1 (DP Alt Mode)
DisplayPort 1.4 x 1
HDMI(v2.0) x 2
USB Hub : 2x USB 3.2 Gen 1 Type-A
Earphone Jack : Yes
USB-C Power Delivery : 80W
Signal Frequency
Digital Signal Frequency : 15~135 KHz (H) / 48~60 Hz (V)
Power Consumption
Power Consumption : <24.1W
Power Saving Mode : <0.5W
Power Off Mode : 0W (hard switch)
Voltage : 100-240V, 50/60Hz

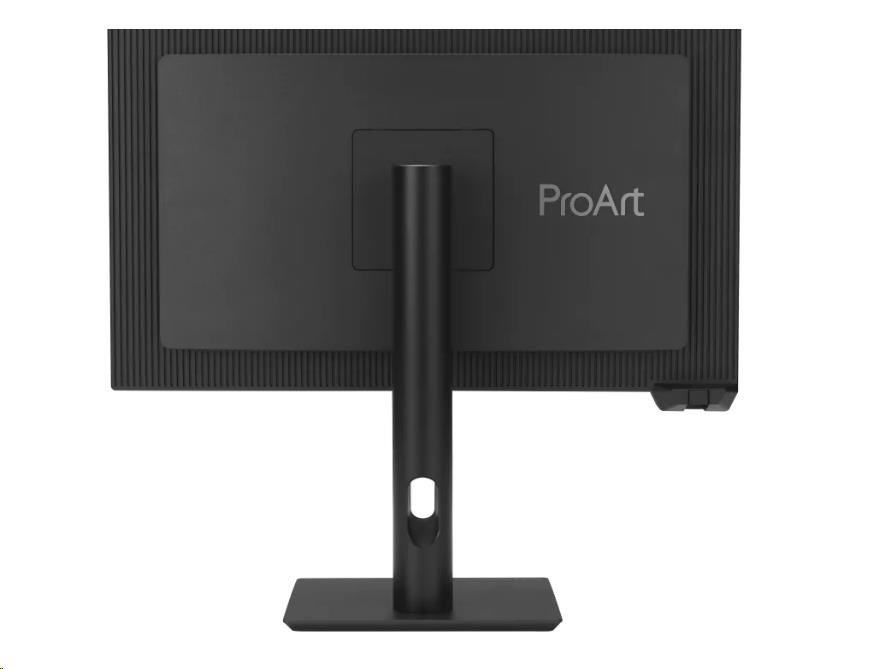

Mechanical Design

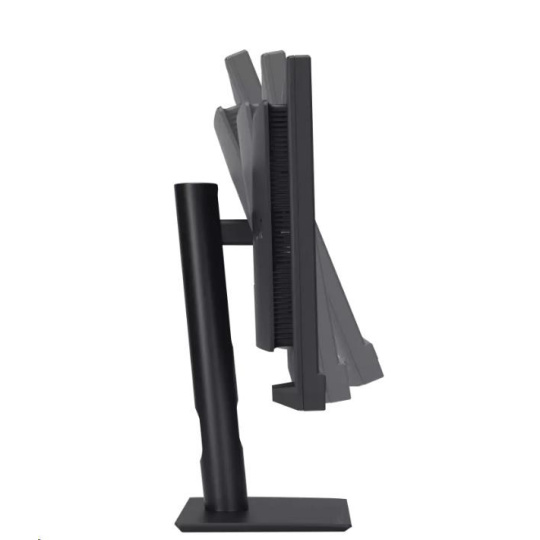

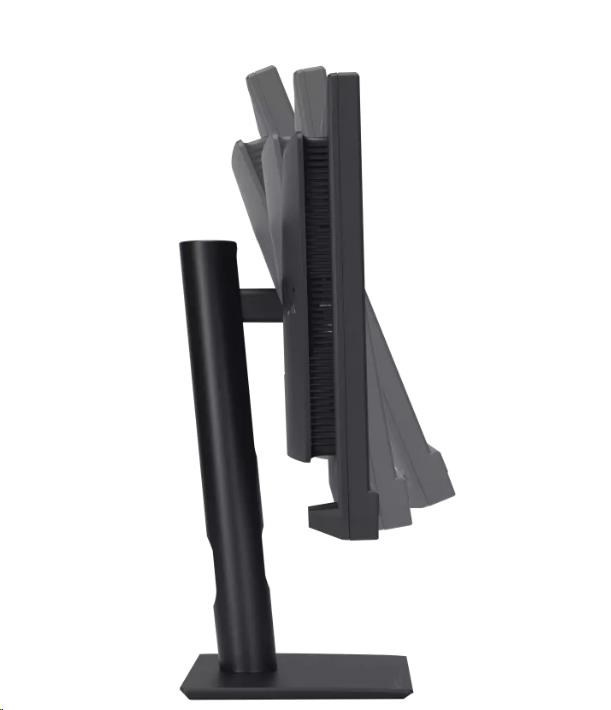

Tilt : Yes (+21° ~ -3°)
Swivel : Yes (+30° ~ -30°)

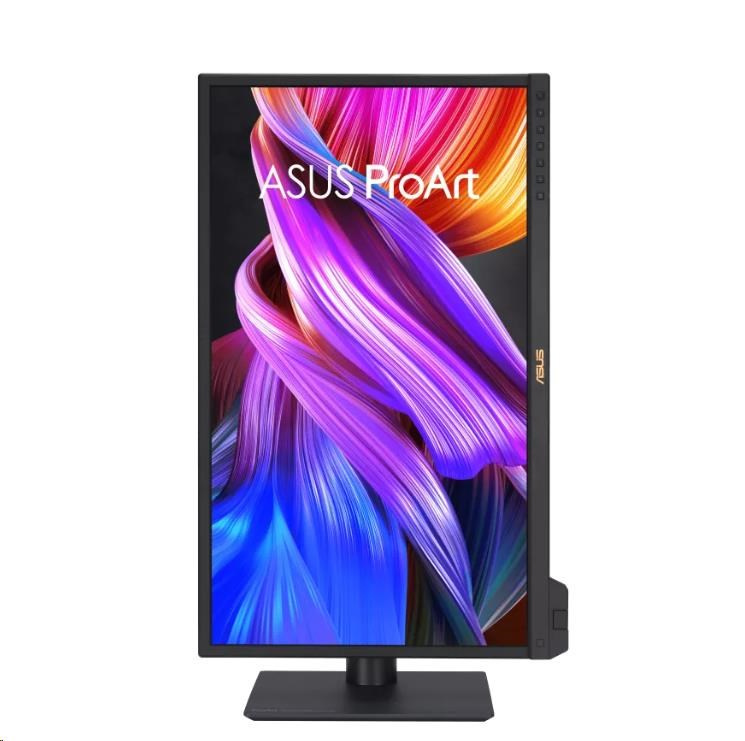

Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
Embedded Colorimeter : Yes (Support Self-Calibration)
Ambient Light Sensor : Yes

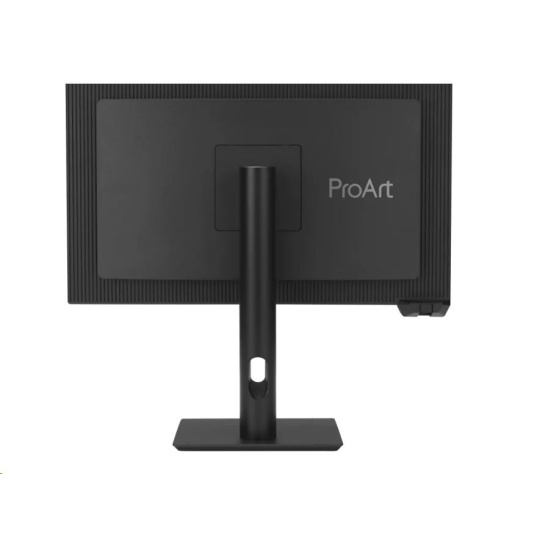

VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 54.9 x 52.1 x 19.0 cm (21.61" x 20.51" x 7.48")
Phys. Dimension without Stand (W x H x D) : 54.9 x 34.6 x 6.3 cm (21.61" x 13.62" x 2.48")
Box Dimension (W x H x D) : 76.1 x 15.2 x 47.9 cm (29.96" x 5.98" x 18.86")
Weight (Esti.)
Net Weight : 6.00 kg (13.23 lbs)
Net Weight without Stand : 4.30 kg (9.48 lbs)
Gross Weight : 9.70 kg (21.38 lbs)
Accessories (vary by regions)
Color pre-calibration report
DisplayPort cable
HDMI cable
Power cord
Quick release stand
Quick start guide
USB-C cable
Warranty Card
Welcome Card
Certificate
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 600
Calman Ready
