ASUS LCD 22" MB229CF ZenScreen FHD 1920 x 1080 IPS technology 100Hz USB-C PD 60W HDMI REPRO sub-woofer 2.1 channel audio
ASUS LCD 22" MB229CF ZenScreen FHD 1920 x 1080 IPS technology 100Hz USB-C PD 60W HDMI REPRO sub-woofer 2.1 channel audio

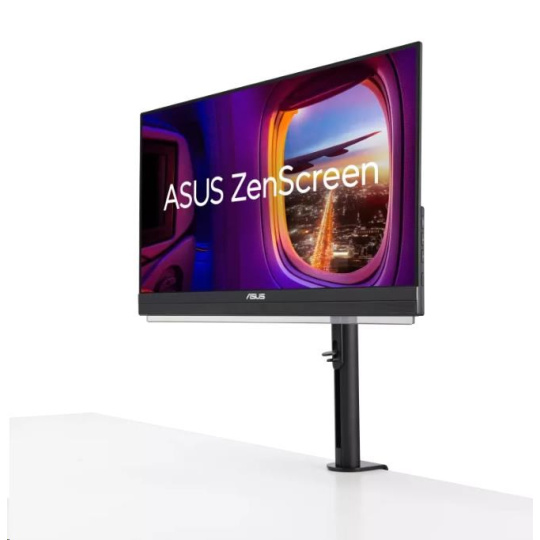

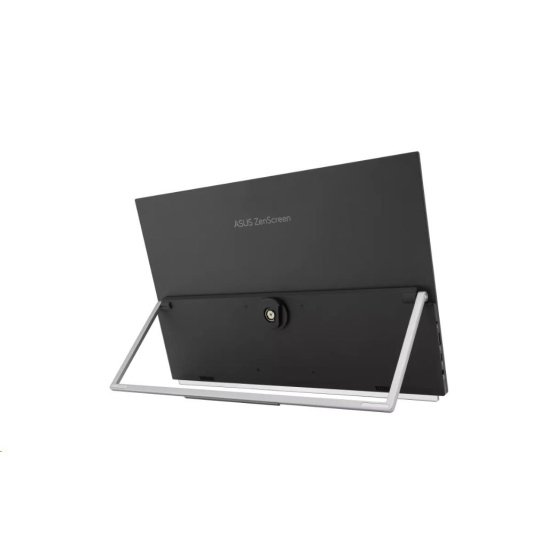

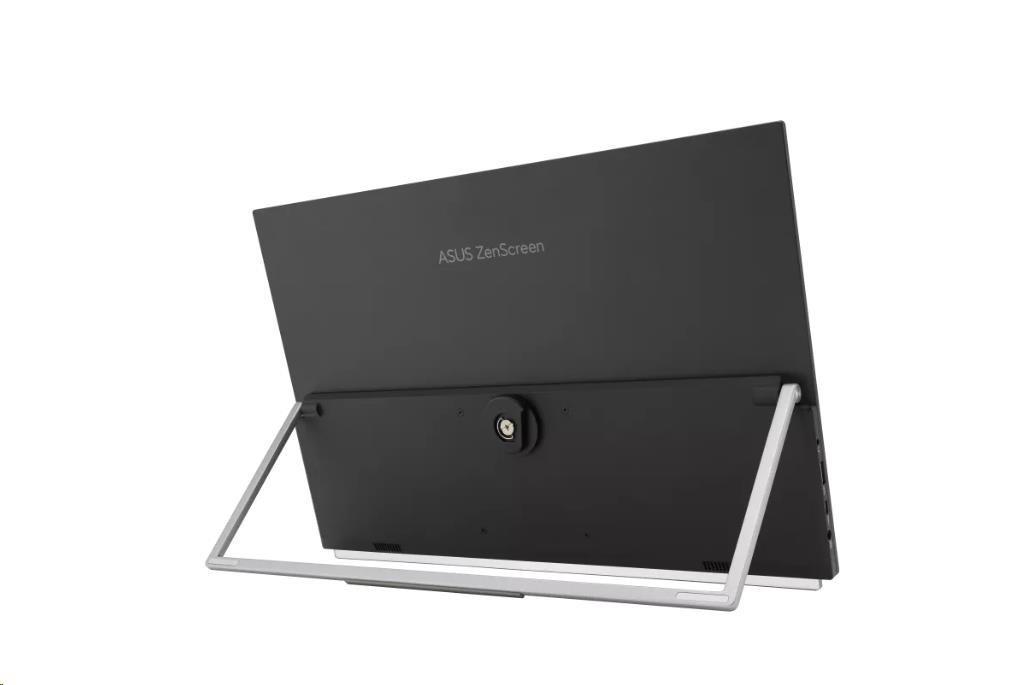

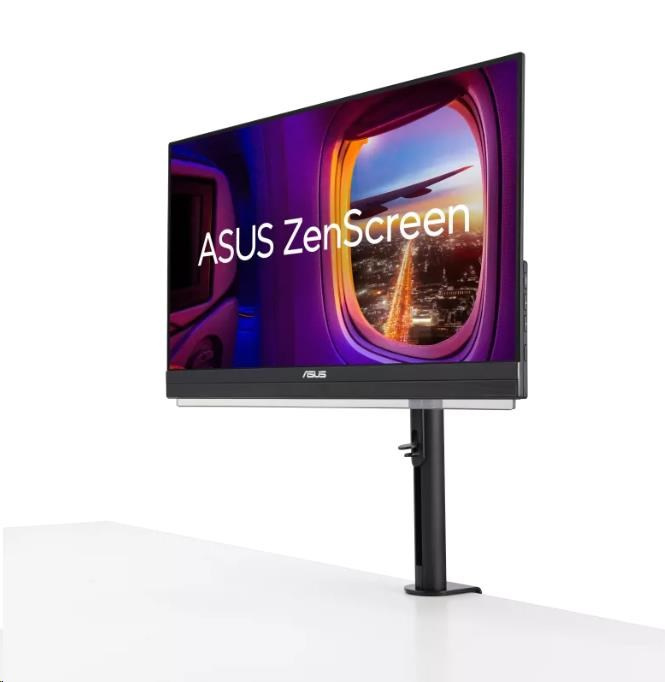

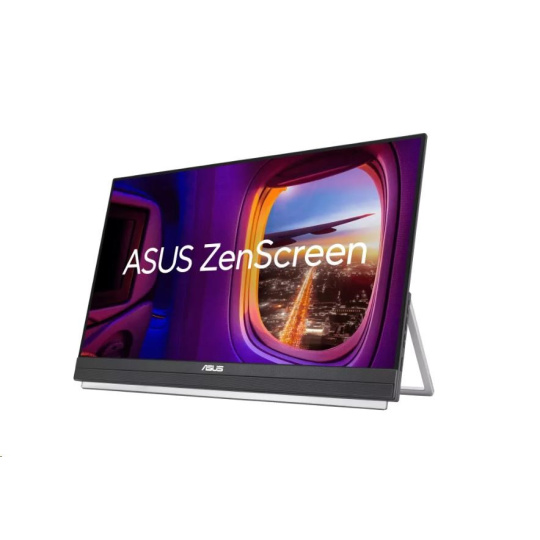

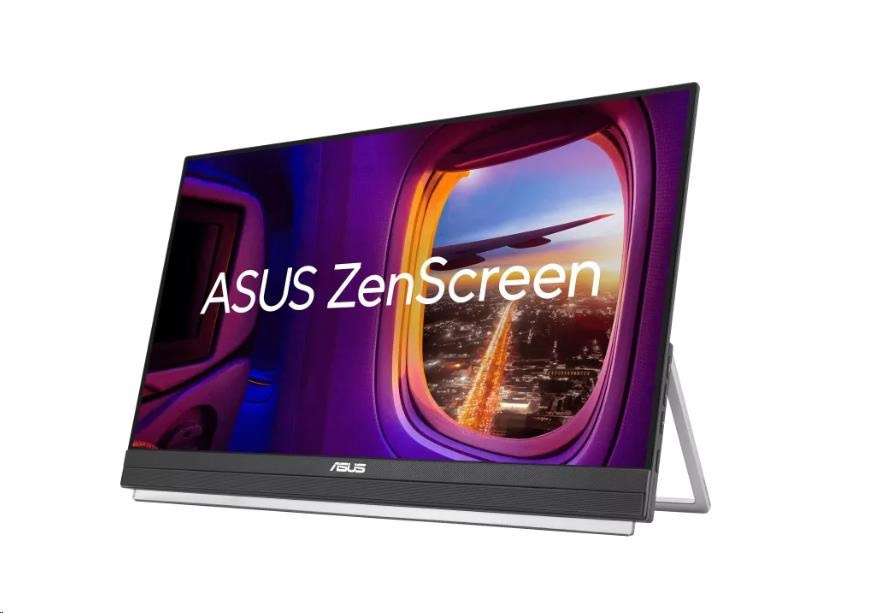

ASUS ZenScreen MB229CF portable monitor
Display
Panel Size (inch) : 21.5
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 476.06(H) x 267.79(V)
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR?10, H/V) : 178°/ 178°
Pixel Pitch : 0.248mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/?
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 100Hz
Flicker-free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
GameFast Input technology : Yes
Shadow Boost : Yes
DisplayWidget : Yes, DisplayWidget Center
Low Blue Light : Yes
Audio Feature
Speaker : Yes, 2.1 channel
Woofer : Yes(1.5W)
I/O Ports
USB-C x 1 (DP Alt Mode)
HDMI(v1.4) x 1
Earphone Jack : Yes
USB-C Power Delivery : 60W
Signal Frequency
Digital Signal Frequency : HDMI: 30~111KHz(H)/ 48~100Hz(V)
TYPE-C: 30~111KHz(H)/ 48~100 Hz(V)
Power Consumption
Power Consumption : 13W
Power Saving Mode : <0.5W
Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (+20° ~ -5°)
Swivel : Yes (+90° ~ -90°)

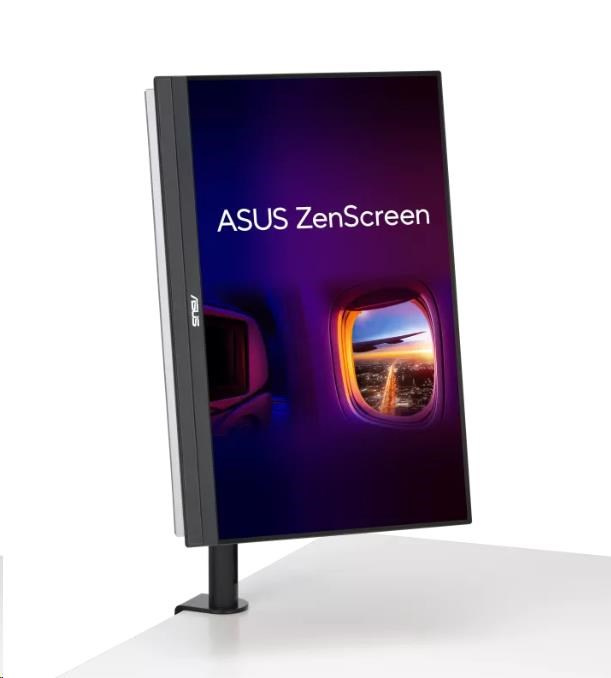

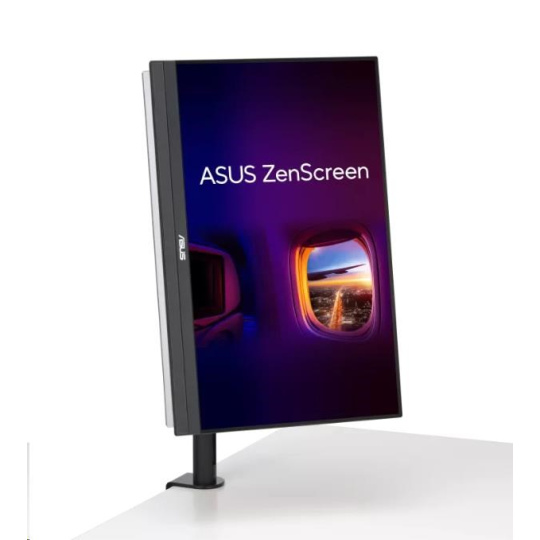

Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~180mm
Z-axis Adjust.:Extend / Retract 0~144mm
VESA Wall Mounting : 100x100mm
1/4" Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension (W x H x D) : 48.7 x 72.2 x 30.1 cm (19.17" x 28.43" x 11.85")
Phys. Dimension without Stand (W x H x D) : 48.7 x 31.8 x 2.2 cm (19.17" x 12.52" x 0.87")
Box Dimension (W x H x D) : 54.7 x 39.8 x 12.9 cm (21.54" x 15.67" x 5.08")
Weight (Esti.)
Net Weight : 4.0 kg (8.82 lbs)
Net Weight without Stand : 2.2 kg (4.85 lbs)
Gross Weight : 6.0 kg (13.23 lbs)
Accessories (vary by regions)

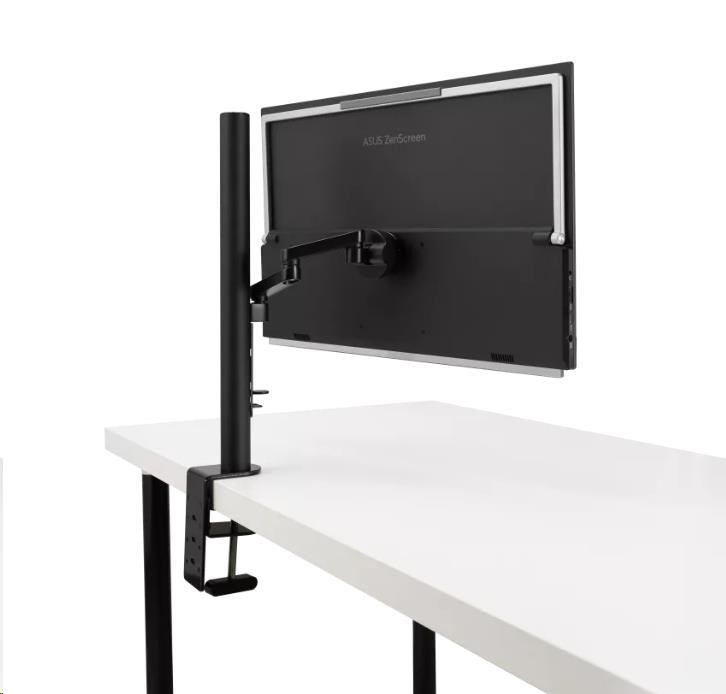

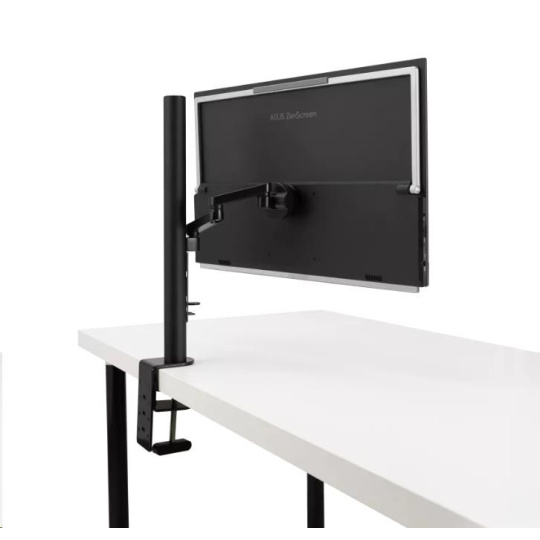

C-Clamp Arm
HDMI cable
L-shaped Screwdriver
Partition hook
Power adapter
Power cord
Quick start guide
USB-C cable
Warranty Card
Certificate
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
FSC MIX
