ASRock MB Alder Lake-N N100M, Intel N100, 1xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

Formát základní desky:micro ATX; Chipset:Intel; Pro procesory:Integrovaný procesor; Technologie paměti RAM:DDR4; Počet paměťových slotů:1; M.2 slot:1; SATA 3:2; Podpora RAID:Bez RAID podpory; PCI Express x16:1; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:8; USB 3:4; USB C:1; TPM; 3.5mm Jack.... více
3 011.57 Kč bez DPH
Na dotaz
3 644 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 380942
Kód dod.: N100M
EAN: 4710483943058
Záruka: 36 Měsíc(ů)
Výrobce: ASRock
Popis a parametry

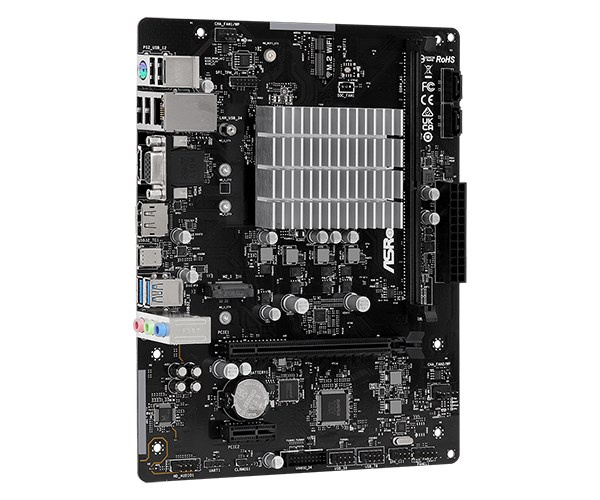

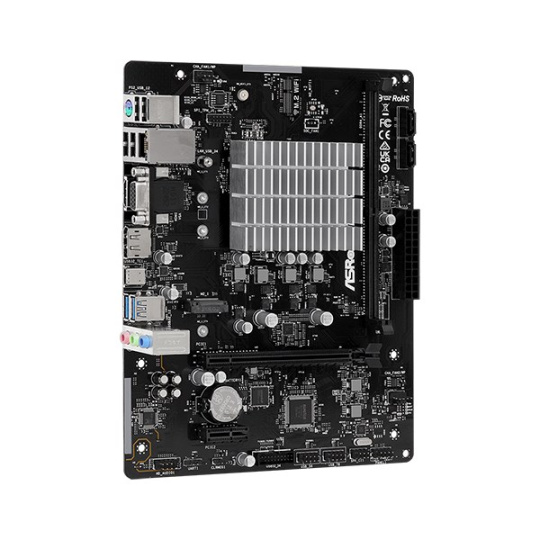

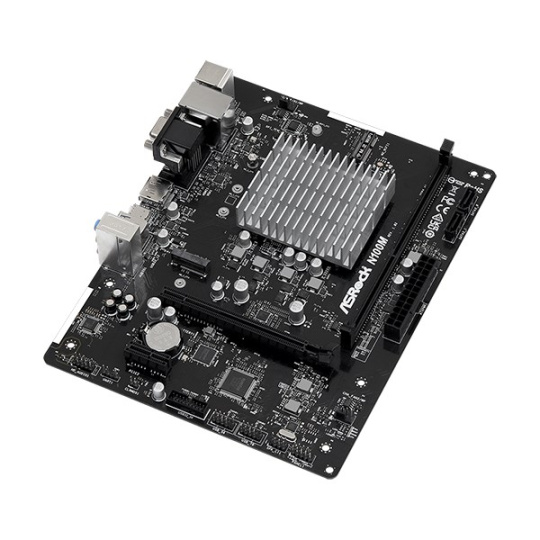

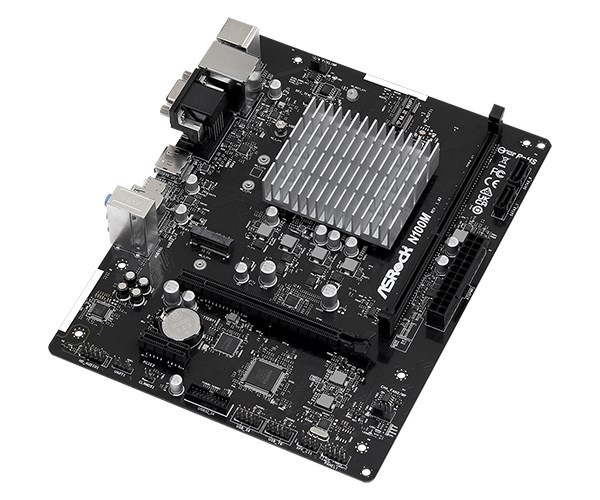

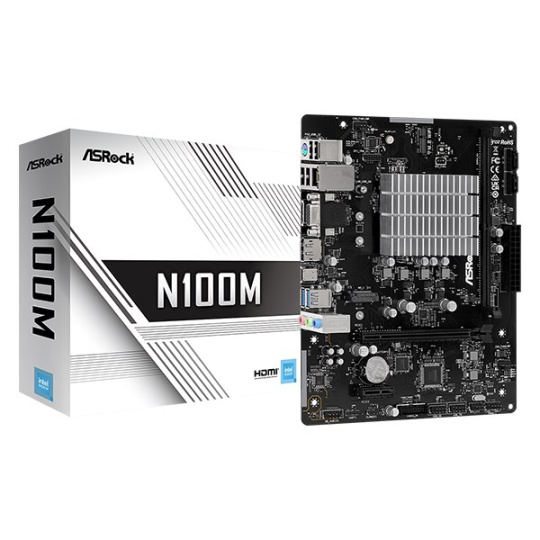

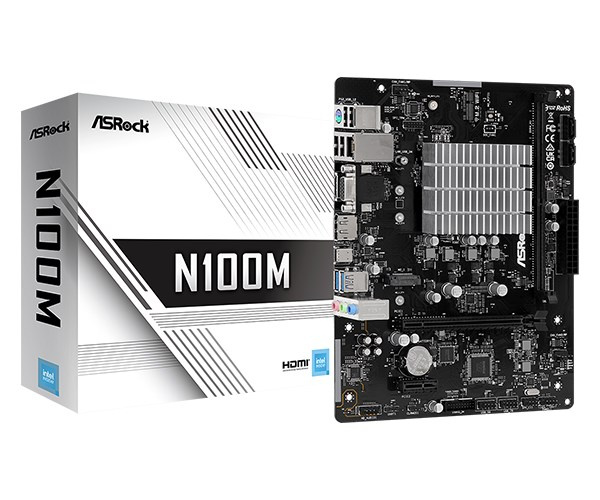

ASRock MB Alder Lake-N N100M, Intel N100, 1xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

ASRock N100M

  • Intel® Quad-Core Processor N100 (up to 3.4 GHz)
  • Supports 1 DDR4 DIMM
  • 1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: D-Sub, HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 2 SATA3, 1 M.2 (PCIe Gen3x2)
  • 1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer

The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.


CPU

- Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel® Turbo Boost Technology



Memory

- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB



Graphics

- Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz



Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)



LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H



Slots

- 1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode
- 1 x PCIe 3.0 x1 Slot (PCIE2)
- 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT)



Storage

- 1 x M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors



USB

- 1 x USB 3.2 Gen2 Type-C (Rear)
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)



Internal Connector

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

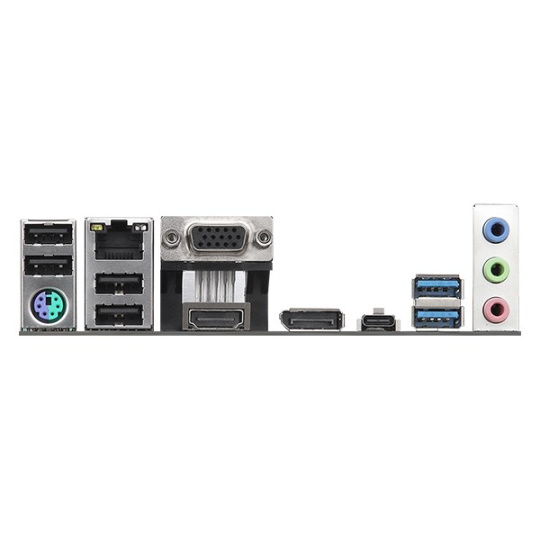

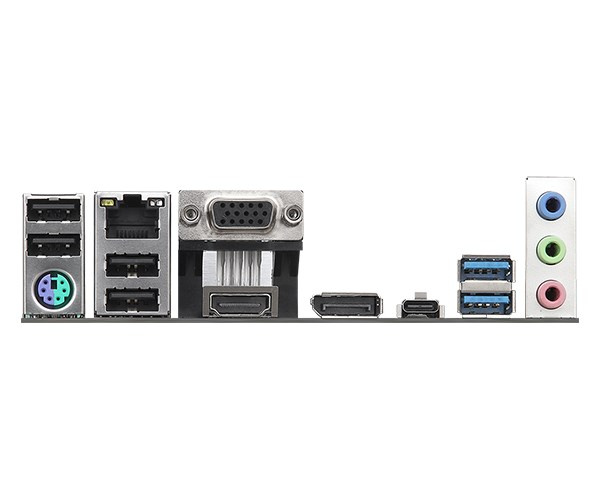

Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone



Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash



Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets



Form Factor

- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
- Solid Capacitor design



OS

- Microsoft® Windows® 10 64-bit / 11 64-bit



Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)



BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support



Unique Feature

Rock-Solid Durability
- 2+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker


.
ParametryPorovnání
Technologie paměti RAM
DDR4
Formát základní desky
micro ATX
Chipset
Intel
PCI Express x16
1
Podpora RAID
Bez RAID podpory
COM port
Ne
LPT port
Ne
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
Integrovaný procesor
Počet paměťových slotů
1
DisplayPort
1
TPM
Ano
USB 2
8
USB 3
4
PCI
0
M.2 slot
1
SATA 3
2
VGA
1
DVI
0
HDMI
1
Led Header
Ne
PCI Express x1
1
USB C
1
LAN
1Gbit/s
