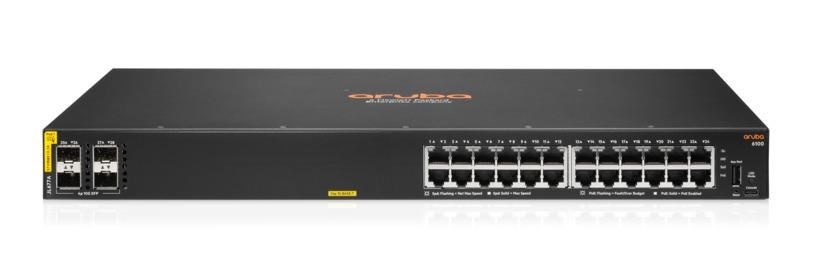

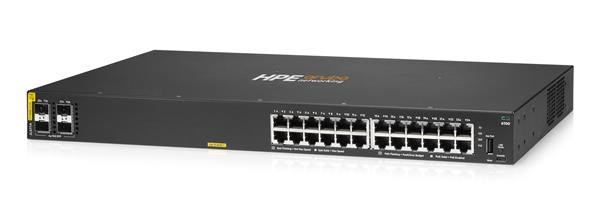

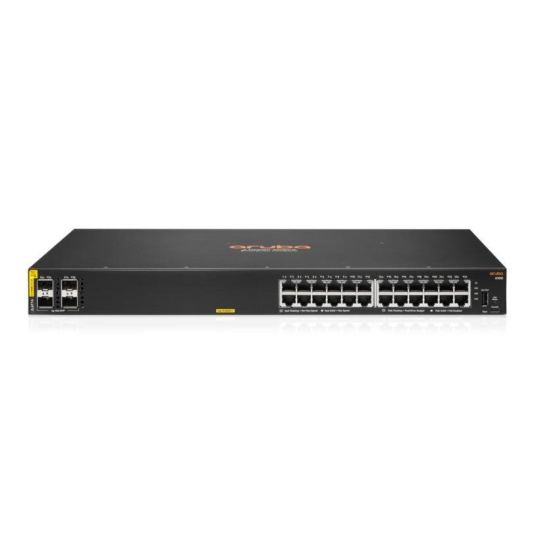

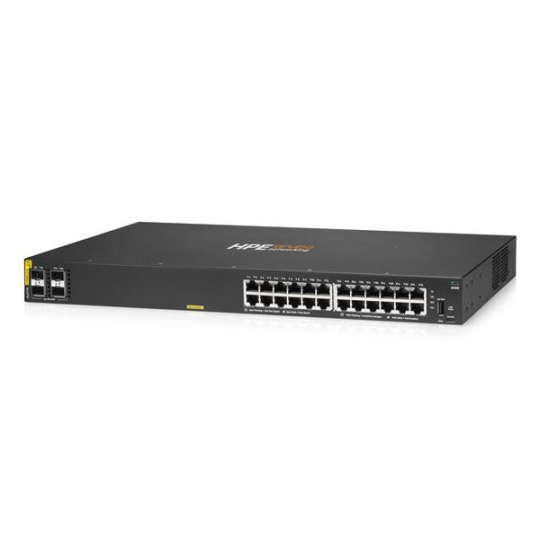

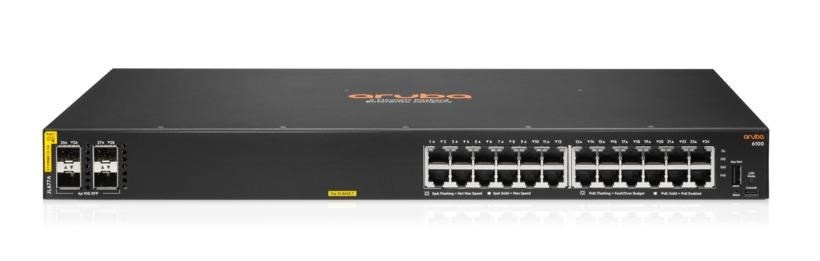

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEW
Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEW
Řada přepínačů Aruba CX 6100 je moderní rodina přístupových přepínačů základní úrovně ideální pro pobočky, střední podniky a sítě SMB. Přepínače Aruba CX 6100, navržené pro spolehlivý, jednoduchý a bezpečný přístup, poskytují pohodlné řešení kabelového přístupu pro podnikové sítě podporující IoT, mobilní a cloudové aplikace.
Technické parametry
- 24x 10/100/1000Base-T porty
- 4x 1/10G SFP porty
- 1x USB-C Console Port, 1x USB Type-A Host port
- Interní (pevný) napájecí zdroj (500 W), pevné ventilátory
- Maximální výkon: 32,7 W bez PoE, 455 W s PoE
- Vstupní napětí: 100-127 VAC / 200-240 VAC
- Přepínací kapacita: 128 Gb/s
- Propustnost: 95,2 Mpps
- Procesor: Dual Core ARM Cortex A9 @ 1016 Mhz
- Paměť a Flash: 4 GB DDR3, 16 GB eMMC
- Možnost PoE: Až 370W Class 4 PoE
- Rozměry: 4,39 x 44,2 x 26,82 cm
- Hmotnost: 4,2 kg
| Specifications | Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| Description | 24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply (500W) Up to 370W of Class 4 PoE Power |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73" x 17.4" x 10.56") |
| Configuration Weight | 4.19kg (9.24 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Performance | |
| Model Switching Capacity | 128 Gbps |
| Model Throughput Capacity | 95.2 Mpps |
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.5 µSec , 10 Gbps: 1.8 µSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) | |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB |
| Primary Airflow | Side-to-side |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 4.6 A / 2.3 A |
| Power Consumption (230 VAC) | Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W |
| Safety | |
| UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 | |
| Emissions | |
| VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
| Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) | |
| Lasers | |
| EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) | |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | |
| Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | |
